Products – Hydraulic Drum Stacker

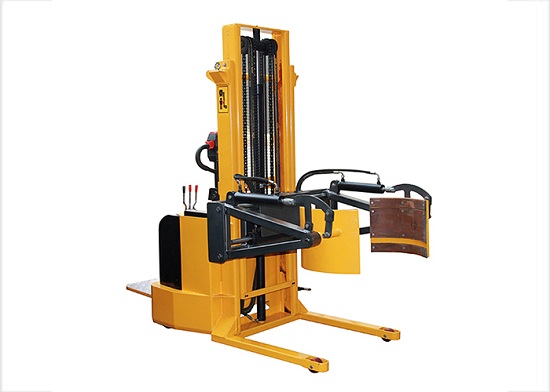

Name:YL600 Full Electric Drum Handler
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Pallet Truck
Pallet Tilter
Hoisting And Lifting Equipment
Reel & Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

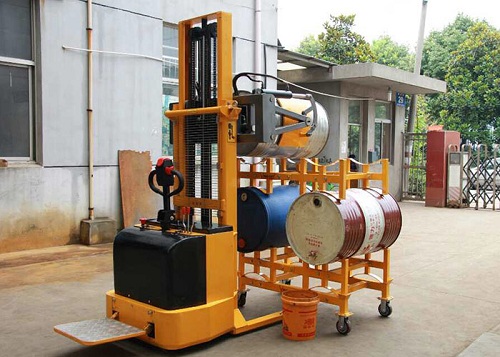

The Full electric drum Dumping Truck make easy tasks of handling plastic, fibre and steel drums. This is the most ergonomic equipment available for transporting, manipulating, weighing and dispensing drums, with models suitable for most applications.
The Dumping Trucks are designed to work in tightly confined production areas. The large industrial battery provides enough power to run continuously for a 2-shift operation without recharging.
Capable of removing or placing drums from pallets, pallet racking, cabinets, spill pallets and conveyors as well as dispensing by weight eliminates the need for several pieces of equipment in congested production areas.
- Include safety covered gears for your protection
- Have durable stress-relief weld joints for years of service
- Power-drive wheels plus full-function hydraulic lift and pour means any operator can move drums. Eliminate operator effort in moving 600kg/1,200 lbs. loads, while reducing injury rates from heavy handling by more than 50%.
- A powered drum handler can provide substantial cost savings by eliminating the need for forklifts, and feature fully adjustable and programmable controls with 1 - 2.5 mph speed controls.
- Exclusive auto grip lock will not drop a drum;
- Units easily handle grades up to 5 degrees.

Specifications:
Model



YL600
Drive Type



Full Electric
Operating Type



Walkie
Rated Load Capacity
kg
600
Drum Size



30 gallon (Ø450x700), 55 gallon (Ø572x900) steel, 210L plastic
Lifting Height
mm
2400
Turning Radius
mm
1500
Max. Grade ability (Fully-loaded/no-loaded)
%
3/5
Driving Wheel Size
mm
Ø250*80
Tire



Polyurethane
Controlling Type



Electromagnetic brake
Drive Motor Power
KW
1.2
Lifting Motor Power
KW
2.2
Noise Level
db(A)
<70
Battery
V/Ah
24/210
Charger
V/A
24/30
Rotating Range (degree)
°
140°
Overall Size
mm
2270x1170x1860
Net Weight
kg
890
