Name:YL350 Semi-electric Drum Stacker
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
 Drum Tipping Stacker
 Full Electric Drum Adopter
 High Postion Drum Rotating Crane
 Drum Handler
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

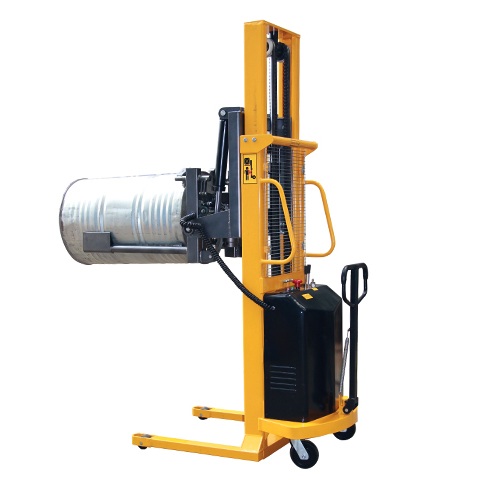

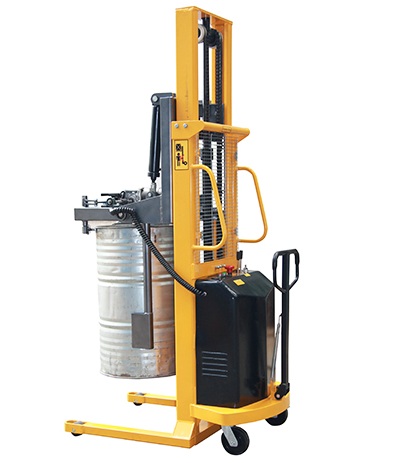

Special design for handling all size of drums.All electric control, ideal for lifting, rotating and stacking drum or other round goods such as paper roll and move drums on and off racks, pallets, trucks, etc;Equipped with VARTA maintenance-free batteryLift an upright drum and place in horizontal position;To rack your 55-gallon steel or plastic drum with bottom rim up to 1500mm;Electric clamping and hydraulic rotation;Lift an upright drum and place in horizontal position on and off racks, pallets, trucks, etc;

Specifications:

Model



YL350
Rated Load Capacity
kg
350
Drum Size



55 gallon (Ф572×900) steel
Wheel Size
mm
Ф80x55 (Front)
Ф150x50 (Rear)
Inside/Outside Width of Support Leg
mm
640 (inside)
800 (outside)
Turning Radius
mm
1500
Pump Station Power
Kw/h
1.5
Battery
Ah/V
120Ah/12V
Lifting Height
mm
1250 (upright drum)
2000 (horizontal drum)
Lifting Speed
mm/s
120
Overall size
mm
1250x840x2200
Net weight
kg
410
