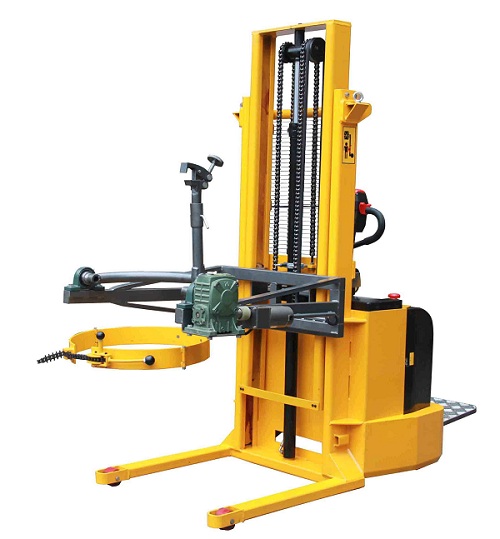

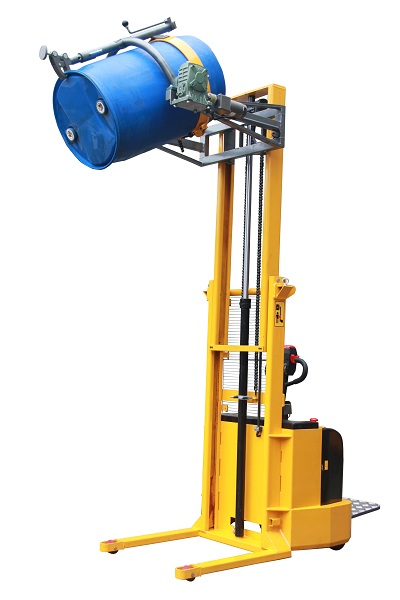

Name:YL600A Full Electric Hydraulic Drum Dumper
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
 Mechanical Drum Dumper
 Manual Hydraulic Drum Dumper
 Semi-Electric Hydraulic Drum Dumper
 Full Electric Hydraulic Drum Dumper
 Pneumatic and Other Drum Dumper
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
Power drive, lift and tilt for ergonomic 55 steel drums and 200L plastic drums pouring;
Imported electrical vehicle exclusive walking control system;
Can be operated by one people, labor saving and high work efficiency;
The matched intelligent charger provides a more safe and convenient usage, needn’t the special inspection during whole charging process;

Specifications:
Model



YL600A
Drive type
/
Full Electric
Operating type
/
Standing operation
Rated load capacity
kg
600
Lifting height
mm
2350
Turning radius
mm
1910
Max. Grade ability (laden/unladen)
%
3/5
Driving wheel size
mm
Ø250*80
Wheels
/
Polyurethane
Controlling type
/
Electromagnetic braking
Drive motor power
kw
1.2
Lifting motor power
kw
2.2
Noise level
db(A)
<70
Battery voltage/capacity
V/Ah
24/210
Charger
V/A
24/30
Net weight
kg
680
Rotating range
°
360°

Previous:DTF300 Semi-Electric Hydraulic Drum DumperNext:YL400 Portable Drum DumperReturn
