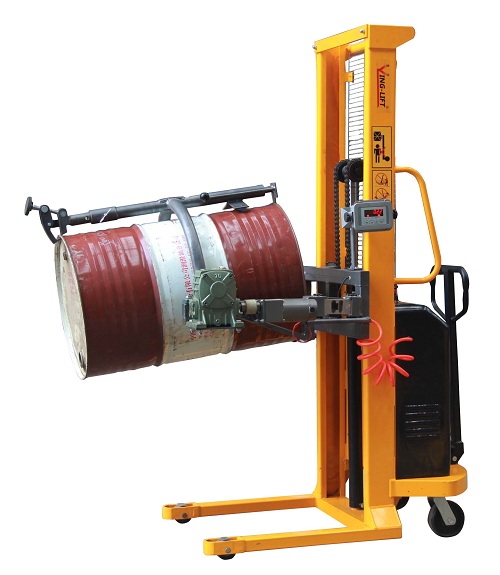

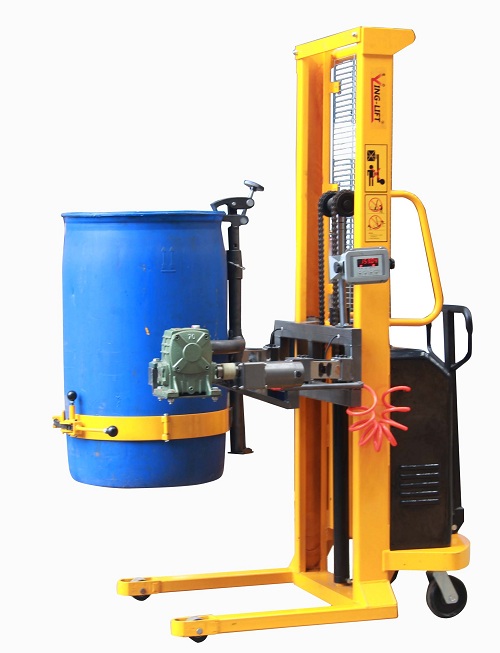

Name:YL520-1 Semi-Electric Hydraulic Drum Dumper with Scale
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Pallet Truck
Pallet Tilter
Hoisting And Lifting Equipment
Reel & Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
 01 Mechanical Drum Dumper
 02 Drum Stacking Tilter Dumper
 03 Manual Hydraulic Drum Dumper

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
Unique multi-function: Lifting, carry, turnover, dumping, easily and safety operate.
♦ Tightly lock oil drum at horizontal or vertical position by left and right locking handles
so that it will be dumped easily or free of overflow.
♦ A combination of system to ensure that the mouth airfield effective fixation.
♦ Oil drum carrier is of simple-and-light-structure design and be combined with Eagle-grip
and Anchor ear structure which is fit for operating with steel oil drum and PE oil drum, easy to operate and saves effort.
♦ With electronic scale built-in YL520-1; operational functions include: ZERO, TARE and weighting, of accuracy: ±3‰.

Specifications:

Model



YL520-1
Loading weight
kg
520
Drum size



55 gallon ( (Ø572x900) steel, 210L plastic
Lifting Height
mm
1600
Wheel Dimension
mm
Ø80x55/Ø150x50
Inner/Outer Width of Front Leg
mm
640/800
Turning Radius
mm
1620
Pump Unit Power
KW/h
1.5
Battery Parameter
Ah/V
120/12
Lifting Speed
mm/s
120
Outline Dimension (LxWxH)
mm
1400*980*2080
Net weight
kg
269
