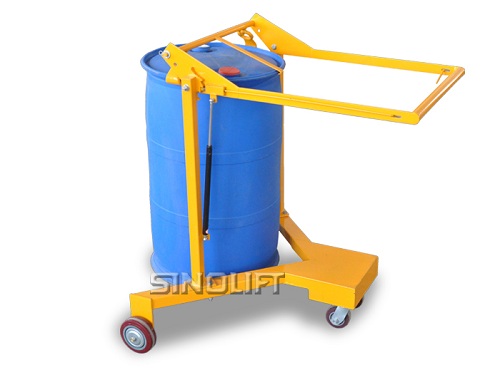

Name：HD80 Drum Carrier
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
 Mechanical Drum Dumper
 Manual Hydraulic Drum Dumper
 Semi-Electric Hydraulic Drum Dumper
 Full Electric Hydraulic Drum Dumper
 Pneumatic and Other Drum Dumper
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：
1. Integrated functions of lifting, transporting, rotating and pouring, easy and convenient to operate.
2. Hoop-type structure which is fit for operating with steel oil drum and PE oil drum.

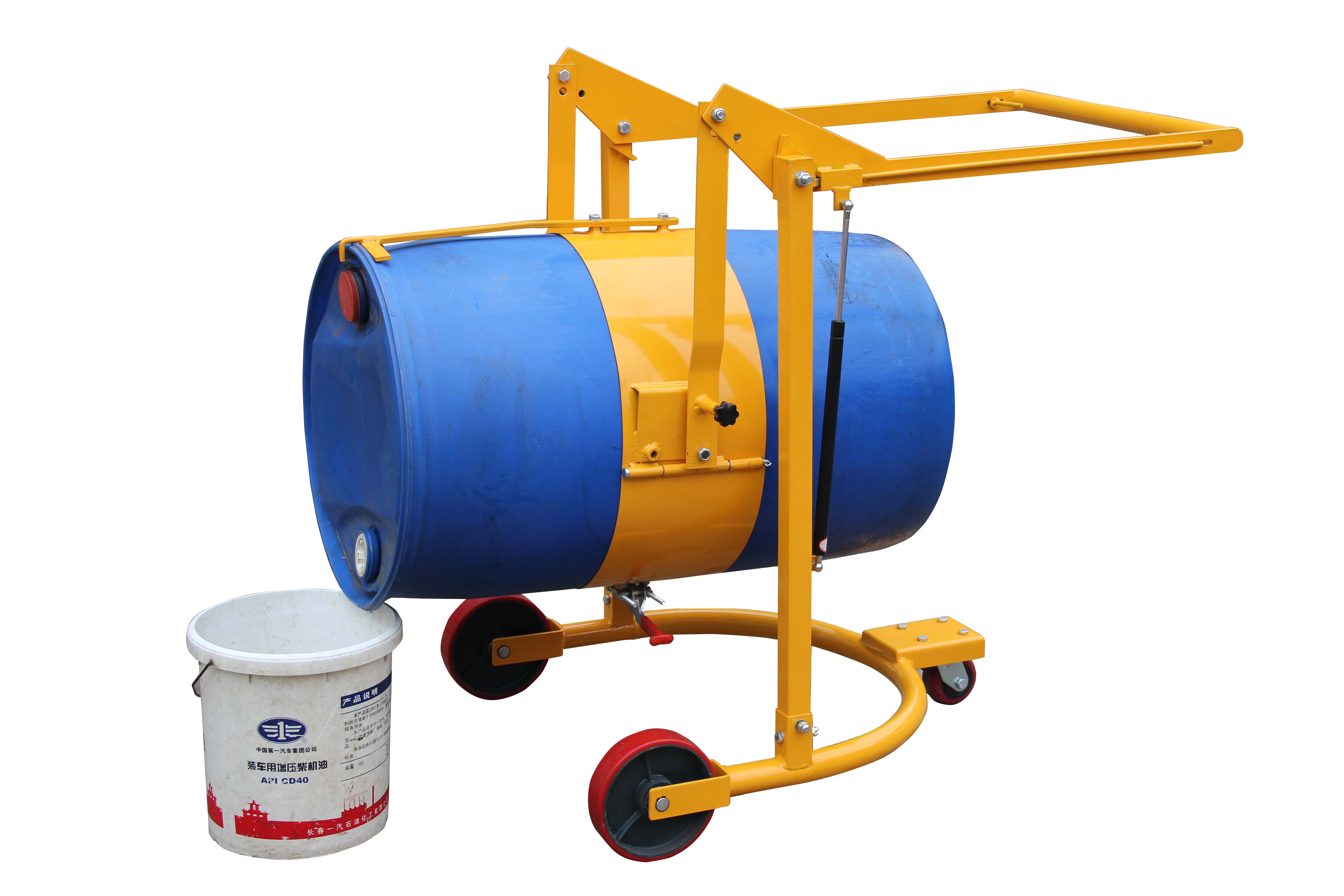

3. With locking handle, the oil drum is locked and can be easily poured or positioned horizontally or vertically.
4. By releasing locking handle, the oil drum can be rotated in order to stir its content; fit for oil drums of diameter 570~600mm.
5. Applicable for chemical plants and food plants for transferring, charging and compounding materials of fluids, such as dyes, paintings, adhesives, petrol and edible oils, etc.
Specifications：
Model


HD80
Capacity
kg
300
Drum


Plastic/Iron
Dimensions
mm
1200×800×1200
N.W
kg
45
Wheel
mm
D200×20,D100×32
