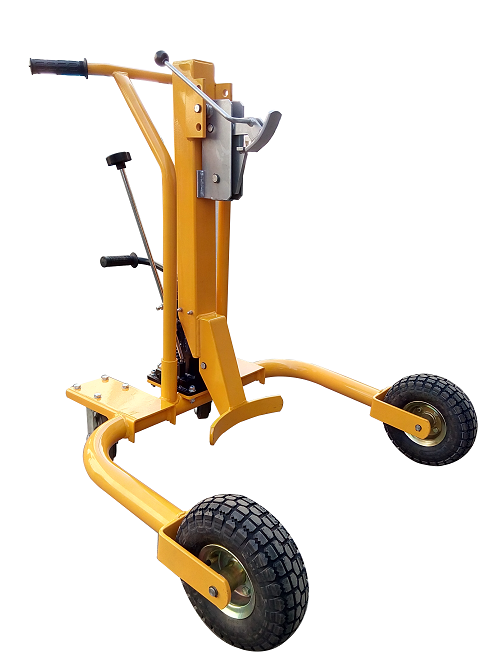

Name:DY350B Hand Drum Porter
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Japanese Style Hand Drum Porter
 Hand Drum Porter
 Manual Drum Mover
 Drum Transporter and Handler
 Drum Carrier and Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Multifunctional drum truck with new design and outstanding performance
High lift, heavy-duty and external oil cylinder provide conventient and durable operation
Adjustable olecranon; suitable for 30~55 gallon steel or 210L plastic drums
More suitable for rough land surface with elastic wheel and easy movement

Specifications:
Model


DT350B
DT350B-1
DT350B-2
Capacity
kg
350
350
350
Drum Size
mm
30~55gallon (Ø450x700mm~Ø572x900mm) steel, 210L plastic
Lifting Height
mm
450
450
450
Leg Width
mm
650 (850)
650 (850)
650 (850)
Dia. of Front Wheel x Qty'
mm
Φ180×2
Φ180×2
Φ250×2 (with elastic)
Dia. of Rear Wheel x Qty'
mm
Φ150×2
Φ150×1
Φ150×2
Overall size
mm
830×900×1080
830×900×1080
900×940×1100
Net Weight
kg
65
63
68
