Products – Portable Drum Handling Equipment

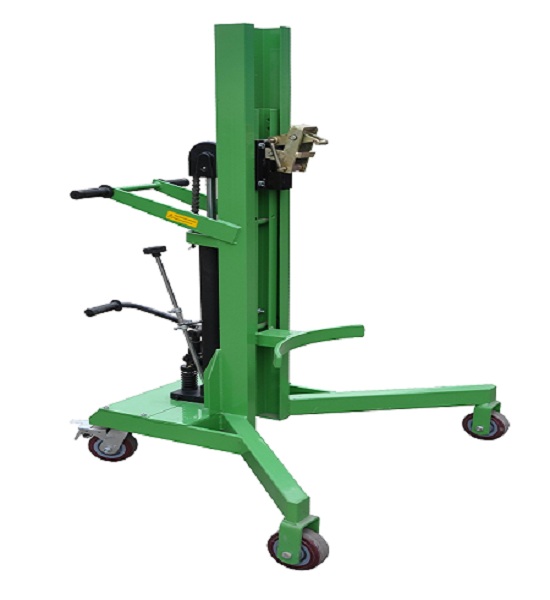

Name:DTF450A Portable Drum Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Japanese Style Hand Drum Porter
 Hand Drum Porter
 Manual Drum Mover
 Drum Transporter and Handler
 Drum Carrier and Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
High quality cylinder, saving effort and fast.
Automatic clamping oil drum in the lifting process, safe and reliable work.

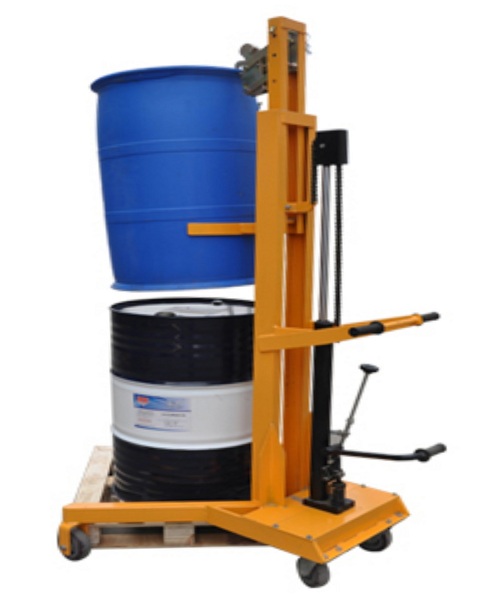

It is suitable for stacking oil drums in the corner of the pallet for operation, from the diagonal direction of the pallet to transport oil drums.
Can enter the weighing depth of 550mm, applicable to the weighing width of 680mm, height of 180mm.
The front leg can be customized according to customer needs.
Specifications:

Model


DTF450A
Capacity
kg
450
Lift height
mm
600
Overall dimension
mm
1080×850×1370
Front wheel
mm
Φ150×50
Rear-wheel
mm
Φ125×50
Inside width of front wheel
mm
670
Outside width of front wheel
mm
850
Net weight
kg
103

Previous:DT350B Portable Drum TruckNext:DY350A Hand Drum PorterReturn
