Products – Portable Drum Handling Equipment

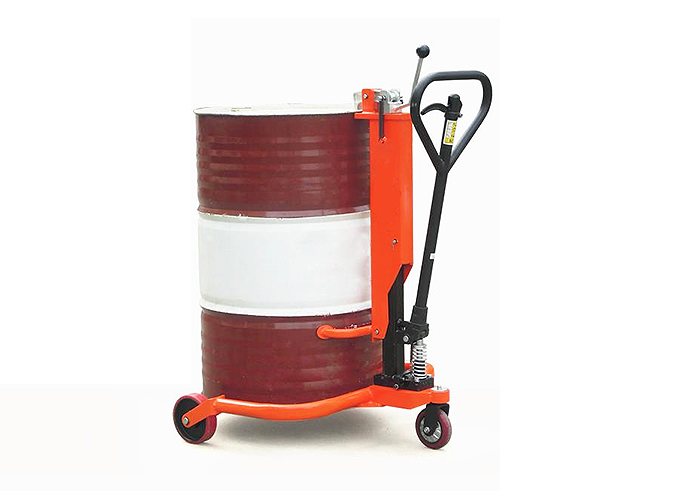

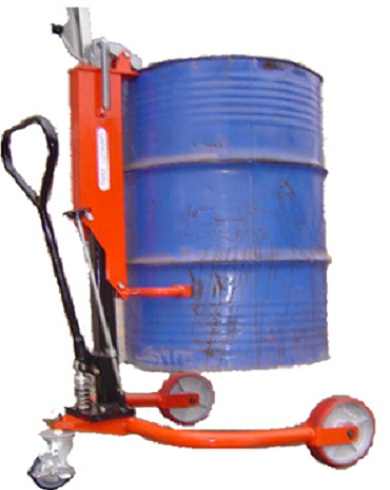

Name:COY0.25 Oil Drum Lifter With Ergonomic Handle
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Hand Drum Porter
 Manual Drum Carrier
 Drum Handler
 Drum Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Pallet Tilter
Hoisting And Lifting Equipment
Reel And Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

COY0.25 Drum Truck with 250kg capacity , is design to loading or unloading a 30 or 50 gallon drums on the pallet or spill platform. It has a rim clamp that can securely grasps the top lip of the drum.

This type of drum porter allows easy lifting with a hydraulic hand pump.

The large wheels allow for easy transport even on rough floors.

A spring-loaded clamp securely holds any rimmed drum.

Compact design and less effort operation.

The design is simple, one person can operate easily.

An ergonomic handle ,it can position the truck and adjust the jaw height easily.

With two rigid & one swivel caster with brake.


Specifications:


Model
COY0.25
Capacity kg 250
Drum Size mm 55 Gallon steel (Ø572x900)
Lifting Height mm 200/250/280/300
Straddle Leg Width mm 630
Wheel Size mm Ø180/Ø125
Net Weight kg 42
Previous:SD30 Drum DollyNext:WA30A Hydraulic Drum TransporterReturn
