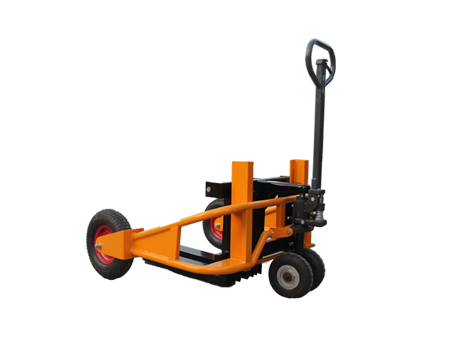

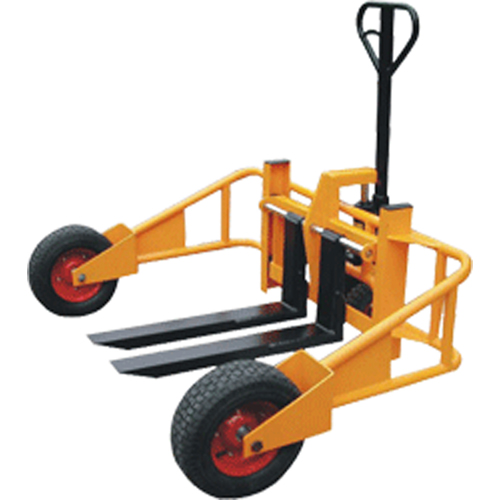

Name:ALL TERRAIN HAND PALLET TRUCK
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
 01 WF Electric Aerial order picker
 02 NK forklift mounted aerial work platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Pallet Tilter
Hoisting And Lifting Equipment
Reel And Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1、Modern design, compact structure, firm and durable, nimble
2、Ideal for handling in factory, warehouse, station, wharf and so on.
3、Easy to operate, safety in use, convenient to repair.
4、With a tight hoop
5、Lifting by hand
6、Turning drum by hand
7、Adjust to plastic drum and steel drum.
8、Very popular, widely used.

This lightweight yet strong tubular frame design handles evenly distributed loads up to 2,000 lbs. (2,000 lbs. at 12" horizontal load center and 1,500 lbs. at 15" horizontal load center). Large wheels allow for movement over most surfaces. Use at construction sites, gravel pits and nurseries.  Features large 17" front pneumatic tires and 10" pneumatic steering wheels. Individual fork width is 4". Easy to operate with three position handle, UP, DOWN and NEUTRAL. Optional Tow Bar package allows the All Terrain Pallet Truck to be towed by an ATV or small utility tractor.

Specifications:

MODEL



NPT15-1

NPT15-2

Rated Capacity (kg)



1500

1500

Length of Fork (mm) *1

LP

800

800

Width of Straddle (Interior) mm

D

1040

1210

Width of Straddle (Exterior) mm

B

1300

1470

Weight (kg)



140

148

Radius



180 degree

180 degree

Handle Wheels (mm)



270

270

Load Wheels (mm)



437

437
