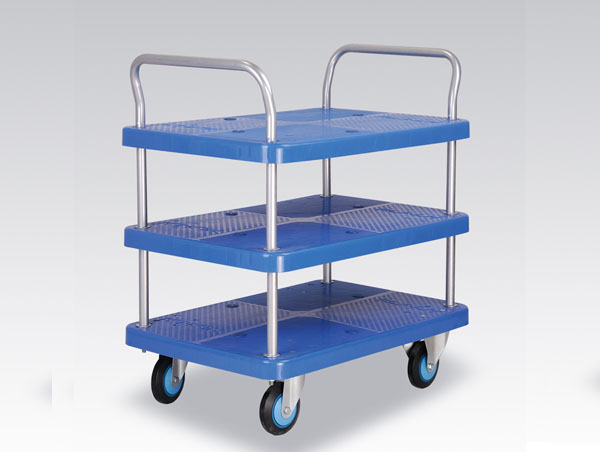

Name:PLA-T3 PLA-Y-T3 Three Layers Hand Truck
Click to view larger

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
 01 Aluminum hand trolley
 02 Steel Heavy-duty Platform Lorry
 03 Stainless steel platform Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Pallet Truck
Pallet Tilter
Hoisting And Lifting Equipment
Reel & Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
Specifications:
Specificaitons (Three Layers)
Three Layer PLA150-T3-D PLA150Y-T3-D PLA200-T3-D PLA200Y-T3-D PLA250-T3-D PLA250Y-T3-D PLA300-T3-D PLA300Y-T3-D
Size of Deck(mm) 730(L)*490(W) 825(L)*500(W) 900(L)*600
Lower Deck Height(mm) 170 155 180 160 210 200 215 210
Upper Deck Decks(mm) 670 650 680 660 725 715 730 720
Space of Two Decks(mm) 215 215 210 210 208 208 208 208
Height of Handle(mm) 850 830 860 840 915 905 930 920
Wheel Dia.(mm) 4?(100) 5?(130)
The structure of castor Nylon Steel Nylon Steel Nylon Steel Nylon Steel
Net weight(kg) 15 14.5 19.5 19 27.5 27 30 31.5
Max Capacity(kg) 150 200 250 300
Foot brake rack optional N N optional
Package Size(mm) 740*280*500 740*260*500 840*200*525 845*240*525 920*270*610
Package Weight(mm) 16.5 15.5 21 20.3 29 28.5 31.5 33
Optional Castor: Nylon or Steel Structure.
