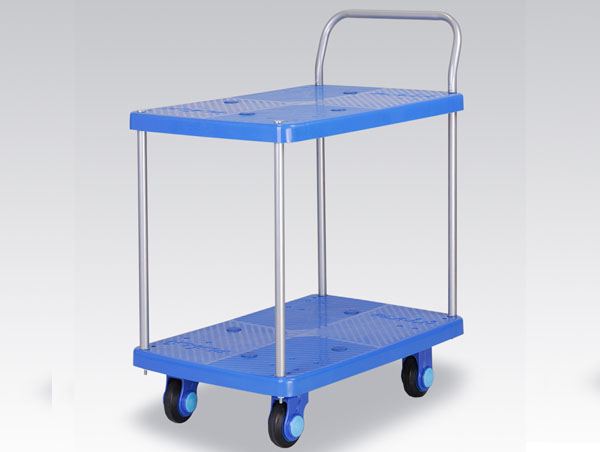

Name:PLA-T2 PLA-Y-T2 Two Layers Hand Truck
Click to view larger

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
 Plastic Platform Truck
 Four Wheels Platform Trolley
 Luggage Cart Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
Specifications:
Specifications (Two-Layer)
Two Layer PLA150-T2 PLA150Y-T2 PLA200-T2 PLA200Y-T2 PLA250-T2 PLA250Y-T2 PLA300-T2 PLA300Y-T2
Size of Deck(mm) 730(L)*490(W) 825(L)*500(W) 900(L)*600
Lower Deck Height(mm) 170 145 180 160 210 200 215 210
Upper Deck Decks(mm) 670 650 680 680 725 715 730 720
Space of Two Decks(mm) 470 470 465 465 465 465 465 465
Height of Handle(mm) 860 840 870 860 915 905 930 920
Wheel Dia.(mm) 4″(100) 5″(130)
The structure of castor Nylon Steel Nylon Steel Nylon Steel Nylon Steel
Net weight(kg) 12.2 11.7 18 17.5 19.1 20 22.5 23.6
Max Capacity(kg) 150 200 250 300
Foot brake rack optional N N optional
Package Size(mm) 740*200*500 840*200*525 845*240*525 920*270*610
Package Weight(mm) 13.1 12.5 19 18.5 20.3 21.4 23.6 25
Optional Castor: Nylon or Steel Structure
