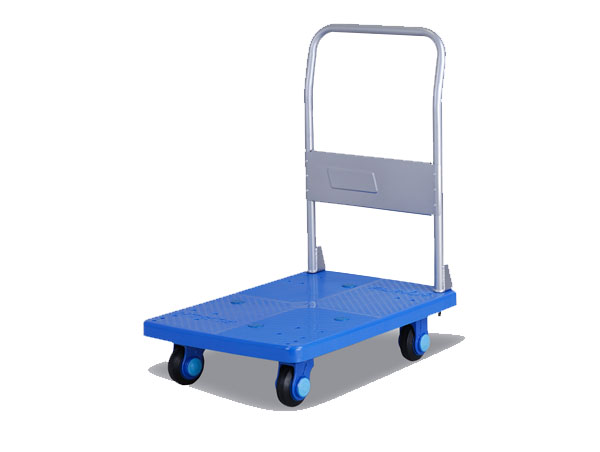

Name:PLA Single Layer Hand Truck
Click to view larger

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
 Plastic Platform Truck
 Four Wheels Platform Trolley
 Luggage Cart Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

One plastic desk platform/

one handle/

4-5 lnch Uni-Silent mute caster(Rubber tyre & Nylon structure)/

150-200-250-300kg Capacity

Specifications:
Nylon structure castor PLA150-DX PLA150 PLA200-DX PLA200 PLA250-DX PLA250 PLA300-DX PLA300
Size of Deck(mm) 720(L)*490(W) 825(L)*500(W) 900(L)*600
Height of Deck(mm) 170 180 215 220
Height of Handle(mm) 860 850 860 860 890
Wheel Dia.(mm) 4″(100) 5″(130)
Net weight(kg) 10 9 11.5 10.5 13 12 15 14
Max Capacity(kg) 150 200 250 300
Handle Type foldable fixed foldable fixed foldable fixed foldable fixed
Foot brake rack optional N optional
Package Size(mm) 730*180*500 845*200*525 845*240*525 920*210*610
Package Weight(mm) 11 10 12.5 11.5 14 13 16 15
