Products – Platform Hand Trolley

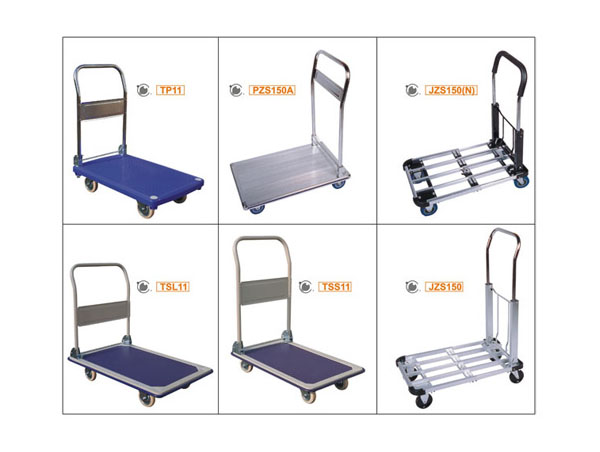

Name:TP & PZS Platform Hand Truck
Click to view larger

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
 Plastic Platform Truck
 Four Wheels Platform Trolley
 Luggage Cart Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
Specifications:
Item/Type TP11 TSL11 TSS11 PZS150A JZS150(N) JZS150
Capacity(kg) 200 250 150 150 150 150
Width of table(mm) 500 610 480 475 420 420
Length of table(mm) 810 910 740 735 700/500 700/500
Height(mm) 890 860 860 830 830/670 830/670
Material Plastic Steel Aluminum
Caster wheel(mm) Φ125x35 Φ125x35 Φ100x35 Φ100 Φ100 Φ100
N.W.(kg) 12.2 18.6 12.5 8 7.5 7.5
Package(mm) 185x815x540 140x920x630 120x760x495
20’ft container(pcs) 350 320 585 670 710 710
