Products – Mini Stacker

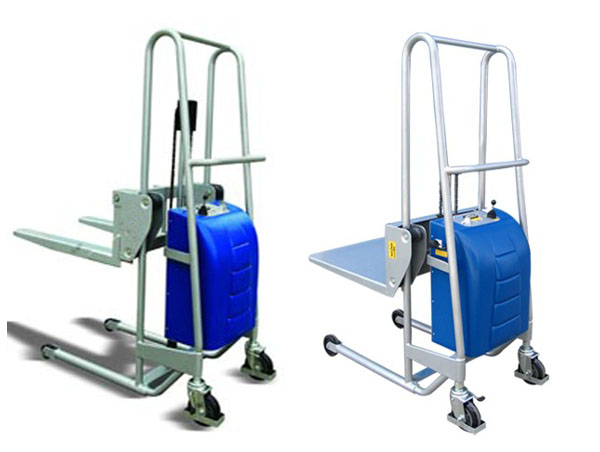

Name:NE semi-electric mini stacker
Click to view larger

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1. A range of highly manoeuvrable, lightweight lifts, designed to take the strain out of any lifting job from ground level to over shoulder height.
2.Ideal for use in narrow aisles and confined spaces. Perfect for all applications from pharmaceutical to catering, from packing line to food processing, from warehouse to office, kitchens, laboratories, retail outlets, etc...
3.Quick lift pump provides high efficiency.
4.No-marking castor as standard.
5.Conforms to EN1757.
Specifications:
Model(Adjustable Fork) NE4012PA NE4012PB NE4012F
Type Platform Platform Adjustable Fork
Capacity (kg) 400 400 400
Max.Fork Height H2 (mm) 1210 1270
Min.Fork Height H1 (mm) 90 150 90
Platform Length L1 (mm) 670 670
Platform Width W1 (mm) 590 590
Min. Fork Height h1 (mm) 90
Max. Fork Height h2 (mm) 1210
Fork Length L2 (mm) 700
Single Fork Width (mm) 90
Fork Width W2 (mm) 190-572
Dia of Front Wheel D (mm) ?75 ?75 ?75
Dia Steering Wheel d (mm) ?125 ?125 ?125
Power Pack Motor (KW) 0.8 0.8 0.8
Battery (V/Ah) 12/70 12/70 12/70
Overall Height H (mm) 1610 1635 1610
Overall Width W (mm) 620 620 620
Overall Length L (mm) 1190 1190 1270
Net Weight (kg) 116 118 117
