Products – Mini Stacker

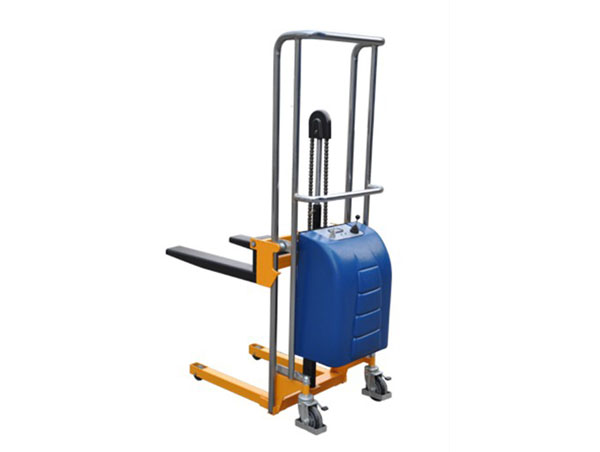

Name:EF & EJ semi-electric mini stacker
Click to view larger

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1、Low profile forks can lift the pallet easily.
2、Easier and faster lifting operation.
3、High quality hydraulic motor made in Italy.
4、Service free battery.
5、Option platform available.
6、No-marking castor as standard.
7、Conforms to EN1757.
Specifications:
Model (Fixed Fork)   EF2085A EF2120A EF4085A EF4120A EF4150A
Model (Adjustable Fork)   EJ2085A EJ2120A EJ4085A EJ4120A EJ4150A
Capacity (kg) 200 400
Max.Fork Height (mm) 850 1200 850 1200 1500
Min.Fork Height (mm) 80 80
Fork Length (mm) 600 650
Fixed Fork Width EF series (mm) 500 550
Adjustable Fork Width EJ series (mm) 215-500 235-500
Single Fork Width (mm) 100 110
Load Roller (mm) ?75 ?75
Steering Wheel (mm) ?125 ?125
Chassis Height (mm) 32.5 22.5
Power Unit (KW) 0.8 0.8
Battery (Ah/V) Dec-60 Dec-70
Overall Height (mm) 1080 1435 1060 1410 1710
Overall Width (mm) 560 590
Overall Length (mm) 1020 1100
Net Weight EF series (kg) 90 97 105 116 122
EJ series (kg) 93 100 110 121 127
Option Platform   LP10(610x530) LP20(660x580)
Previous:NS & NF manual mini stackerNext:EP semi-electric mini stackerReturn
