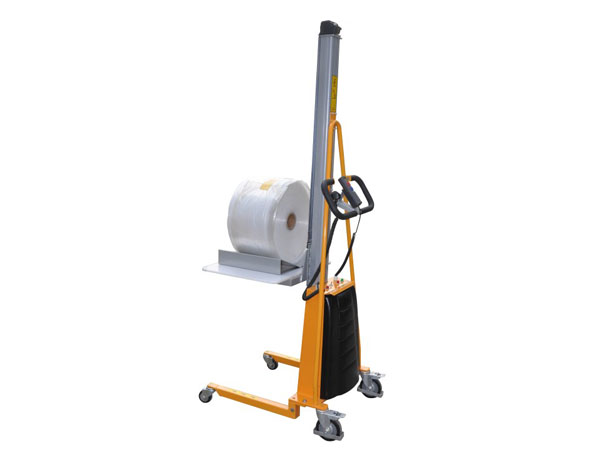

Name:M & E series Work positioner
Click to view larger

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
 M series Manual Winch Work Postioner
 E Series Electric Work Postioner Lift
 Other Spercial Work Postioner Lift Trolley
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1.Stronger motor,Larger battery 12Ah,Low voltage protection.
2.Arange of highly manoeuvrable,light weightlifts,designed to take the strainoutany lifting job from ground level to over shoulder height.
3.Ideal foruse in narrow aisles and confined spaces.
4.Perfect forall applications from pharmaceutical to catering,from packing line to food processing,from warehouse to office,
kitchens,laboratories,retailoutlets,etc...
5.Manual models:Operated via amanual hand winch.
6.Autobrake system prevents uncontrolled lowering.
7.Electricmodels:Automatic electronic overload protection systerem ensures safety.
8.Maintenance free and sealed batteries,automatic charger.
9.Quick change attachment options available.
10.Conforms to EN1757,CE marked.
Specifications:
Model M100 M200 E100 E150 E100 A E150A
Type Manual Electric
Capacity (kg) 100 200 80 150 100 150
Load centre (mm) 235 235 235 235 235 235
Min.Height (mm) 1500 1500 1500 1500 1700 1500
Max.Height (mm) 130 130 130 130 130 130
Platform size (mm) 470X600 470X600 470X600 470X600 470X600 470X600
Overall size mm 840X600 870X600 870X600 870X600 870X600 870X600
X1830 X1920 X1990 X1790 X1990 X1790
Load wheel (mm) Φ75 Φ75 Φ75 Φ75 Φ75 Φ75
Steering wheel (mm) Φ125 Φ125 Φ125 Φ125 Φ125 Φ125
Battery service free -- 24v,12Ah 24v,12Ah 24v,12Ah 24v,12Ah
Net Weight (kg) 50 60 66 63 66 63
