Name：DC500 Drum Caddy
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Japanese Style Hand Drum Porter
 Hand Drum Porter
 Manual Drum Mover
 Drum Transporter and Handler
 Drum Carrier and Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：

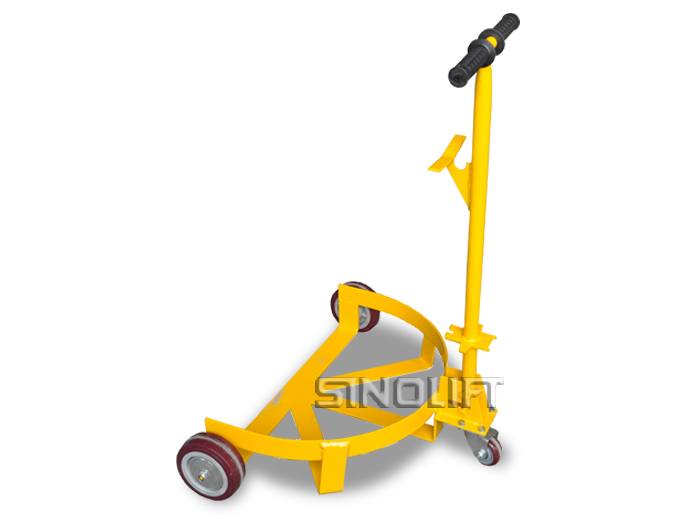

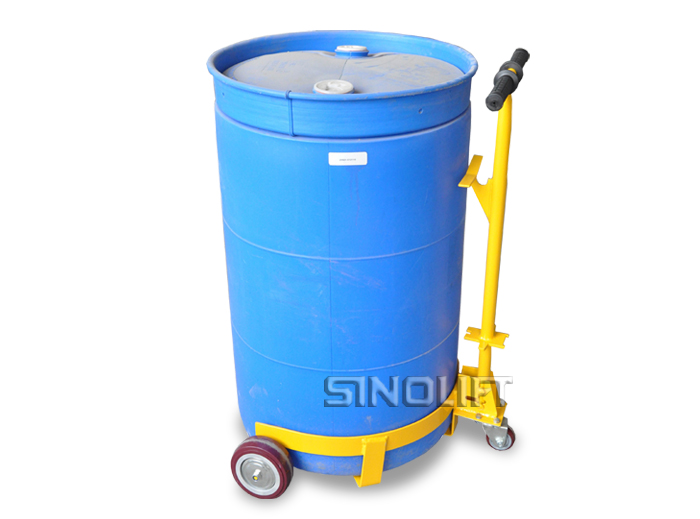

Drum Caddy - Reduce injuries caused by manually lifting and moving drums. Transport (1) 55 or 30 gallon drum or (2) 5 gallon pails with the Lo-Profile Drum Caddy. To use: align drum caddy in front of drum, remove handle, and grip drum with the handle. Tip drum up while guiding the caddy base under the drum. Re-attach handle and transport drum to desired location. Drum caddy rolls easily on two 6" x 2" rigid wheels and one 3" x 1" swivel caster. The removable handle doubles as a bung nut wrench and seal remover. Drum caddy had steel construction. Yellow painted finish.
Specifications：
Model DC500
Capacity kg/lbs 500 /1100
Drum Size gallon 30/55
Overall Size mm 950×570×750
Net Weight kg 17
Wheel(Poly) Dia × Width mm 150×50, 75×32
