Products – Forklift or Crane Mounted Drum Handler

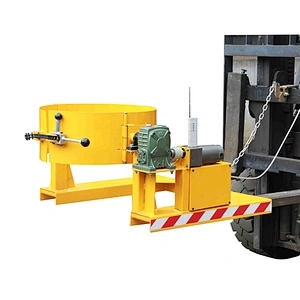

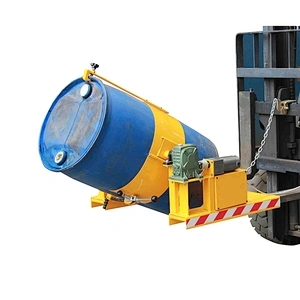

Name：HK285 HK300 drum rotator
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
 01 Forklift and Crane Mounted Drum Clamp Hoist
 02 Forklift Mounted Drum Positioner
 03 Forks hook and Forks Movers
 04 Forklift Mounted Drum Rotator
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Pallet Tilter
Hoisting And Lifting Equipment
Reel And Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：

handle control, drum can be rolled 360 degree and stayed at any angle, Can easily move, rotate and fix oil drum.

Assembled a unique spring-controlled "parrot beak" clip claw body.

adjustable hoop, locking design.

HK300 adapts 12V, 100W DC motor which can be used with 12V forklift battery or with extra battery


Specifications：
Model HK285 HK300 HK300-1
Load Capacity kg 300 300 300
Fork inside width mm 680 680 630
Fork outside width mm 970 970 940
Fork Pocket mm 155×55 155×55 155×55
Outline Size mm 1000×1000×850 1000×1050×850 940×1090×920
Net weight kg 60 63 68
Turning Ratio 0.083333333 1:60 1:20 1:60 1:20
Drum Size mm Φ570—Φ600

Previous：DH300 Drum PositionerNext：HK300 Forklift Mounted Drum KarrierReturn
