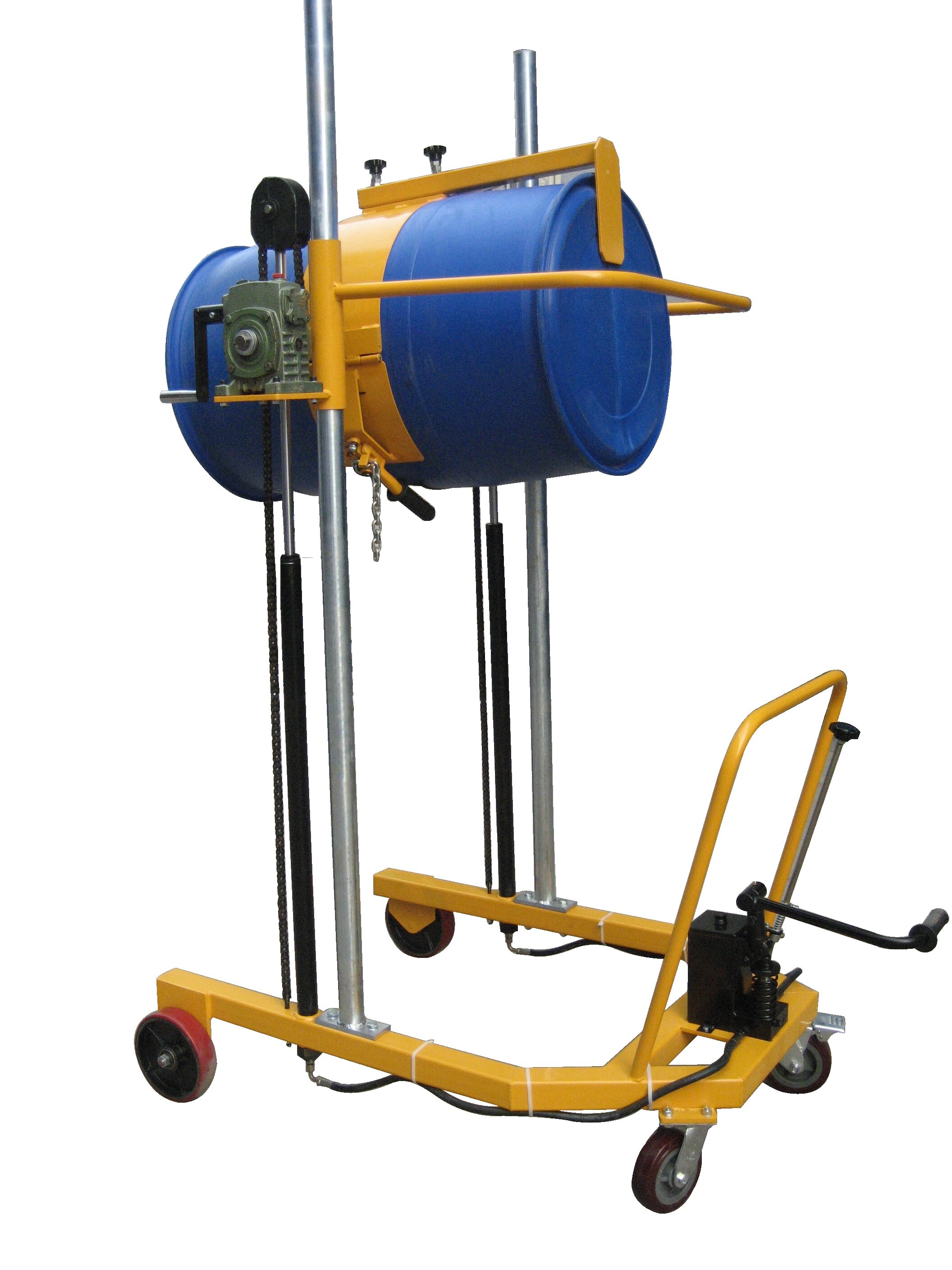

Name:WB30 Manual Hydraulic Drum Dumper
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
 Mechanical Drum Dumper
 Manual Hydraulic Drum Dumper
 Semi-Electric Hydraulic Drum Dumper
 Full Electric Hydraulic Drum Dumper
 Pneumatic and Other Drum Dumper
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

For lifting, turning, mixing, emptying and transporting drums.

High lifting, double mast, double cylinders. Allow 360 degree rotating.

Hydraulic cylinder with pipe breakage protection. Hydraulic lifting with pedal.

Drums are turned with hand crank. 2 castors, 1 swivel castor with wheel stop, solid rubber wheels.

Rotating can be driven with worm gear, chain and electric motor


Specifications:
Model WB30 WE30
Lifting power type Manual Electric
Capacity kg 300 300
Drum Size mm 30 gallon (Ø450x700)-55 gallon ( (Ø572x900) steel, 210L plastic
Strokes to Maximum Lifting Height Approx / 82 82
Vertical lifting height mm 1300 1300
Horizontal lifting height mm 1500 1500
Tilting height at 135 degree mm 720 720
Wheel mm Ø200/Ø150 Ø200
Overall dimension mm 1360x1030x2190 Ø150
Net weight / 135 160
