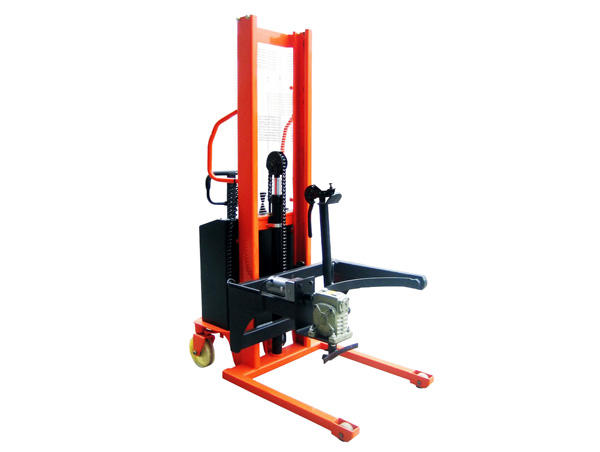

Name:COD0.5P Semi-electric Automatic Drum Tilter
Click to view larger

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
 Drum Tipping Stacker
 Full Electric Drum Adopter
 High Postion Drum Rotating Crane
 Drum Handler
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1.Electric-hydraulic Drum Stacker
2.Detali specification
3.Suitable for handling , stacking drums,  turning over  and dumping materials
4.Hand push and pull,electric lifting ,option for electric or hand  turning over
5.Easy to operate,reduces effort highly effective
6.Imported power unit configuration,reliable performance
Specifications:
Model COD0516- P COD0525-P COD0530-P
Capacity Q kg 500 500 500
Lifting height h mm 1600 2500 3000
Transport mode hand hand hand
Lifting mode electric electric electric
Feeding mode electric electric electric
Clamp diameter mm 600 600 600
Min turning radius Wa mm 1200 1200 1200
Lifting motor V Kw 12/1.6 12/1.6 12/1.6
Accumulator V/Ah V/Ah 12/120 12/120 12/120
Charger V/Ah 220/100 220/100 220/100
Overall Length l1 mm 1200 1200 1200
Overall Width b mm 800 800 800
Overall height h1 mm 2100 1680 2100
N.W kg 380 450 500
