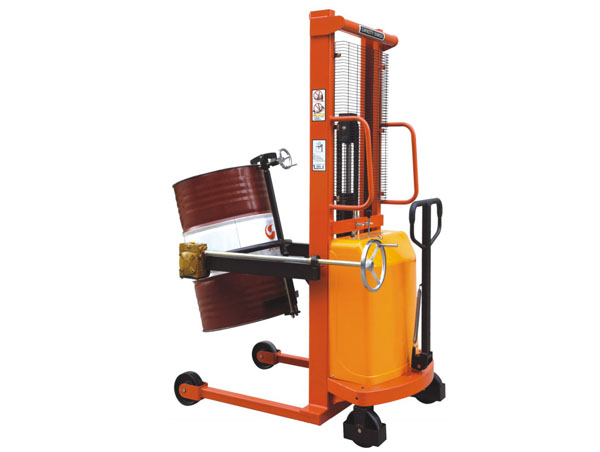

Name:COD0.35B  Semi-Electric Hydraulic Drum Dumper
Click to view larger

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Pallet Truck
Pallet Tilter
Hoisting And Lifting Equipment
Reel & Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
 01 Mechanical Drum Dumper
 02 Drum Stacking Tilter Dumper
 03 Manual Hydraulic Drum Dumper

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1.Specially designed for lifting, rotating or stacking drums

2.No need for the operator to touch the drum to raise, transport and rotate

3.Can be operated with hand pump and electric power for lifting

4.Can be designed with all electric operation including lifting, rotating and driving

5.Swivel casters for easy movement and steering

6.All models have all welded steel construction for durability

7.This drum handling tool can be used for moving and handling drums from 300kg to 400kg.
Specifications:
Model COD0.35B
Load Capacity kg 350
Lifting height mm 1425
Overall length (A) mm 1190
Overall width (B) mm 890
Overall Height (H1) mm 2020
Drum size mm ¢580X900
Load Wheel mm ¢180X50
Lifting Motor 1.5KW
Battery 12V/120AH
Charger 12V/15A
Net Weight kg 160
