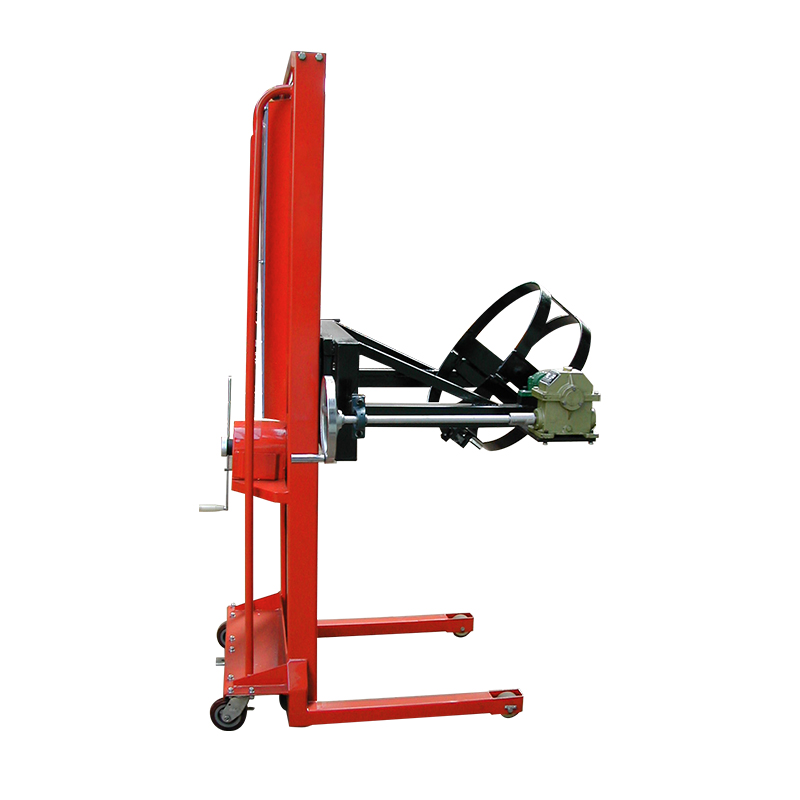

Name:COJ0.35A Mechanical Winch Drum Dumper
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
 Mechanical Drum Dumper
 Manual Hydraulic Drum Dumper
 Semi-Electric Hydraulic Drum Dumper
 Full Electric Hydraulic Drum Dumper
 Pneumatic and Other Drum Dumper
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

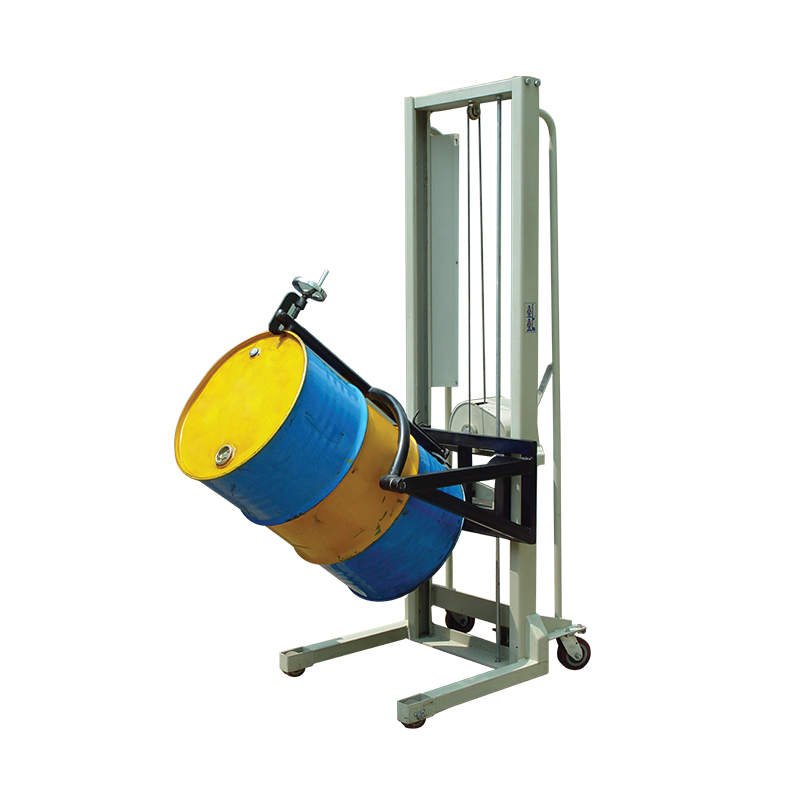

The winch industrial drum lifter featuring easy raising and lowering , transporting and rotating properties, as well as portability, with various wheel and drum clamp options.

They are kind to the operator and reduce fatigue.

Applicable for chemical plants and food plants.

Specifications:
Model COJ0.35A COJ0.35B
Capacity kg 350 350
Drum fixed type / hoop gripper
Drum size / 55 gallon steel (Ø572x900)
Max. lifting height mm 1500 1500
Load center mm 415 415
Raised speed mm/s >35 >35
Lowered speed / Controllable Controllable
Leg width mm 680 680
Max. ground clearance mm 30 30
Wheel mm Ø200x50/Ø100x45
Overall dimension mm 1250x750x1900 1250x750x1900
Service weight Kg 145 167
