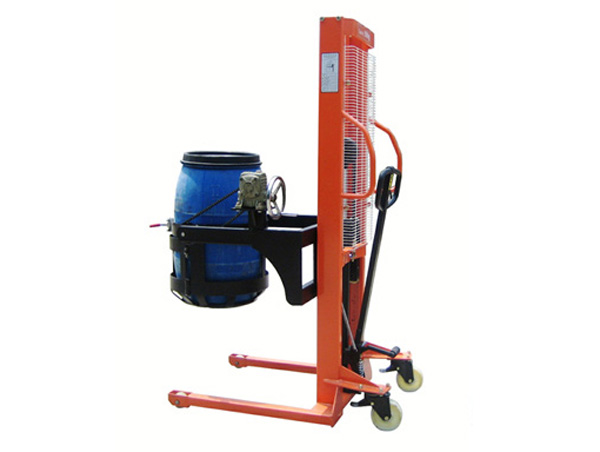

Name:NBF35 NBF50 Hand Drum Rotating Truck
Click to view larger

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1.The clamp of this product is U-bolthoop structure, easy to operate
Add U type load bearing structure
keep safe, reliable
2.Ideal for applications where barrels are stacked, transported or being poured of stacking, transporting and poring oil aslant.
Specifications:
Model NBF3513-U NBF5013-U
Capacity kg 350 500
Lifting height mm 1310 1310
Diameter mm 581 581
Overall Length mm 1600 1600
Overall Width mm 930 930
Overall Height mm 1970 1970
Max turning radius mm 1600 1600
N.W kg 198 198
Remarks Standard Customize
