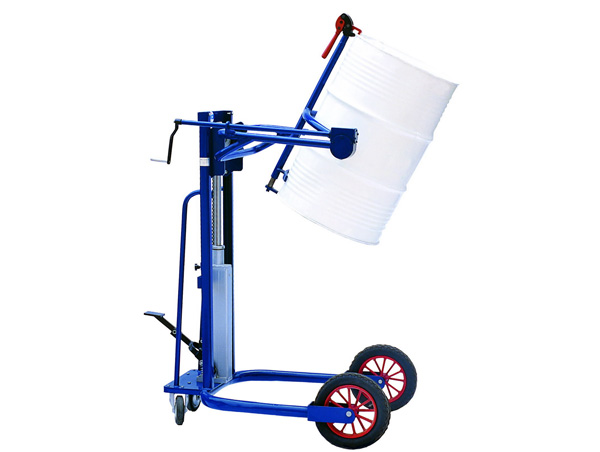

Name:COT0.25  Hand Drum Rotating Truck
Click to view larger

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Pallet Truck
Pallet Tilter
Hoisting And Lifting Equipment
Reel & Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
 01 Mechanical Drum Dumper
 02 Drum Stacking Tilter Dumper
 03 Manual Hydraulic Drum Dumper

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

This Drum Lifter is mobile on Four wheels, two of which are steering type. All wheels are provided with double ball bearings with dust covers.

This Drum Lifter is composed of hydraulic system, main frame, Drum Holding device, gear box and and lifter. The Durm Lifter lifts drum with manual hydraulic jack and equipped with return valve and foot pedal to control durm carriage lowering rate and ensure the hydraulic action accurate and reliably. One gear box is provided to rotate the Drum. After lifting the Drum hydraulically the Drum can be rotated up to required angle max 180 Degrees by turning the handle.

To grip the Drum safely & properly Two heavy duty holding devices are provided which grip the Drum from Top as well as from bottom.

Features :

1. Can be used in loading & unloading the Drums in the truck.

2. Can stack the Drums vertically or horizontally one over the other.

3. Can tilt 180 Degrees for pouring liquid to the last drop.

4. Can carry Drums to long distance.

5. It is quite a one man show, the Drum need not be touched by hand.

6. Can handle steel & Plastic Drums, as well.

This is the ultimate solution for quick, safe & fast Drum Handling in warehouses & plants.
Specifications:
Model COT0.25 (single Mast) COT0.25 (duplex mast)
Rated lifting capacity(㎏) 250 250
Lifting height(mm) 1460 1600
Overall dimension L×W×H(mm) 1100×860×1540 1150 × 925×1410
Self Weight(㎏) 150 175
