Name:DE450C Mechanical Hand Drum Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Japanese Style Hand Drum Porter
 Hand Drum Porter
 Semi-Electric Hydraulic Stacker
 Manual Drum Mover
 Drum Transporter Handler
 Panel Roll Handling Trolley
 Drum Carrier Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

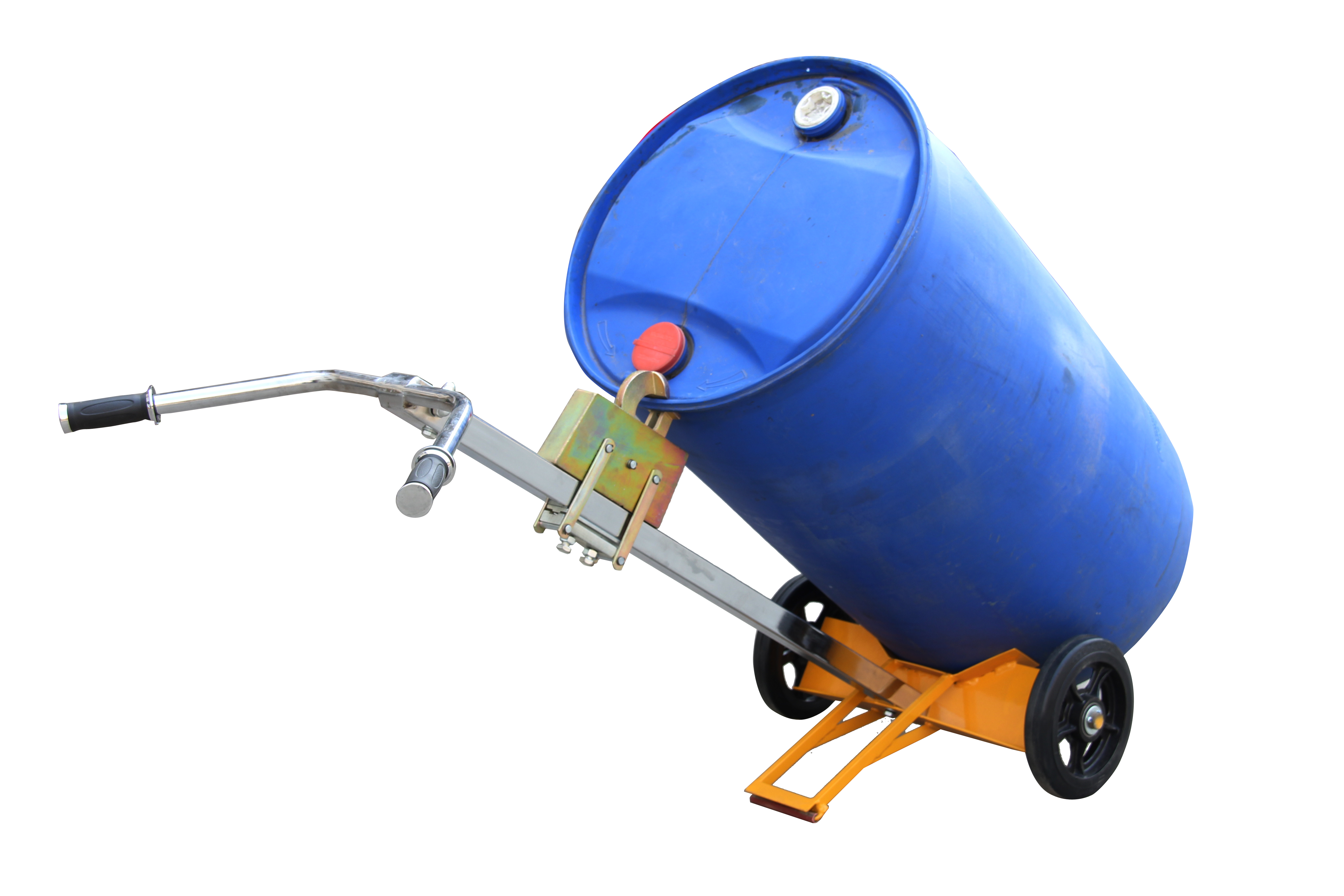

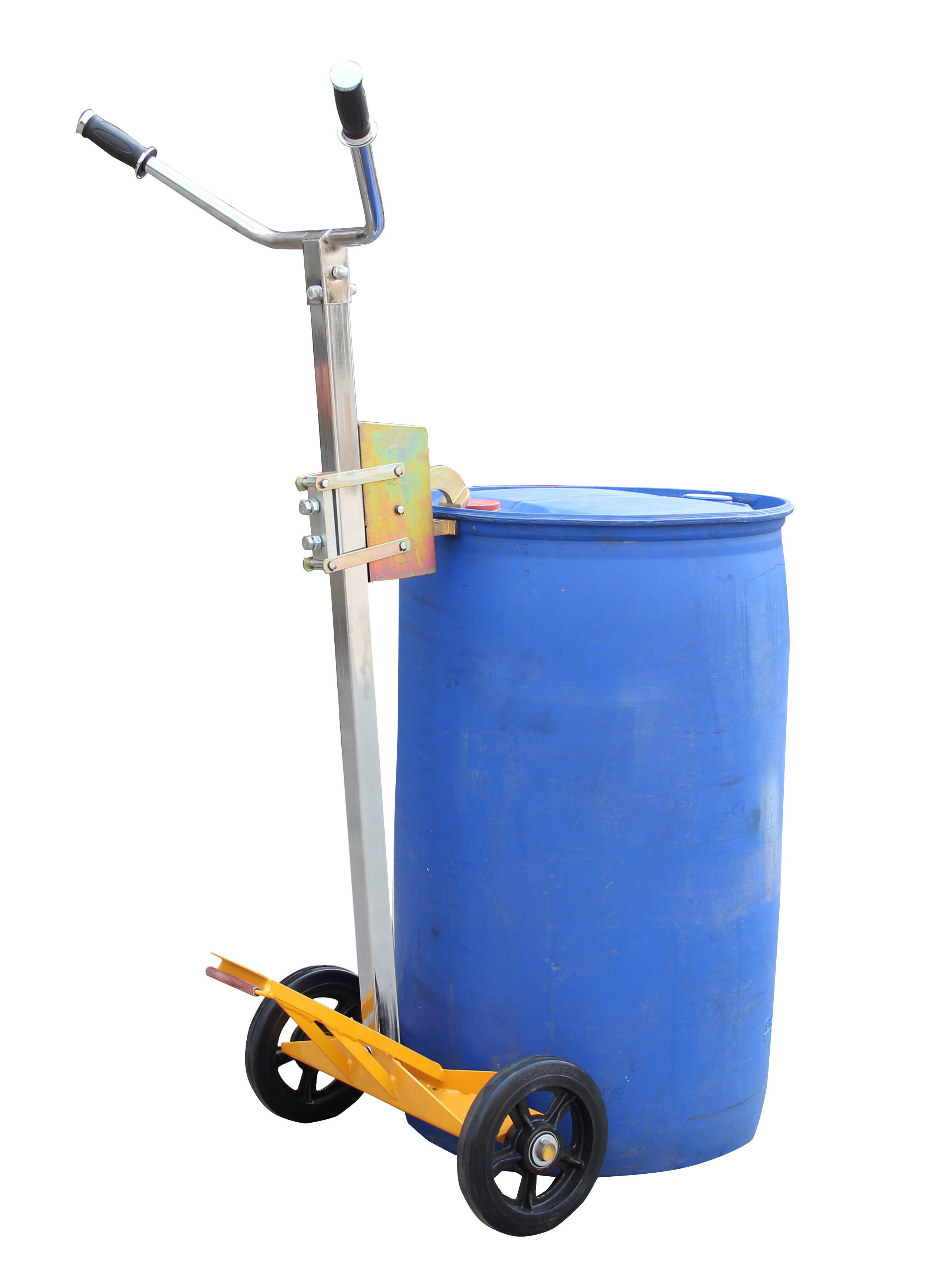

 The Tilting Drum Truck - Drum Tilter Mover allows workers to easily and safely transport 30 or 55-gallon steel drums. These units feature a chime gripper for securely transporting even the heaviest of barrels. This series has a foot rest to allow for easy loading and also supports the unit when loaded.

One person can operate easily.

Self standing with kickstand.

Adjustable drum truck allows for transporting, tipping, storing of 60 and 200 ltr drums.

Specifications:
Model DE450C
Rated Capacity  kg  450
Wheel Numbers 2
Drum Size 30 gallon (Ø450x700)/55 gallon (Ø572x900) steel ,210L  plastic
Overall Size mm  1450x700x750
Wheel (Poly) size mm Ø250x50
Wheel (Poly) size mm //
Net Weight kg 22
Previous:DE450B Mechanical Hand Drum TruckNext:DE450D Mechanical Hand Drum TruckReturn
