Products – Drum Dumping Equipment

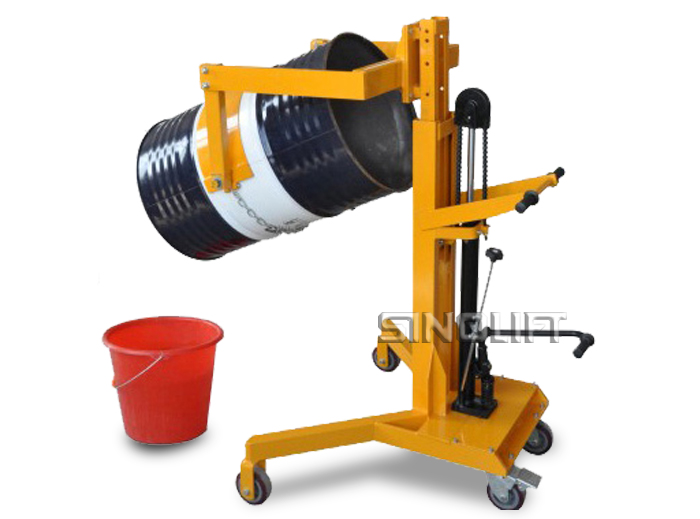

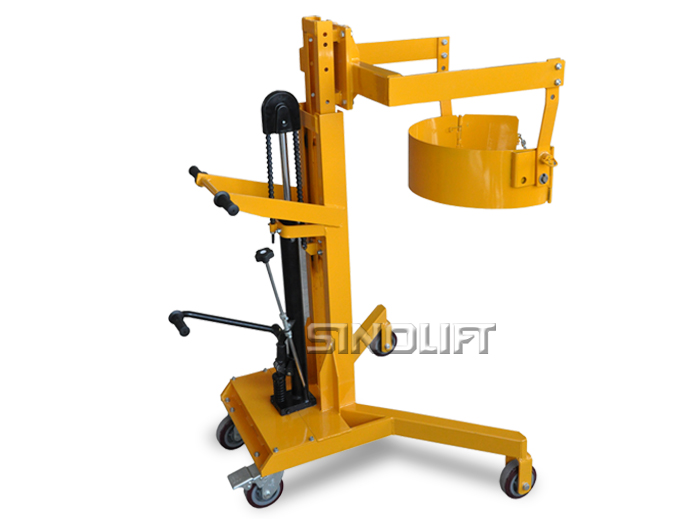

Name:DTF350A Manual Hydraulic Drum Dumper
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
 Mechanical Drum Dumper
 Manual Hydraulic Drum Dumper
 Semi-Electric Hydraulic Drum Dumper
 Full Electric Hydraulic Drum Dumper
 Pneumatic and Other Drum Dumper
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
High-quality cylinders, labor-saving and quickly.
Clamping drums automaticly during the lift process. Work safely and reliablely.
Apply to handling the oil drums stacked on the pallets corner , and carry
drums from the diagonal direction of tray.
Apply to carry the oil steel  drums.
Specifications:
Model DTF350A
Capacity kg 350
Drum size 30 gallon (Ø450x700)-55 gallon ( (Ø572x900) steel, 210L plastic
Rotating type Manual
Lifting type Manual & Pedal
Vertical lifting height mm 600
Horizontal lifting height mm 800
Leg Width mm 950
Wheel Φ125×20
Drum tilting degree degree 90°~180°~360°
Outline dimension mm 1180x1150x1260
Net weight kg 195

Previous:NO ProductsNext:HD80A Mechanical Drum DumperReturn
