Products – Portable Drum Handling Equipment

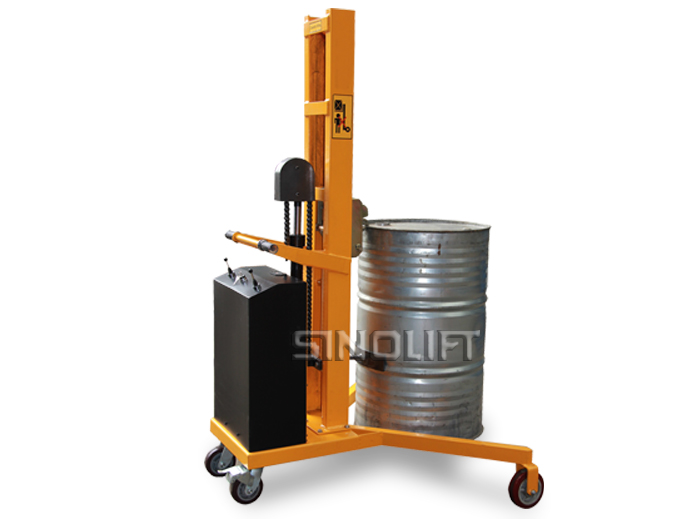

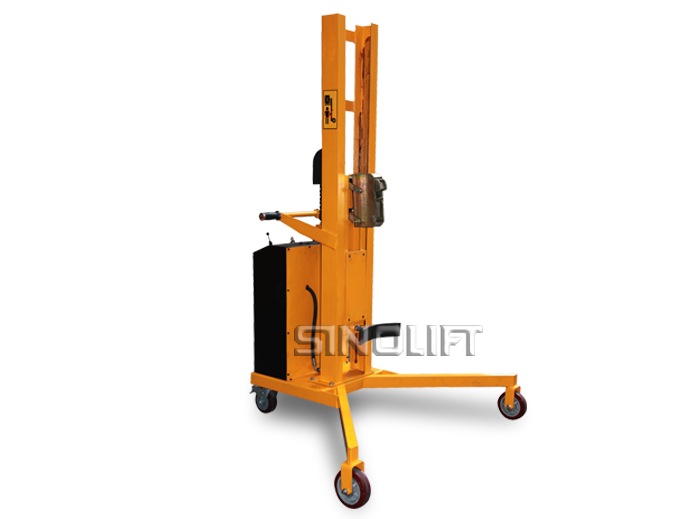

Name:DT300A Portable Drum Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Japanese Style Hand Drum Porter
 Hand Drum Porter
 Semi-Electric Hydraulic Stacker
 Manual Drum Mover
 Drum Transporter Handler
 Panel Roll Handling Trolley
 Drum Carrier Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Ideal for lifting and transporting steel drums and plastic drum with a top lip.

Easily glides over pallets or pound scale platform to quickly load or unload 30 or 55-gallon drums.

Grabs drums from the middle of a standard pallet with a drum clawgrab, raises the drums up, and redistributes them throughout the facility.

Simple design is easy to use;unit features a manual mechanical hand ratchet crank lift mechanism. Also removes drums from the corner of containment skids.

Less lifting force by a reliable hydraulic pump.
Easier moving with two big size rollers and one caster wheel.

Options:

Straddle leg for picking up drum from a Euro Pallet.
Spring-loaded steel jaws securely grip the top lip of the drum.
Includes two rigid and one locking swivel caster.
Specifications:
Model DT300A
Lifting Capacity (kg/lbs) 300/660
Drum Size
572mm (22.5"Diameter),
210Lifters (55 gallon)
Lifting Height (mm/inch) 250/9.8"
Lfiting Per Stroke (mm/inch) 22/0.87”
Outline Dimensions mm 1000x900x1200
Straddle leg width mm 670(850)
Wheel size mm 150x50 125x50
Net Weight (kg/lbs) 45/99
