Products – Portable Drum Handling Equipment

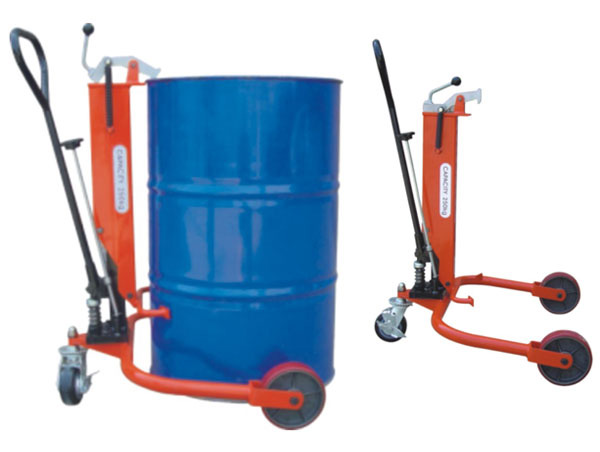

Name：COY0.25 Drum Carrier
Click to view larger

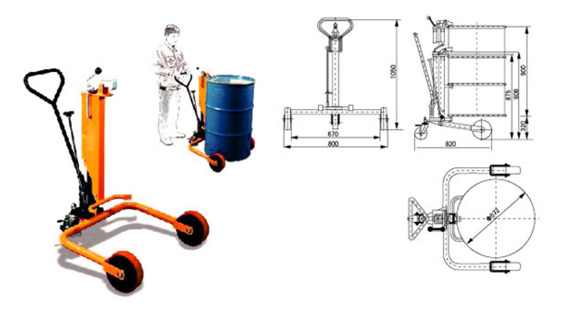

Diagrams：

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Hand Drum Porter
 Manual Drum Carrier
 Drum Handler
 Drum Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Pallet Tilter
Hoisting And Lifting Equipment
Reel And Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：
♦Economical method to lift and transport steel drums
♦Handles drums up to 22.5" in diameter
♦2 rigid and 1 swivel locking caster for easy maneuverability. Caster lock helps prevent accidental rolling
♦Straddles pallets  up to 33" such as the new Euro pallet
♦Easy to use design - pulling top lever secures drum. Pallet truck-type pump handle takes the effort out of lifting drum
♦Moldon polyurethane casters - front 8", rear 5"
Specifications：
Model COY0.25
Lifting Capacity Kg 250
Lifting Height mm 280
Max.drum diameter mm 572
Max.drum length mm 915
Net Weight Kg 40
Previous：NO ProductsNext：COY0.3 Drum CarrierReturn
