Feature:

Product Name

Universal Fit Forklift Drive Wheel Assembly


Product Description:

Our newly upgraded Drive Wheel Assembly delivers powerful and silent performance. Its 750W pure copper motor provides high torque for effortless operation and slope handling. Built for durability with strict material selection, it ensures reliable, energy-efficient performance under heavy loads.


Key Features:

1. 750W Pure Copper Motor, High Torque

2. Silent & Energy-Saving Design

3. Strong Load-Bearing Capacity

4. Easy Installation & One-Year Warranty

Specifications:

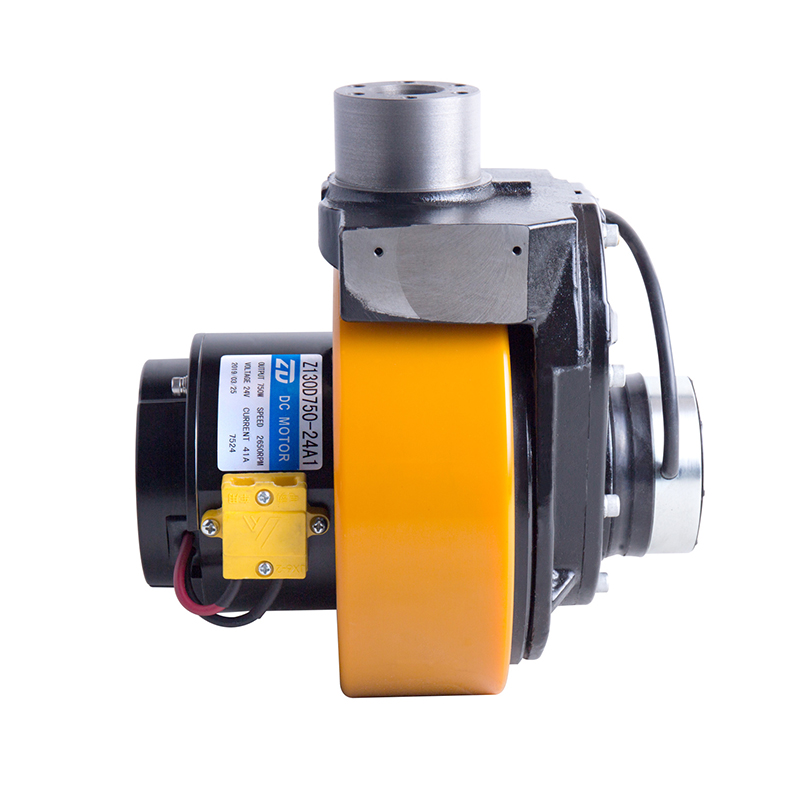

Standard Model
Model Z130D750-24A1-26.5S
Rated Voltage 24VDC
Rated Power 750W
Rated Current 41A±10%
Rated Speed 2650rpm±10%
Rated Torque 2.7N.m
No-load Current ≤11A
No-load Speed 3100rpm±10%
Duty Cycle S2-45min
Insulation Resistance >20MΩ
Brush Life 1200h
Dielectric Strength 660V/S
Insulation Class F
Protection Class IP44
Reducer Model SJ-210-003
Reduction Ratio 24.685K
Brake Voltage 24VDC
Brake Torque 6N.m
Ambient Temperature -10°C ~ +40°C
Noise <70dB(A) (L=100cm)

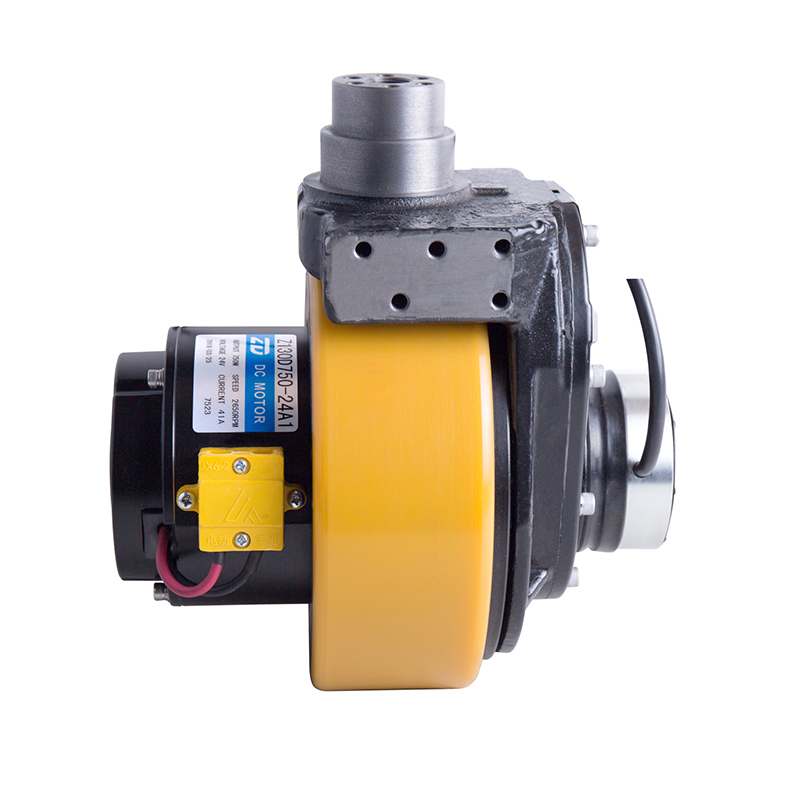

Through-Hole Model
Model Z130D750-24A1-26.5S
Rated Voltage 24VDC
Rated Power 750W
Rated Current 41A±10%
Rated Speed 2650rpm±10%
Rated Torque 2.7N.m
No-load Current ≤11A
No-load Speed 3100rpm±10%
Duty Cycle S2-45min
Insulation Resistance >20MΩ
Brush Life 1200h
Dielectric Strength 660V/S
Insulation Class F
Protection Class IP44
Reducer Model SJ-210-001
Reduction Ratio 24.685K
Brake Voltage 24VDC
Brake Torque 8N.m
Ambient Temperature -10°C ~ +40°C
Noise <70dB(A) (L=100cm)
