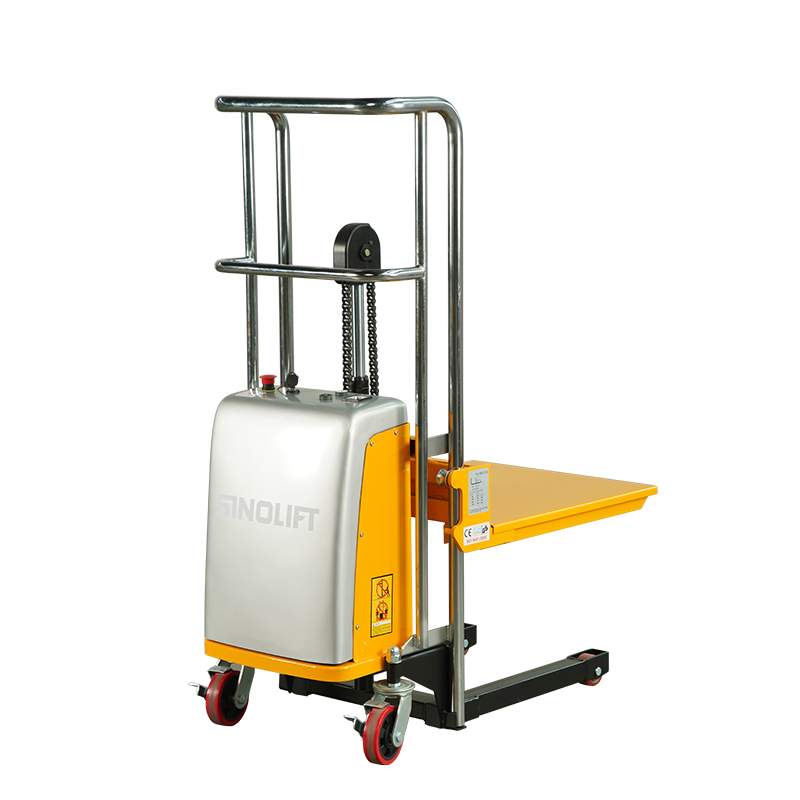

Name:EPS Series Lightweight Material Stacker
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
 Mini Manual Hydraulic Stacker
 Mini Manual Winch Stacker
 Semi-Electric Hydraulic Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger
Spare Parts

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Product Name: EPS & EFP Series Lightweight Electric Stackers

A compact, lightweight stacker series designed for effortless lifting, smooth maneuvering, and reliable load handling in tight warehouse and workshop spaces.

Key Features:

1.Lightweight & Compact Design
Built with high-strength steel and precision engineering, the stacker offers foot-pedal lifting, precise height control, eco-friendly operation, and easy maintenance—ideal for space-limited environments.

2. Two Platform Types for Different Needs

EPS Series: Features a detachable platform, offering flexibility for various pallet and cargo configurations.

EFP Series: Equipped with a fixed platform for enhanced structural stability and durability in continuous heavy-duty use.

Both ensure efficient and adaptable material handling solutions.

3.Seamless Chrome-Plated Steel Frame
The frame is formed from a single seamless steel pipe with symmetrical columns, providing a smooth, sleek, and modern appearance while ensuring long-term rigidity.

4.Durable Integral Forks
The U-shaped cover forks are made from 5mm Q235B carbon steel, bent and welded for superior strength. Powder-coated and baked for durability, they resist deformation under heavy loads.

5. Electric Lifting for Effortless Operation
Effortlessly control lifting via electric buttons at a speed of approx. 5 cm/s, reducing manual effort and improving workflow efficiency.

6. Easy Maneuverability in Tight Spaces
Lightweight body and small turning radius, combined with PU swivel wheels, enable smooth operation even in narrow aisles.

7. Reinforced Chain for Safe & Stable Lifting
Thickened lifting chains ensure steady operation, higher load capacity, and increased safety during lifting and lowering.

Specifications:
Model Unit EPS0412 EPS0415 EFP0412 EFP0415
Rated Load kg 400 400 400 400
Maximum Height mm 1425 1725 1330 1630
Lifting Height mm 1115 1415 1000 1300
Platform Height mm 85–1200 85–1500 200-1200 200-1500
Overall Width mm 600 600 590 590
Platform Size (L×W) mm 650×576 650×576 650×550 650×550
Fork Size (L×W) mm 650×110 650×110 - -
Steering Wheel Size mm Φ127×40 Φ127×40 Φ150×40 Φ150×40
Load Roller Size mm Φ75×40 Φ75×40 Φ150×40 Φ150×40
Lifting Speed (Loaded/Unloaded) mm/s 80/185 80/185 80/185 80/185
Lowering Speed (Loaded/Unloaded) mm/s 75/115 75/115 75/115 75/115
Battery Capacity V/Ah DC 12V/60Ah DC 12V/60Ah DC 12V/60AH DC 12V/60AH
Motor Power W DC 12V/700W DC 12V/700W DC 12V/700W DC 12V/700W
Net Weight kg 109 115 108 114
Packing per Pallet pcs 1 1 1 1
Pallet Dimension (L×W×H) mm 1150×630×1510 1150×640×1860 1150×630×1510 1150×640×1860
