Feature:

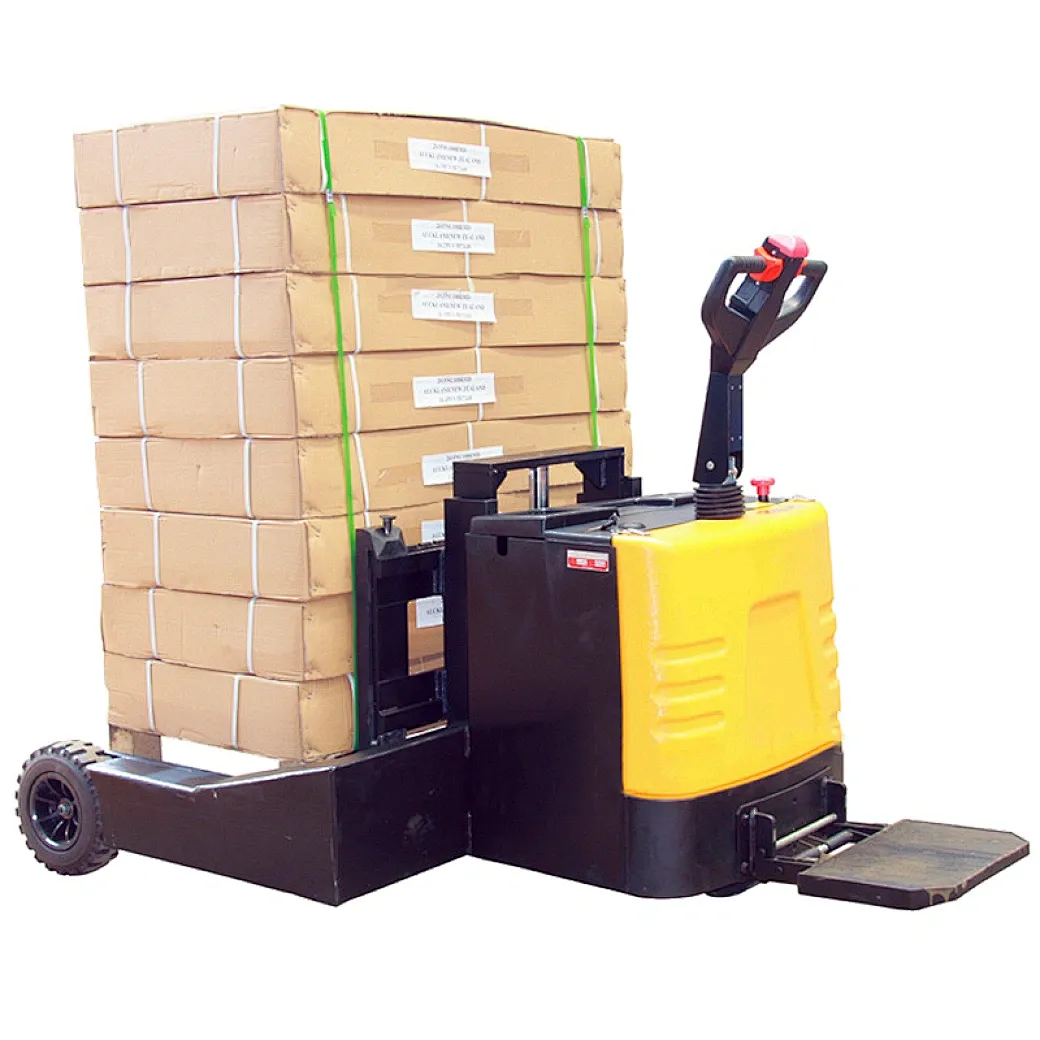

Product Description: WP-200-3.4BW Rough Terrain Electric Pallet Truck

The WP-200-3.4BW Rough Terrain Electric Pallet Truck is a durable, high-capacity solution for challenging environments. With a 2000KG load capacity, it features a DC24V/2000W hydraulic pump, DC24V/1000W drive wheel assembly, and a 12x2V/210Ah battery with a VST224-30 (24V/30A) charger. Designed for rough terrains like construction sites and outdoor warehouses, it combines power and efficiency with an ergonomic CH-1 handle.

Key Features

  • 2000KG Capacity: Handles heavy loads effortlessly on uneven surfaces.
  • Powerful Systems: DC24V/2000W pump and 1000W drive ensure robust performance.
  • Long-Lasting Battery: 12x2V/210Ah supports full-day use with fast charging.
  • Rough Terrain Ready: Excels on gravel, dirt, and slopes.
  • Ergonomic Design: CH-1 handle enhances comfort and control.
Specifications:
Model
WP-200-3.0A-RT WP-200-3.4BW
Drive Type Electric Electric
Operation Type Stand-on Stand-on
Rated Capacity kg 2000 2000
Load Center mm 450 600
Service Weight kg 610 610
Tire (wheel) Solid Rubber Solid Rubber
Drive Wheel mm Φ310×100 Φ300×125
Load Wheel mm 2×Φ310×110 2×Φ300×125
Total Height mm 1350 1425
Lifting Height mm 310 340
Clearance mm 50 80
Handle Height mm 1350 1425
Overall Length mm 2160 2462
Overall Width mm 1540 1588
Fork Length mm 920 1200
Fork Width mm 915 680
Frame Clearance mm 100 100
Inner Width of Straddle Leg mm 1270 1270
Turning Radious mm 1750 1820
Drive Speed (Laden/Unladen) km/h 3.5/4.5 3.5/4.5
Lifting Speed (Laden/Unladen) mm/s 13/25 13/25
Gradeability (Laden/Unladen) % 5/10 5/10
Brake Electro-Magnetic Electro-Magnetic
Drive Motor kw AC 2.0 AC 1.2
Lifting Motor kw DC 2.0 DC 2.0
Battery V/Ah 24/210 24/210
Charger V/A 24/30 24/30
Noise level dB <70 <70
