Feature:

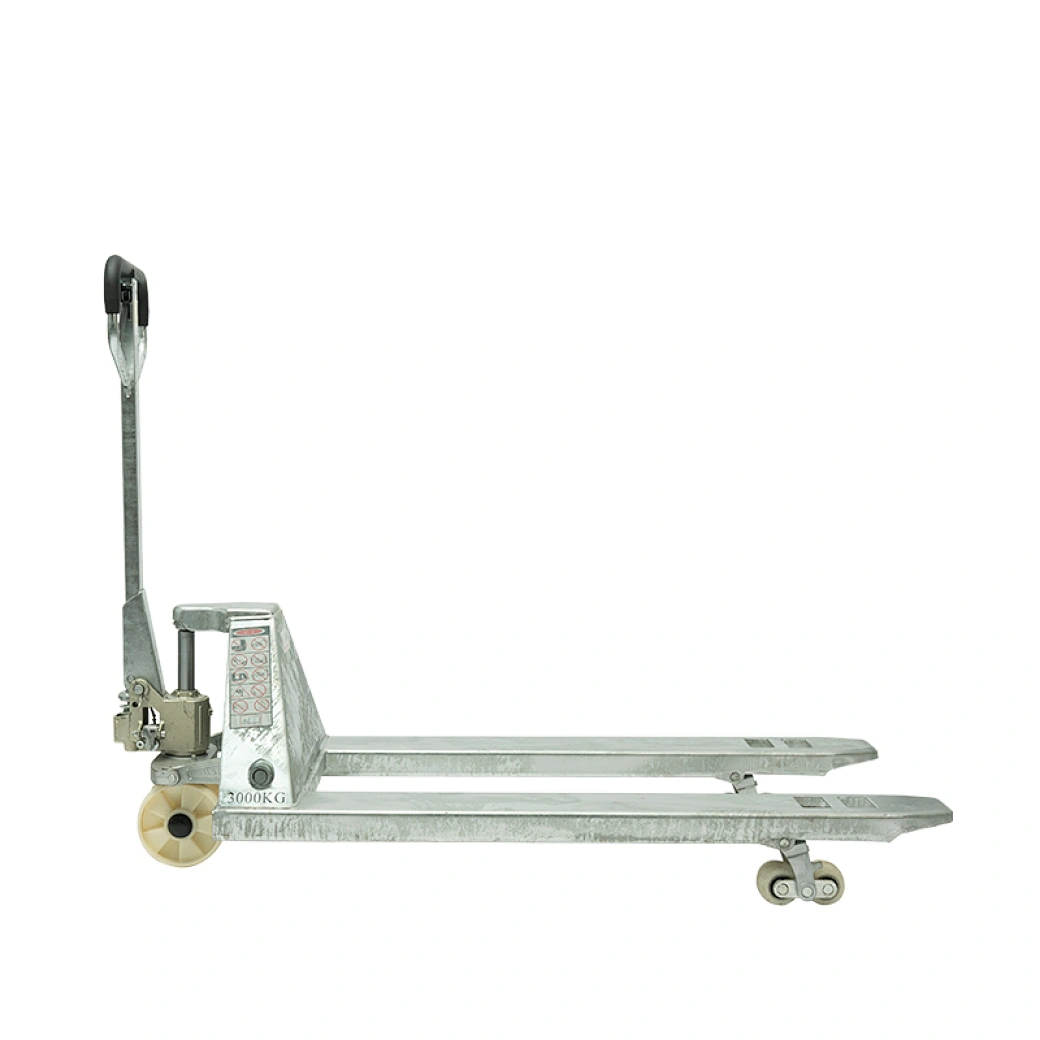

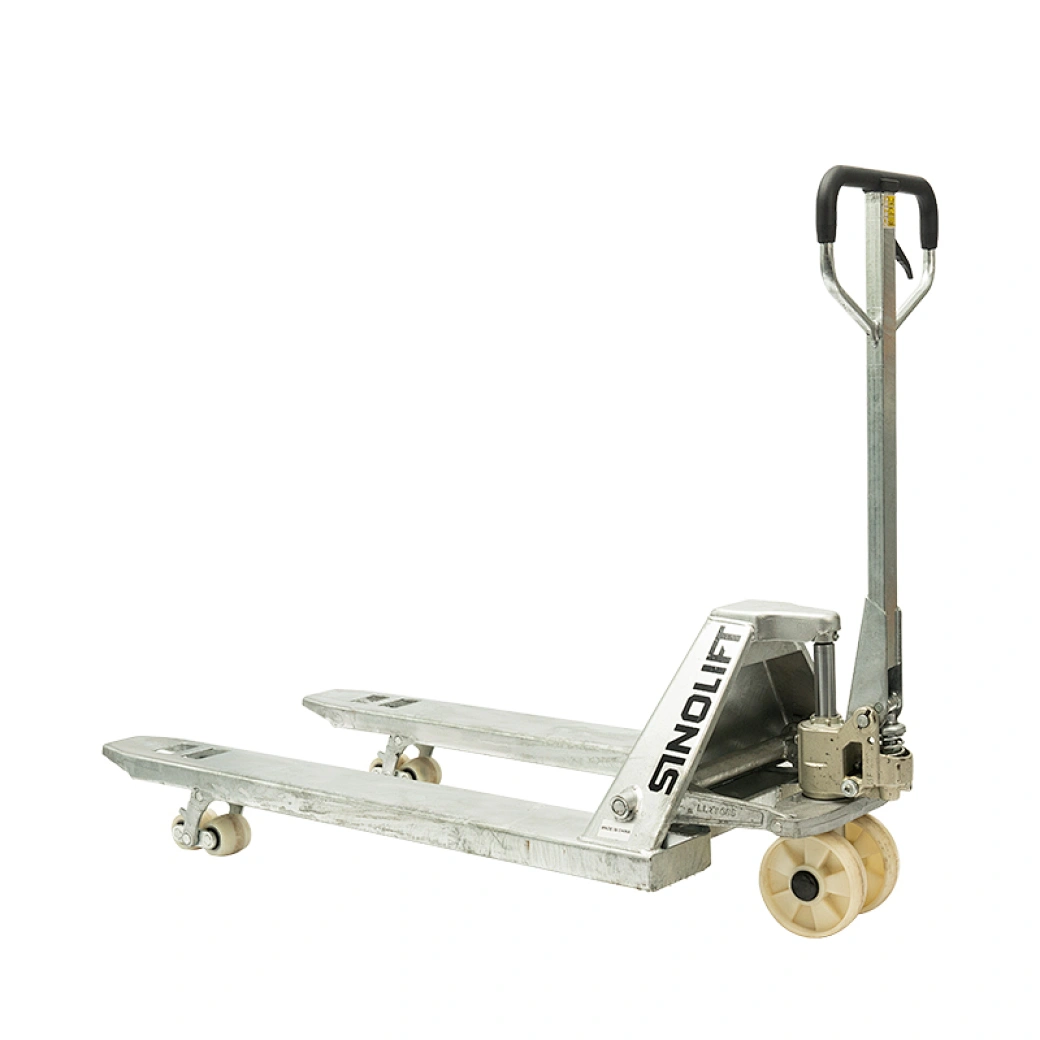

ACG Galvanized Pallet Jack – Built for Clean, Cold, and Corrosive Environments

Designed to perform in cold storage, hygienic, and corrosive settings, the ACG Galvanized Pallet Jack is a reliable solution for industries such as food processing, dairy, and pharmaceuticals.

Key Features:

  • Fully galvanized construction, including the fork frame, wheel forks, push rods, and handle, for excellent corrosion resistance

  • Leak-free galvanized pump ensures long-lasting performance in moist environments

  • Chrome-plated piston and valve provide additional protection against rust and corrosion

  • Nylon steer wheels and load rollers included as standard, ideal for wet and smooth surfaces

Robust, hygienic, and moisture-resistant — the ACG Galvanized Pallet Jack is built to handle tough environments while maintaining cleanliness and durability.

Specifications:
Model ACG25 ACG30
Load capacity (kg) 2500 3000
Load center (mm) 600 600
Min. fork height (mm) 85 85
Max. fork height (mm) 200 200
Steering wheel (mm) Φ180x50 Φ180x50
Load roller Single (mm) Φ82x93 Φ74x93
Load roller Tandem (mm) Φ80x70 Φ80x70
Size of fork (mm) 160x50 160x50
Width overall forks (mm) 550/685 550/685
Fork length (mm) 1150/1220 1150/1220
Overall length (mm) 1580/1650 1580/1650
Turning radius (mm) 1325/1395 1325/1395
Self weight (kg) 72/79 72/79
