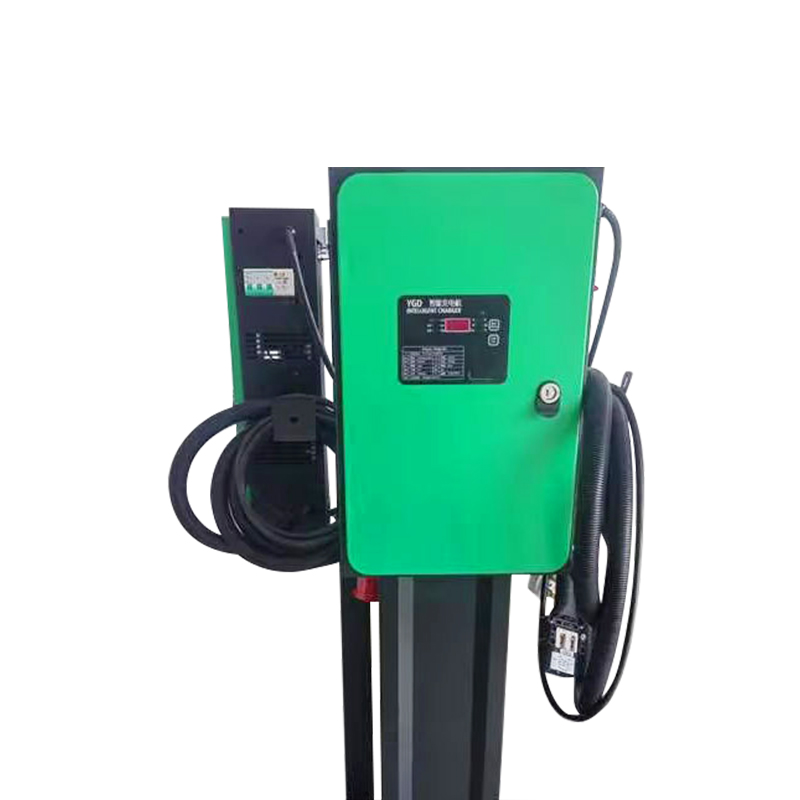

YGD Series

Intelligent Lithium Charger

This machine is suitable for charging electric vehicles such as electric forklifts, pallet trucks and AGV trolleys that use lithium batteries as power.

1. Chip welding technology, safe and worry-free to use.Full automatic disconnect charging, protect the battery charging overheating.

2. The charger automatically shuts down if the connecting cable is disconnected in the middle of charging (battery disconnection detection).

3. Digitron displays battery voltage, charging current, capacity, time, charger working status and other parameters.

4. Scheduled Time Charging Function: Can set timed charging, utilizing off-peak electricity for charging to save electricity costs. (YGD-E30/100 does not have this function)

5. Setting Parameter Power-off Protection: For parameters set by the user, the system can permanently remember them and they will not be lost even in case of a power outage.

Normal Working Conditions

(1) Altitude does not exceed 1000 meters;

(2) Ambient temperature is not higher than + 45℃ and not lower than - 10℃;

(3) Air relative humidity is not greater than 95% (when the ambient temperature is 20±5℃);

(4) Environment free from rain and snow, conductive dust, and explosion hazards;

(5) Environment containing gases or vapors that can corrode metals and damage insulation;

(6) Place without severe vibration and impact;

(7) This machine should be placed in a ventilated and dry place, away from high temperature, dust, and corrosive gases;

(8) To ensure the normal operation of this machine, the surrounding area should be well-ventilated with a certain distance kept from other objects, and the ventilation opening should be checked for blockage.
