Products – Mate Series Lift Trucks

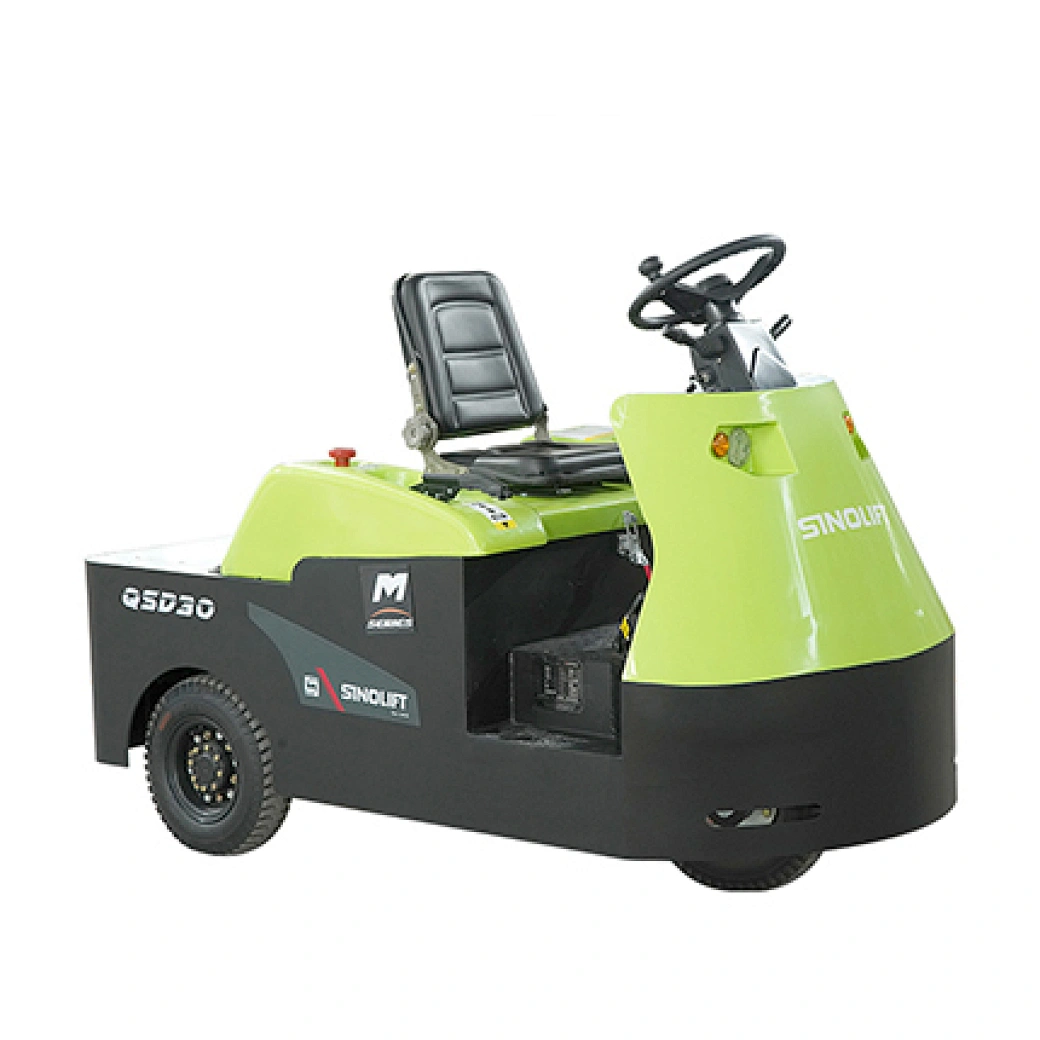

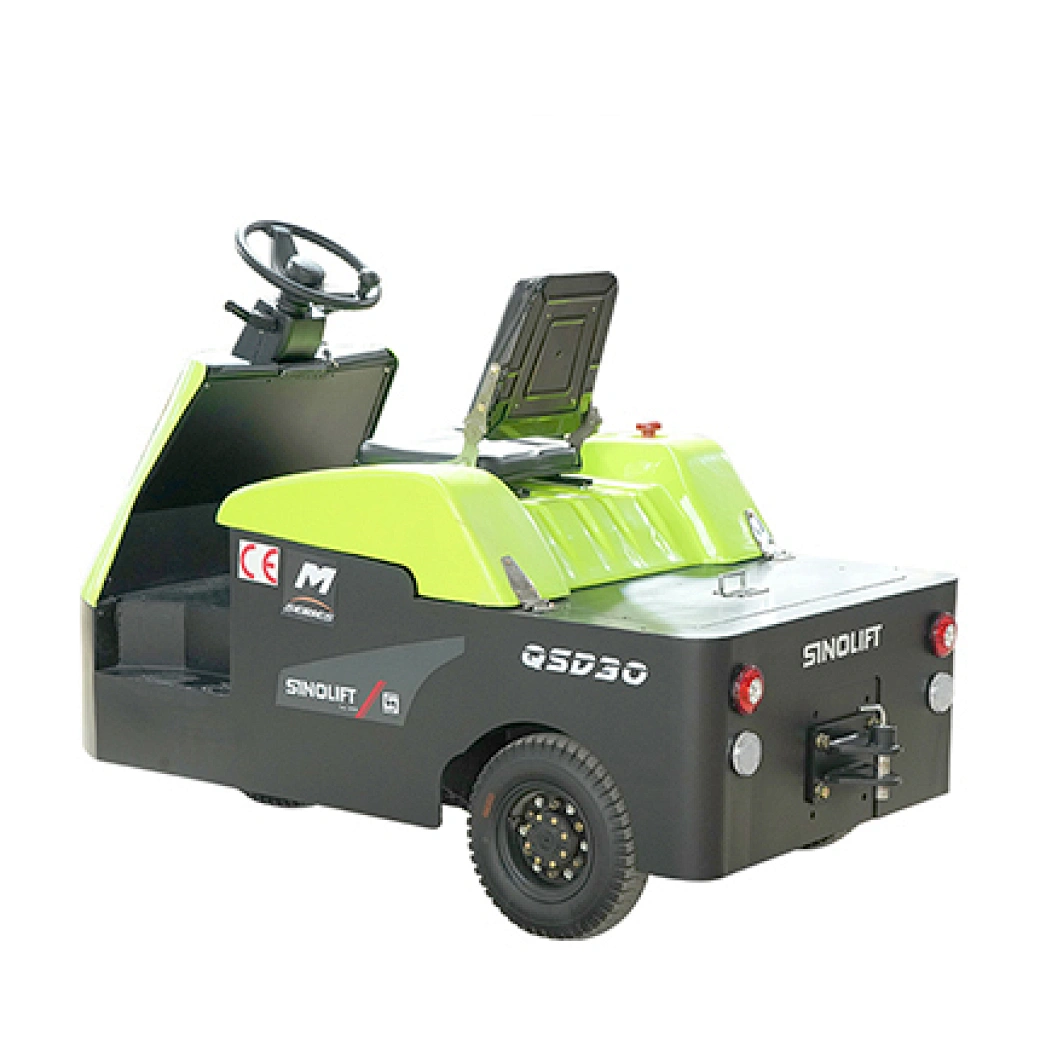

Name:QSD30 QSD60 Rider Electric Towing Tractor
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
 Hand Pallet Truck
 Electric Pallet Truck
 Electric Stacker
 Reach Truck
 Counter-balanced Eletric Forklift
 Electric Tow Tractor
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
  1. The QSD30/QSD60 tow tractor incorporates German engineering and design elements
  2. It outperforms competitors in strength, versatility, and usability
  3. Ideal for frequent towing of heavy products and industrial equipment
  4. Suitable for factories, warehouses, and distribution centers
  5. Battery-powered and produces virtually no noise during operation
  6. Effortlessly and efficiently moves materials

Specifications:
Manufacture's type designation SINOLIFT
Model QSD30 QSD60
Power Type                         Electric
Type of operation                         Seated
Steering Mode               Electric Power Steering
Wheelbase.   y mm 1110 1110
Total Weight(with battery) kg 985 1180
Axde Loadunladen:Drive: sde/ad-bearigside kg / /
Overall length 1 mm 2030 2030
Overall width   W1 mm 1020 1020
Overall height h5 mm 1350 1350
Coupling Height(Hook center above ground) h1 mm 300/350/400 300/350/400
Seat height h2 mm 965 965
Ground Clearance at the center of wheelbase(Min) m1 mm 110 110
Turning Radius Wa mm 1520 1520
  TyreType   Inflatable rubber wheel Inflatable rubber wheel
Tyre Size(Front) 4.00-8 4.00-8
Tyre Size(Rear) 4.00-8 4.00-8
Wheels Quantity, front/rear (x=drving wheels) 1X/2 1X/2
Traveling Speed(aden/unladen) Km/h 7.5/15 7.5/15
Rated Draw-bar Pull F N 3800 4500
MaxGradient Performance S25min (laden/unladen) %   6/15 6/15
Service Brake Type Hydraulic Hydraulic
Parking BrakeType Mechanical Mechanical
Drive Motor Rating(AC)S2-60min kW 5 5
Battery Voltage/Capacity K5 V/Ah 48/200 48/350
Battery Weight kg 360 545
Controller Brand CURTIS CURTIS
Controller Model 1232SE 1232SE
Sound level at driver's ear according to EN 12 053 dB 70 70
Previous:CPD20SA Three Wheel Electric Forklift TruckNext:QSD20M QSD30M Stand-in Electric Towing TractorReturn
