Products – Mate Series Lift Trucks

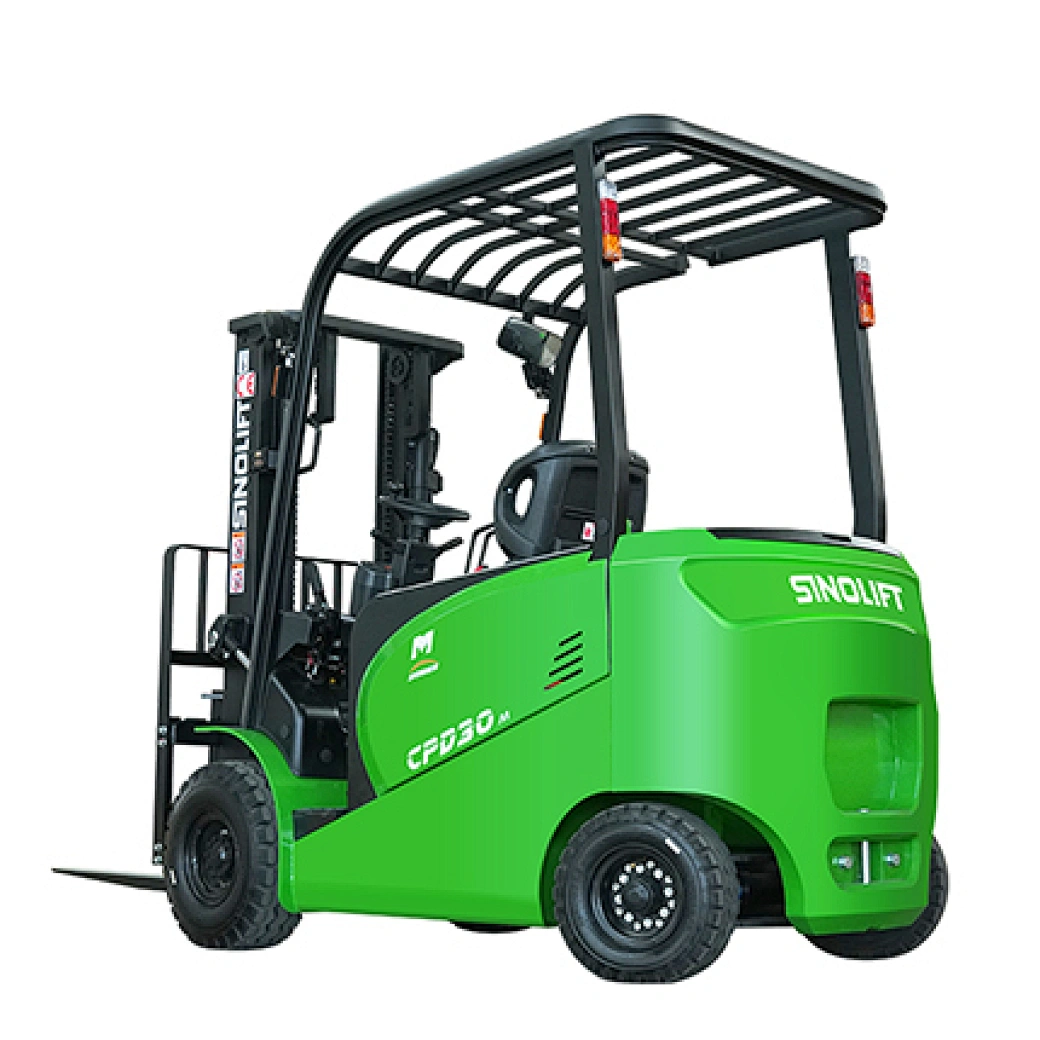

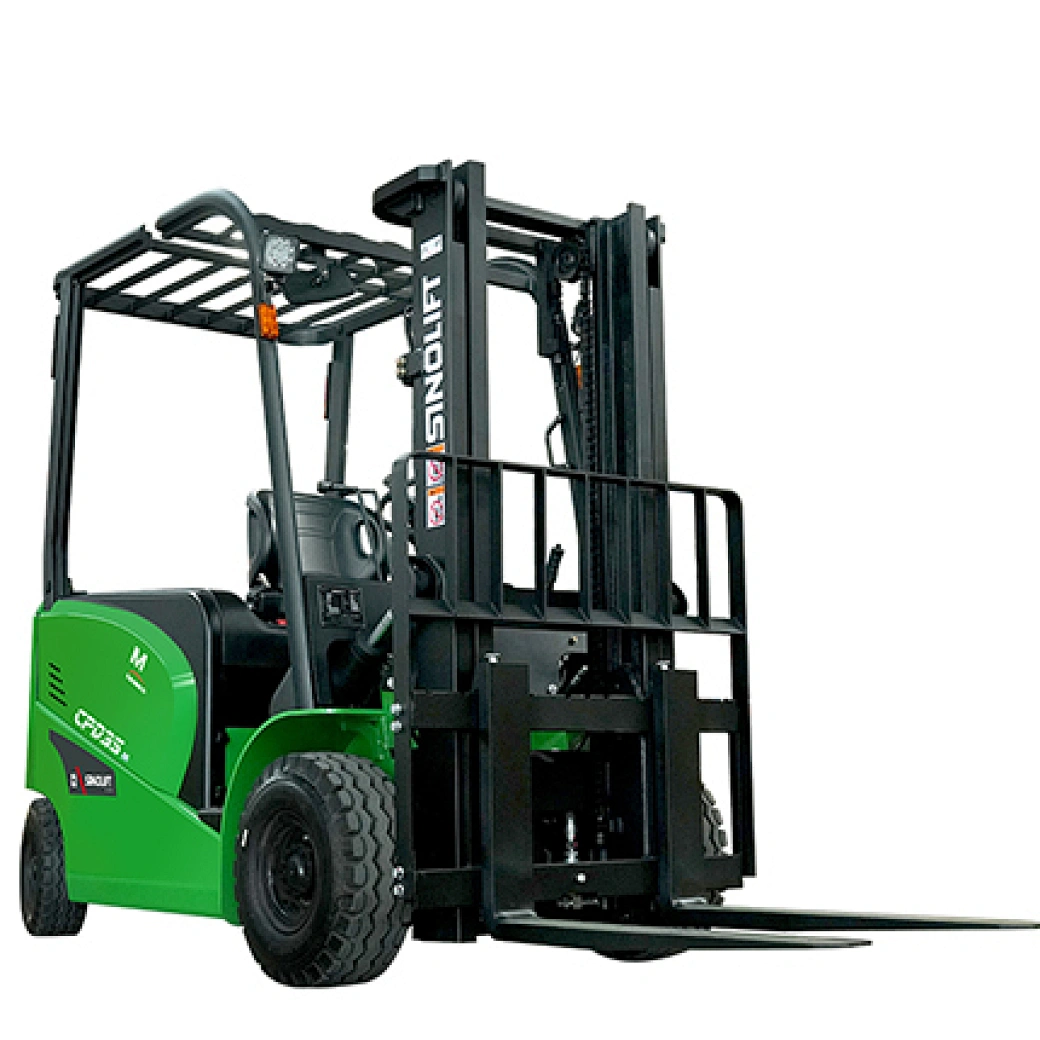

Name：CPD30M CPD35M Electric Forklift Truck
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
 Hand Pallet Truck
 Electric Pallet Truck
 Electric Stacker
 Reach Truck
 Counter-balanced Eletric Forklift
 Electric Tow Tractor
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：
The CPD30M CPD35M Electric Forklift Truck is designed around a fully integrated, space-saving lithium-ion battery. This approach frees up space in the operator's compartment and equips the operation with all the benefits of lithium-ion power, including no emissions, no maintenance, full power until depleted and simple, fast recharging.
This electric CPD Electric Forklift Truck offers ergonomically designed responsive controls, clear all-around visibility and advanced all-wheel steering.
The CPD Electric Forklift Truck is equipped with a mast for easy loading/unloading of cargo. Three types of masts are available, with a maximum height of 6.50 meters. Durable and easy to drive, they can help you with all your handling operations, even in hard-to-reach confined spaces: loading/unloading, stacking, feeding production lines ......
Advantageous features of CPD Electric Forklift Trucks:
Easy access to the cabin thanks to several systems (handle fixed to the left front pillar of the driver's guard, non-slip steps on both sides, large floor space)
Easy to use and maintain
High working comfort thanks to the ergonomic operating platform
Safety is guaranteed
High degree of versatility thanks to accessories and options
Perfect robustness and strong resistance
Specifications：
Model CPD30-MA1 CPD30-MA1S CPD35-MA1Li CPD35-MA1LiS
Power Type Electric Electric Electric Electric
Operation Type Seated Seated Seated Seated
Rated Capacity Q kg 3000 3000 3500 3500
Load Centre c mm 500 500 500 500
Front Overhang L2 mm 480 480 485 485
Wheelbase L1 mm 1685 1685 1685 1685
Mast Tilt Angle α/β ° 6/10 6/10 6/10 6/10
Mast Lowered Height H1 mm 2080 2080 2080 2080
Free Lift Height H3 mm 150 150 150 150
Standard Mast Lift Height H mm 3000 3000 3000 3000
Mast Extended Height H2 mm 4251 4251 4251 4251
Overhead Guard Height H4 mm 2125 2125 2125 2125
Distance from Botoom to Seat mm 1070 1070 1070 1070
Traction Bolt Height mm 303 303 303 303
Overall Length (include forks) L mm 3645 3645 3650 3650
Length to Face of Fork L' mm 2575 2575 2580 2580
Overall Width W1 mm 1265 1265 1360 1360
Fork Size TxWxL4 mm 40/125/1070 40/125/1070 45/125/1070 45/125/1070
Fork Type ISO2328 3A ISO2328 3A ISO2328 3A ISO2328 3A
Fork Carriage Outline Width mm 1100 1100 1100 1100
Fork carriage Spread Width W5 mm 250-1050 250-1050 250-1050 250-1050
Ground Clearance Under Mast Laden H5 mm 115 115 115 115
Ground Clearance at Center of the Wheelbase H6 mm 120 120 120 120
Min. Right Angle Stacking Aisle Width (Pallet 1000x1000) Ast mm 3855 3855 3855 3855
Min. Right Angle Stacking Aisle Width (Pallet 1200x1200) Ast mm 4055 4055 4055 4055
Turing Radius r mm 2230 2230 2230 2230
Service Weight kg 4700 4760 5150 5220
Front Axle Rated Load Capacity with Laden kg 6965 6990 7790 7810
Rear Axle Rated Load with Laden kg 735 770 860 900
Rated Load Capacity with Unladen kg 2220 2240 2245 2265
Rear Axle Rated Load with Unladen kg 2480 2520 2905 2955
Tyre Type Pneumatic Pneumatic Cushion Cushion
Tyre Size (Front) 23×9-10-18PR 23×9-10-18PR 23x10-12 23x10-12
Tyre Size (Rear) 18x7-8-14PR 18x7-8-14PR 18x7-8 18x7-8
Wheel Number (x=Drive Wheel) 2x/2 2x/2 2x/2 2x/2
Front Tread mm 1058 1058 1124 1124
Rear Thread mm 955 955 955 955
Max. Travel Speed (Laden/Unladen) km/h 13.5/14.5 13.5/14.5 13.5/14.5 13.5/14.5
Lifting Speed (Laden/Unladen) mm/s 210/400 210/400 210/400 210/400
Lowering Speed (Laden/Unladen) mm/s 350/350 350/350 350/350 350/350
Max. Gradeability (Laden/Unladen) % 15/20 15/20 15/20 15/20
Service Brake Type Hydraulic Hydraulic Hydraulic Hydraulic
Parking Brake Type Mechanical Mechanical Mechanical Mechanical
Drive Motor Rating S2 60min kW 16.6 16.6 16.6 16.6
Lifting Motor Rating at S315% kW 13/13.5 13/13.5 13/13.5 13/13.5
Battery Voltagl/Capacicty K5 V/Ah 80/500(Max.600) 80/500(Max.600) 83.2/405 83.2/405
Battery Weight kg 1350（1350-1550） 1350（1350-1550） 280（280-350） 280（280-350）
Maximum Allowable Battery Size mm 675x780x964 675x780x964 675x780x964 675x780x964
Controller Brand CURTIS CURTIS CURTIS CURTIS
Controller Model 1236SE+1234SE 1236SE+1234SE 1236SE+1234SE 1236SE+1234SE
Attachment Pressure bar 140 140 140 140
Attachment Oil Volume L/min 65 65 65 65
Hydraulic Oil Tank Volume L >=22 >=22 >=22 >=22
Sound Level at Driver's Ear According to EN 12 053 dB 72 72 72 72
