Model
|
|
|
Electric Forklift Truck
CPD20-MA1
|

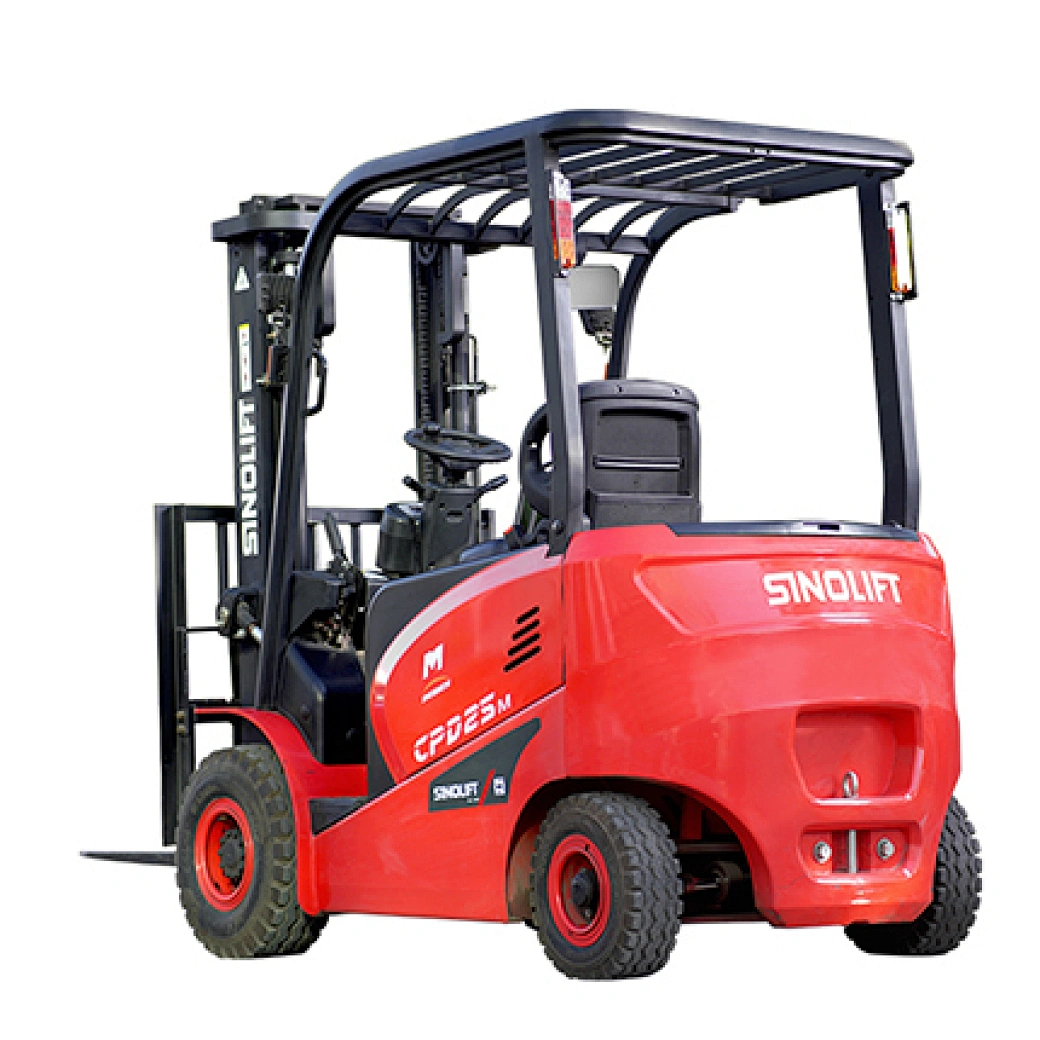

Electric Forklift Truck
CPD25-MA1
|
|
Power Type
|
|
|
Electric
|
Electric
|
|
Operation Type
|
|
|
Seated
|
Seated
|
|
Rated Capacity
|
Q
|
kg
|
2000
|
2500
|
|
Load Centre
|
c
|
mm
|
500
|
500
|
|
Front Overhang
|
L2
|
mm
|
435
|
435
|
|
Wheelbase
|
L1
|
mm
|
1485
|
1485
|
|
Mast Tilt Angle
|
α/β
|
°
|
6/12
|
6/12
|
|
Mast Lowered Height
|
H1
|
mm
|
2050
|
2050
|
|
Free Lift Height
|
H3
|
mm
|
140
|
140
|
|
Standard Mast Lift Height
|
H
|
mm
|
3000
|
3000
|
|
Mast Extended Height
|
H2
|
mm
|
4025
|
4025
|
|
Overhead Guard Height
|
H4
|
mm
|
2125
|
2125
|
|
Distance from Botoom to Seat
|
|
mm
|
1070
|
1070
|
|
Traction Bolt Height
|
|
mm
|
308
|
308
|
|
Overall Length (include forks)
|
L
|
mm
|
3400
|
3400
|
|
Length to Face of Fork
|
L'
|
mm
|
2330
|
2330
|
|
Overall Width
|
W1
|
mm
|
1265
|
1265
|
|
Fork Size
|
TxWxL4
|
mm
|
40/122/1070
|
40/122/1070
|
|
Fork Type
|
|
|
ISO2328 2A
|
ISO2328 2A
|
|
Fork Carriage Outline Width
|
|
mm
|
1038
|
1038
|
|
Fork carriage spread width
|
W5
|
mm
|
247-995
|
247-995
|
|
Ground Clearance Under Mast Laden
|
H5
|
mm
|
115
|
115
|
|
Ground Clearance at Center of the Wheelbase
|
H6
|
mm
|
120
|
120
|
|
Min. Right Angle Stacking Aisle Width (Pallet 1000x1000)
|
Ast
|
mm
|
3715
|
3715
|
|
Min. Right Angle Stacking Aisle Width (Pallet 1200x1200)
|
Ast
|
mm
|
3915
|
3915
|
|
Turing Radius
|
r
|
mm
|
2080
|
2080
|
|
Service Weight
|
|
kg
|
3630
|
4050
|
|
Front Axle Rated Load Capacity with laden
|
|
kg
|
5035
|
5820
|
|
Rear Axle Rated Load with Laden
|
|
kg
|
595
|
730
|
|
Rated Load Capacity with unladen
|
|
kg
|
1775
|
1745
|
|
Rear Axle Rated Load with unladen
|
|
kg
|
1855
|
2305
|
|
Tyre Type
|
|
|
Pneumatic
|
Pneumatic
|
|
Tyre Size (Front)
|
|
|
23×9-10-18PR
|
23×9-10-18PR
|
|
Tyre Size (Rear)
|
|
|
18X7-8-14PR
|
18X7-8-14PR
|
|
Wheel Number (x=Drive Wheel)
|
|
|
2x/2
|
2x/2
|
|
Front Tread
|
|
mm
|
1058
|
1058
|
|
Rear Thread
|
|
mm
|
950
|
950
|
|
Max. Travel Speed (Laden/Unladen)
|
|
km/h
|
14/15
|
14/15
|
|
Lifting Speed (Laden/Unladen)
|
|
mm/s
|
260/430
|
260/430
|
|
Lowering Speed (Laden/Unladen)
|
|
mm/s
|
450/410
|
450/410
|
|
Max. Gradeability (Laden/Unladen)
|
|
%
|
15/20
|
15/20
|
|
Service Brake Type
|
|
|
Hydraulic
|
Hydraulic
|
|
Parking Brake Type
|
|
|
Mechanical
|
Mechanical
|
|
Drive Motor Rating S2 60min
|
|
kW
|
11
|
11
|
|
Lifting Motor Rating at S315%
|
|
kW
|
12
|
12
|
|
Battery Voltagl/Capacicty K5
|
|
V/Ah
|
48/630
(600-x-700)
|
48/630
(600-x-700)
|
|
Battery Weight
|
|
kg
|
990
（930-1200）
|
990
（930-1200）
|
|
Maximum Allowable Battery Size
|
|
mm
|
964x580x675
|
964x580x675
|
|
Controller Brand
|
|
|
CURTIS
|
CURTIS
|
|
Attachment Pressure
|
|
bar
|
140
|
140
|
|
Attachment Oil Volume
|
|
L/min
|
65
|
65
|
|
Hydraulic oil tank volume
|
|
L
|
35
|
35
|
|
Sound Level at Driver's Ear According to EN 12 053
|
|
dB
|
72
|
72
|
