Manufacturer
|
SINOLIFT
|
|
Model
|
|
|

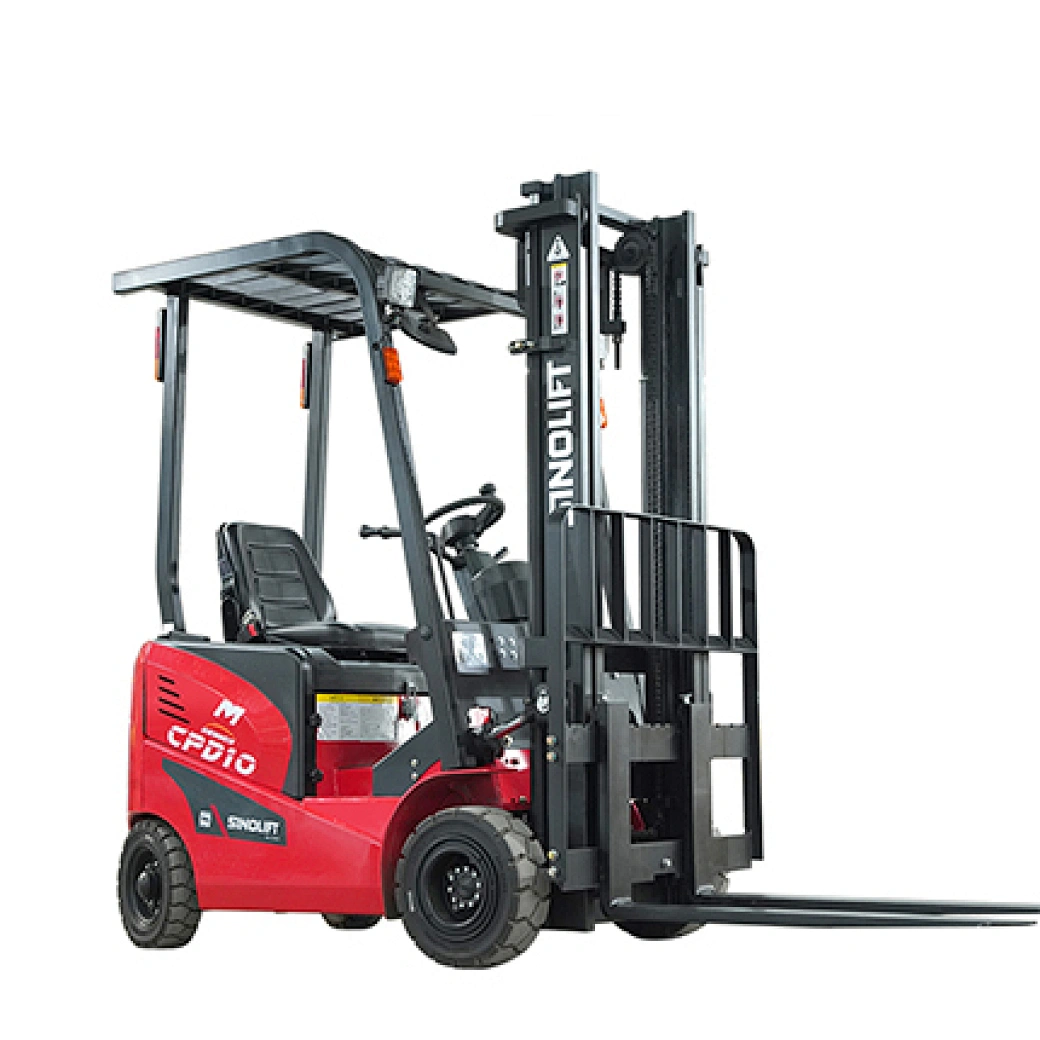

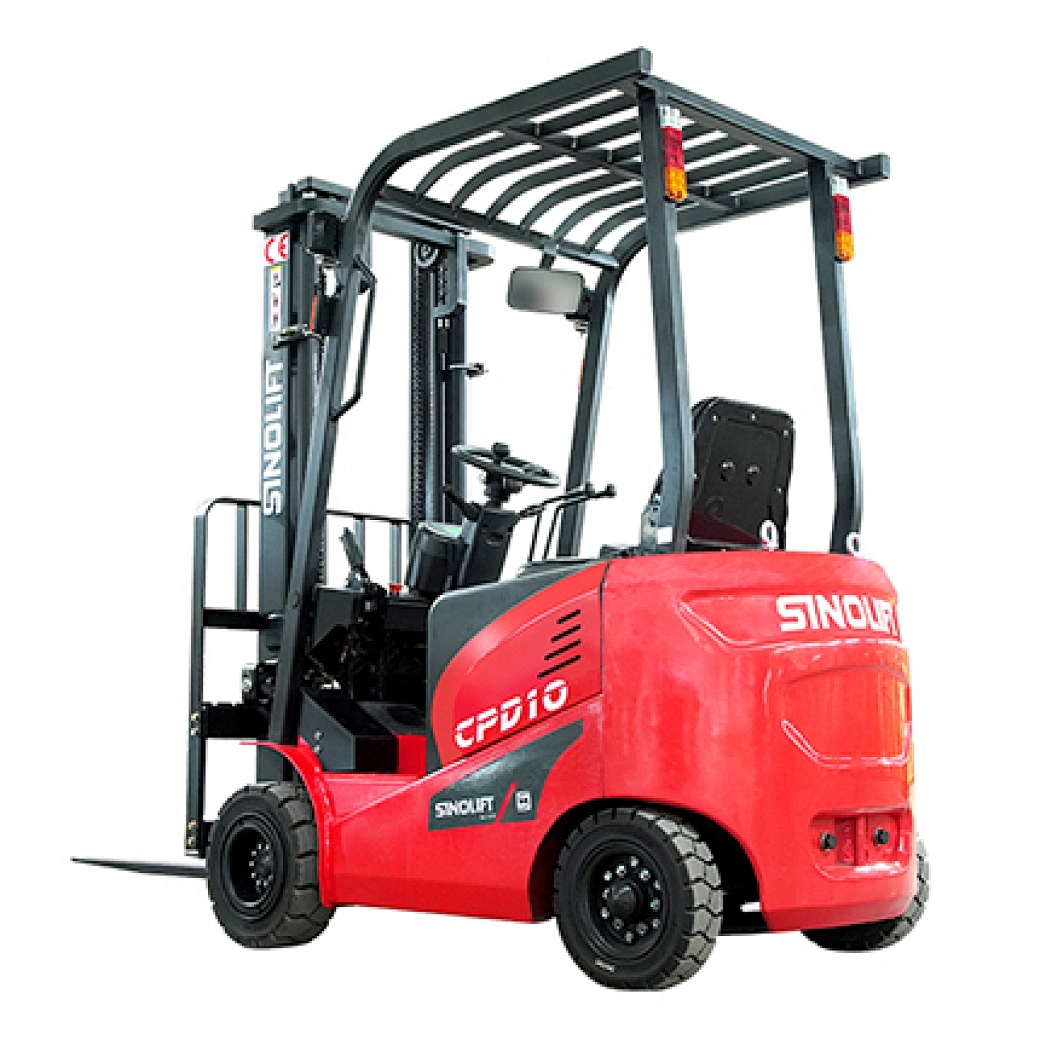

CPD08M
|
CPD10M
|
CPD12M
|
CPD16M
|
|
Power Type
|
|
|
Electric
|
|
Type of operation
|
|
|
Seated
|
|
Load capacity/rated load
|
Q
|
kg
|
800
|
1000
|
1200
|
1 600
|
|
Load center distance
|
C
|
mm
|
400
|
400
|
|
Loaddistance, center of drive axle to fork
|
L2
|
mm
|
314
|
354
|
|
Wheelbase
|
L1
|
mm
|
1150
|
1250
|
|
Mast/fork carriage tilt forward/backward
|
a/B
|
|
5/8
|
5/8
|
|
Mast lowered height
|
H1
|
mm
|
1990
|
2020
|
|
Free lift height
|
H3
|
mm
|
/
|
/
|
|
Standard mast lifting height
|
H
|
mm
|
3000
|
3000
|
|
Extended mast height
|
H2
|
mm
|
4090
|
4075
|
|
Overhead load guard height
|
H4
|
mm
|
2000
|
2100
|
|
Seat height
|
|
mm
|
920
|
1020
|
|
Coupling height
|
|
mm
|
300
|
320
|
|
Overall length (with fork)
|
L
|
mm
|
2580
|
2800
|
|
Overall length (without fork)
|
L"
|
mm
|
1810
|
2030
|
|
Overall width
|
W1
|
mm
|
990
|
990
|
|
Fork dimension
|
TxWxL4
|
mm
|
30x100x770
|
30x100x770
|
|
Type of fork carriage
|
|
|
ISO23282A
|
ISO2328 2A
|
|
Fork carriage width
|
|
mm
|
1060
|
1060
|
|
Fork carriage spread width
|
W5
|
mm
|
970
|
970
|
|
Ground clearance under mast laden
|
H5
|
mm
|
100
|
130
|
|
Ground clearance from center of wheelbase
|
H6
|
mm
|
130
|
140
|
|
Min. Right Angle Stacking Aisle Width (pallet size 1000x1000)
|
Ast
|
mm
|
3264
|
3454
|
|
Min. Right Angle Stacking Aisle Width (pallet size 1200x1200)
|
Ast
|
mm
|
3064
|
3254
|
|
Turning radius
|
r
|
mm
|
1550
|
1700
|
|
Weight (with battery)
|
|
kg
|
1585
|
1645
|
2010
|
2070
|
|
Front axle rated load (laden)
|
|
kg
|
2225
|
2480
|
3010
|
3460
|
|
Rear axle rated load (laden)
|
|
kg
|
160
|
165
|
200
|
210
|
|
Front axle rated load (unladen)
|
|
kg
|
665
|
690
|
845
|
870
|
|
Rear axle rated load (unladen)
|
|
kg
|
920
|
955
|
1165
|
1200
|
|
Tyre type
|
|
|
Solid tyre
|
Solid tyre
|
|
Front tyre size
|
|
|
459x157
|
21x7x15
|
|
Rear tyre size
|
|
|
15x4.5-8/3.00D-8
|
5.00-8-8PR/3.00D-8
|
|
Tyre quantity (x=driving wheels)
|
|
|
2x/2
|
2x/2
|
|
Front-wheel span
|
|
mm
|
915
|
930
|
|
Rear-wheel span
|
|
mm
|
815
|
810
|
|
Travel speed (laden/unladen)
|
|
km/h
|
12/13
|
12/13
|
|
Lift speed (laden/unladen)
|
|
mm/s
|
192/200
|
200/217
|
|
Lowering speed (laden/unladen)
|
|
mm/s
|
400/294
|
370/265
|
|
Max. Gradeability (Laden/Unladen)
|
|
%
|
12/15
|
12/15
|
|
Service brake
|
|
|
Hydraulic
|
Hydraulic
|
|
Parking brake
|
|
|
Mechanical
|
Mechanical
|
|
Drive motor rating S260min
|
|
kW
|
3.7kw permanent magnet synchronous motor
|
5.5kw permanent magnet synchronous motor
|
|
Lift motor rating at S315%
|
|
kW
|
3.7kw permanent magnet synchronous motor
|
5.5kw permanent magnet synchronous motor
|
|
Battery voltage/normal capacity K5
|
|
V/Ah
|
60V/120AH
|
60V/150AH
|
60V/180AH
|
60V/200AH
|
|
Battery weight
|
|
kg
|
195
|
195
|
345
|
345
|
|
Maximum allowable battery size
|
|
mm
|
/
|
/
|
/
|
/
|
|
Drive controller manufacture
|
|
|
TIANFU
|
TIANFU
|
TIANFU
|
TIANFU
|
|
Type of drive controller
|
|
|
TFCB60400-CAN
|
TFCB60400-CAN
|
TFCB60500-CAN
|
TFCB60500-CAN
|
|
Operating pressure for attachments
|
|
bar
|
74
|
92
|
110
|
147
|
|
Oil volume for attachments
|
|
L/min
|
/
|
/
|
/
|
/
|
|
Hydraulicoil tank volume
|
|
L
|
18.3
|
18.3
|
18.3
|
18.3
|
|
Sound level at driver's ear according to EN 12 053
|
|
dB
|
70
|
70
|
70
|
70
|
