Manufacturer Brand
|
SINOLIFT
|
Model
|
|
|

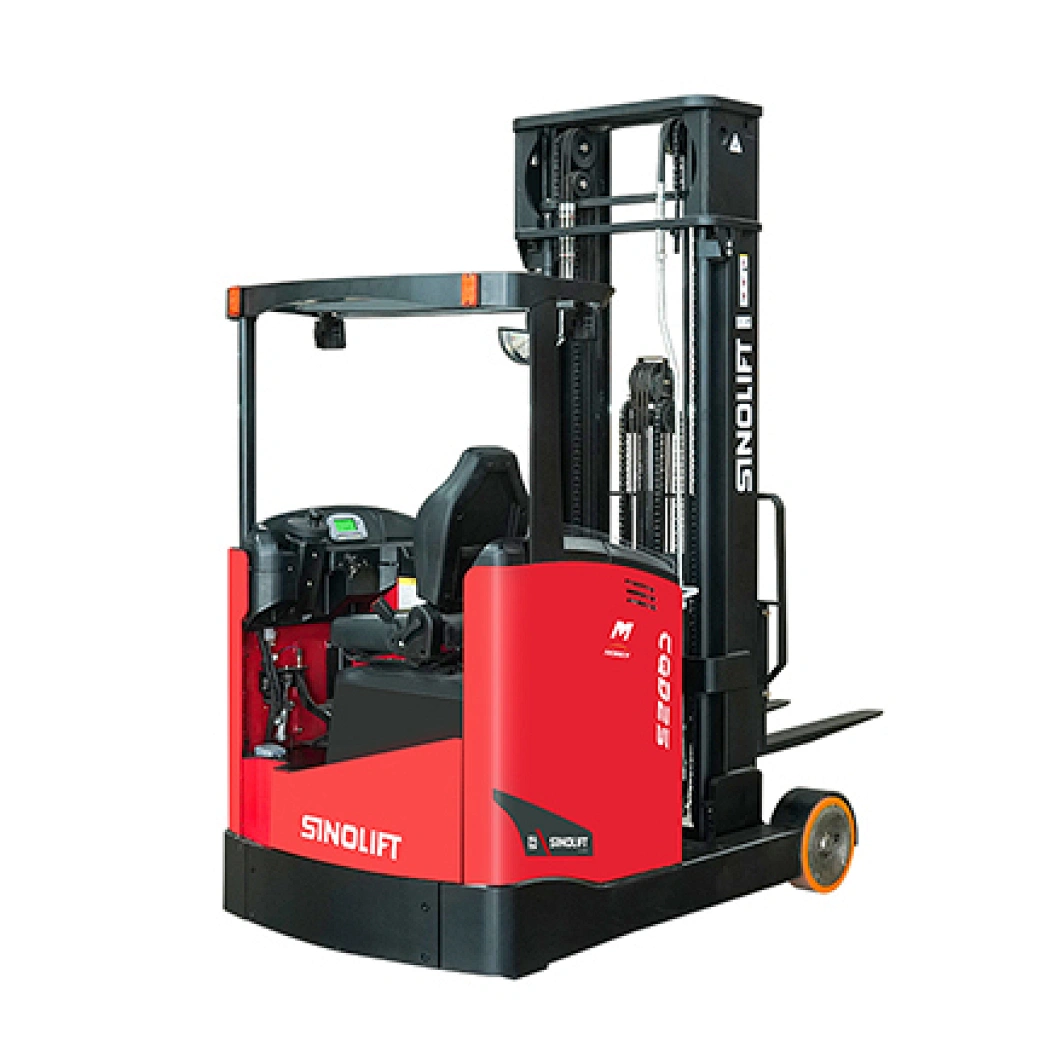

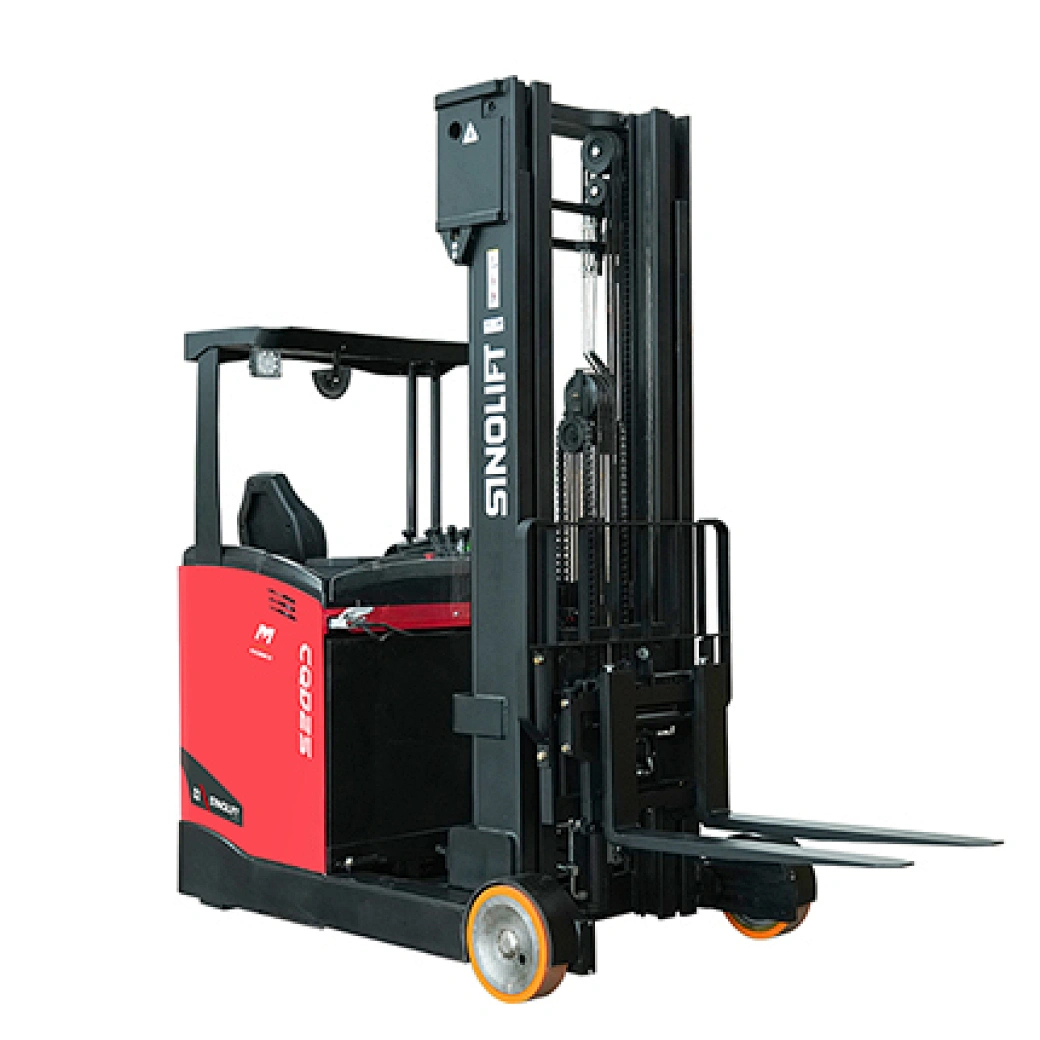

CQD25A
|
Power Type
|
|
|
Electric
|
Type of Operation
|
|
|
Seated
|
Steering Mode
|
|
|
Electric Power Steering
|
Load Capacity/Rated Load
|
Q
|
kg
|
2500
|
Load Center Distance
|
c
|
mm
|
600
|
Load Distance. center of drive axle to fork
|
x
|
mm
|
160
|
Wheelbase
|
y
|
mm
|
1600
|
Total Weight (with Battery)
|
|
kg
|
3800
|
Axle Load (laden):Drive side/Load-bearing Side
|
|
kg
|
/
|
Axle Load (unladen):Drive side/Load-bearing Side
|
|
kg
|
/
|
Overlength (Mast Retracted)
|
L1
|
mm
|
2470
|
Frame Length (Without Fork)
|
L7
|
mm
|
2040
|
Overall Width
|
b2
|
mm
|
1270
|
Height of Overhead Guard
|
h6
|
mm
|
2160
|
Lift Height
|
h3
|
mm
|
6500
|
Height with Mast Lowered
|
h1
|
mm
|
2856
|
Height with Mast Extended
|
h4
|
mm
|
7530
|
Free Lift Height
|
h5
|
mm
|
2260
|
Fork Dimension
|
I/e/s
|
mm
|
1070/122/40
|
Type of Fork Carriage A, B Class
|
|
|
2A
|
Fork Spread Width
|
|
mm
|
250
|
Fork Carriage Width
|
|
mm
|
820
|
Fork Tilt (Forward/Backward)
|
a/B
|
°
|
2/4
|
Distance of Straddle Leg
|
b3
|
mm
|
924
|
Reach Distance
|
L4
|
mm
|
650
|
Height of Straddle Leg
|
h6
|
mm
|
310
|
Ground Clearance at The Center of Wheelbase (Min)
|
m1
|
mm
|
80
|
Turning Radius
|
Wa
|
mm
|
1915
|
Aisle Width for Pallets 1000 x 1200
|
Ast
|
mm
|
2952
|
Aisle Width for Pallets 800 x 1200
|
Ast
|
mm
|
2997
|
Tyre Type
|
|
|
Polyurethane
|
Tyre Size (Front)
|
|
mm
|
Ø350X100
|
Tyre Size (Auxiliary Wheel)
|
|
mm
|
Ø180X55
|
Tyre Size (Driving Wheel)
|
|
mm
|
Ø343X140
|
Wheels Quantity, front/rear (x=Diving Wheels)
|
|
|
2/1x+2
|
Traveling Speed (laden/unladen)
|
|
Km/h
|
10/10.5
|
Llfting Speed (laden/unladen)
|
|
m/s
|
0.35/0.6
|
Lowering Speed(aden/unladen)
|
|
m/s
|
0.5/0.5
|
Max. Gradient Performance S2 5min (laden/unladen)
|
|
%
|
10/15
|
Service BrakeType
|
|
|
Hydraulic
|
Parking Brake Type
|
|
|
Electromagnetic
|
Drive Motor Rating (AC) S2-60min
|
|
kW
|
6.5
|
Lift Motor Rating (AC)S3-15%
|
|
kw
|
13
|
Battery Voltage/Capacity K5
|
|
V/Ah
|
48/600
|
Battery Weight
|
|
kg
|
650
|
Controller Brand
|
|
|
CURTIS
|
Controller Model
|
|
|
2-1234SE+1222
|
Sound Level Driver's Ear According to EN 12053
|
|
dB
|
70
|
Battery Change
|
|
|
Side Roll Out
|
