Products – Mate Series Lift Trucks

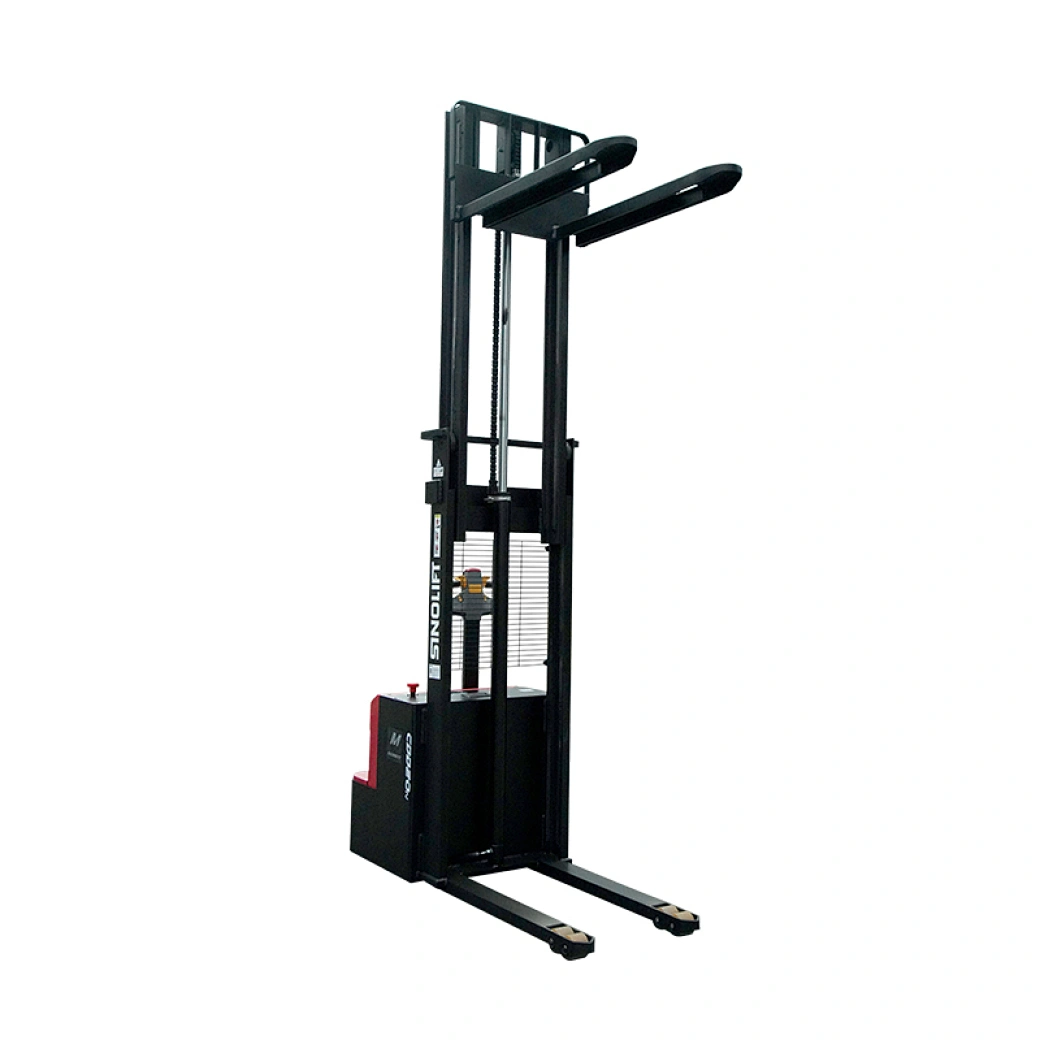

Name:CDD20N Full Electric Stacker
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
 Hand Pallet Truck
 Electric Pallet Truck
 Electric Stacker
 Reach Truck
 Counter-balanced Eletric Forklift
 Electric Tow Tractor
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1. The optimally designed four-wheel structure makes the chassis stable and safe.

2. High-quality C-shaped gantry alloy steel, the rigidity is 30% higher than that of ordinary carbon steel.

3. Built-in high-energy sealed battery, long-term maintenance-free use, no need to add liquid or water during the service life.

4. Stepless control of the driving speed to meet the rhythm of different drivers.

5. The layout of all parts and pipelines of the whole vehicle is reasonable, the maintenance is convenient, and there is no trouble in maintenance of similar vehicles.

6. The vehicle has a beautiful appearance and beautiful curves.

7. Automatic cut-off function protects batteries against a deep discharge ensuring a long operational lifetime.

8. Proven components such as sensors, micro-switches, controllers, and hydraulic units from quality supplies.

9. Includes a safety reverse button that propels the unit away from the operator.

10. Emergency stop button cuts power to the unit immediately upon pressing and engages the electromagnetic brake.

11. Safety Features include an emergency reverse button, emergency shut-off button, horn, and load stabilizing casters

Specifications:
Model CDD20N
Driving type Electric
Operating type Pedestrain
Capacity kg 2000
Load center distance mm 600
Wheel base mm 1535
Service weight kg 995
Overall length mm 2080
Overall width mm 880
Fork dimension mm 1150*170*60
Fork width mm 560/685
Height, Fork Lowered mm 85
Ground Clearance mm 30
Turning Radius mm 1760
Aisle Width, with pallet 1000x1200 mm 2600
Aisle Width, with pallet 800x1200  mm 2525
Wheel type PU
Wheel dimension, front mm Φ85*70
Wheel dimension, rear mm Φ250*80
Traveling speed, full load/no-load km/h 4
Lifting speed, full load/no-load mm/s 85/130
Descending speed, full load/no-load mm/s 100/85
Driving Motor Power AC kw 1.5
Lifting Motor Power DC kw 3
Battery V/Ah 24/150

Mast Size Lifting Height(h1) Machine Height with Mast Lowered(h2) Machine Height with Mast Extended(h4) Load Capacity
mm mm mm kg
Single Mast 1600 2150 2150 2000
Duplex Mast 2000 1580 2550 2000
2500 1830 3050 2000
3000 2080 3550 2000
3500 2330 4050 1600
