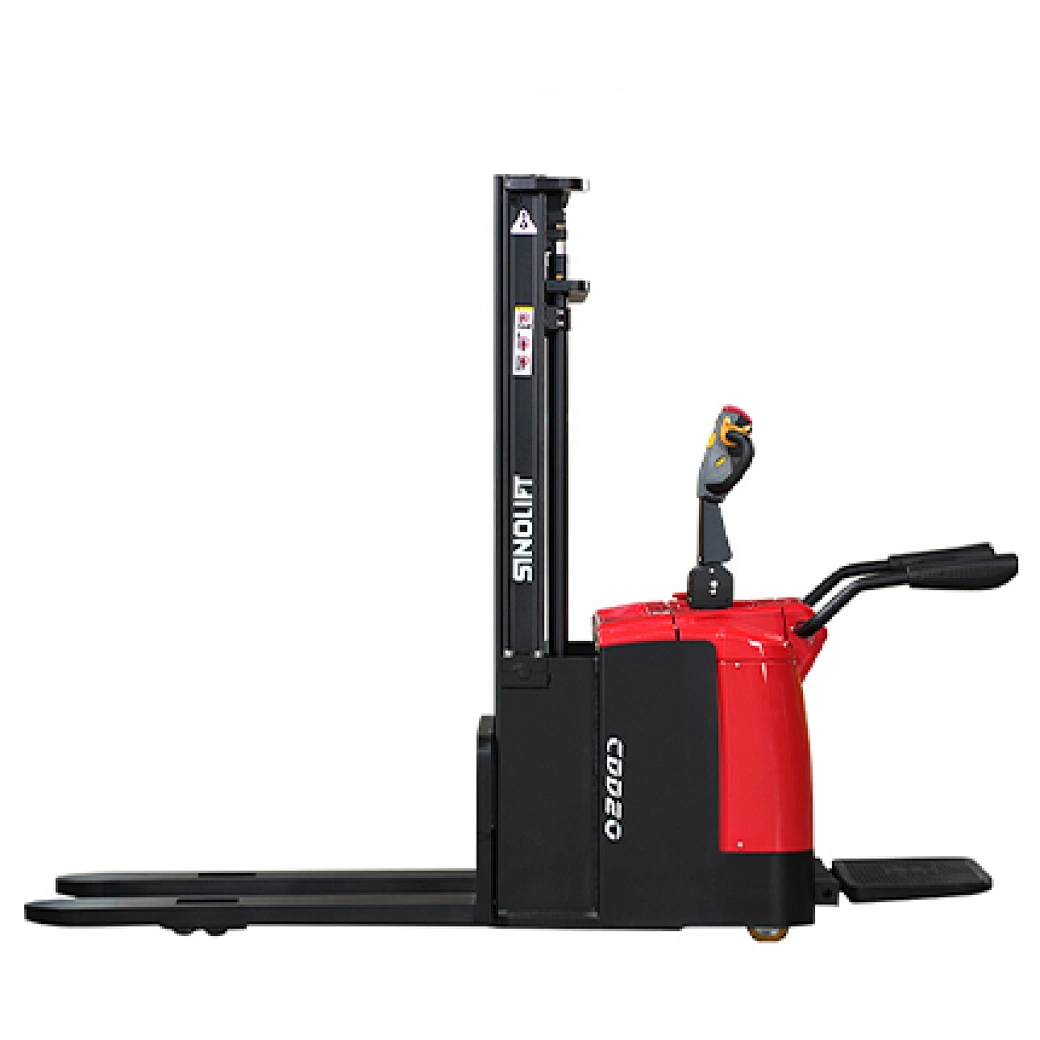

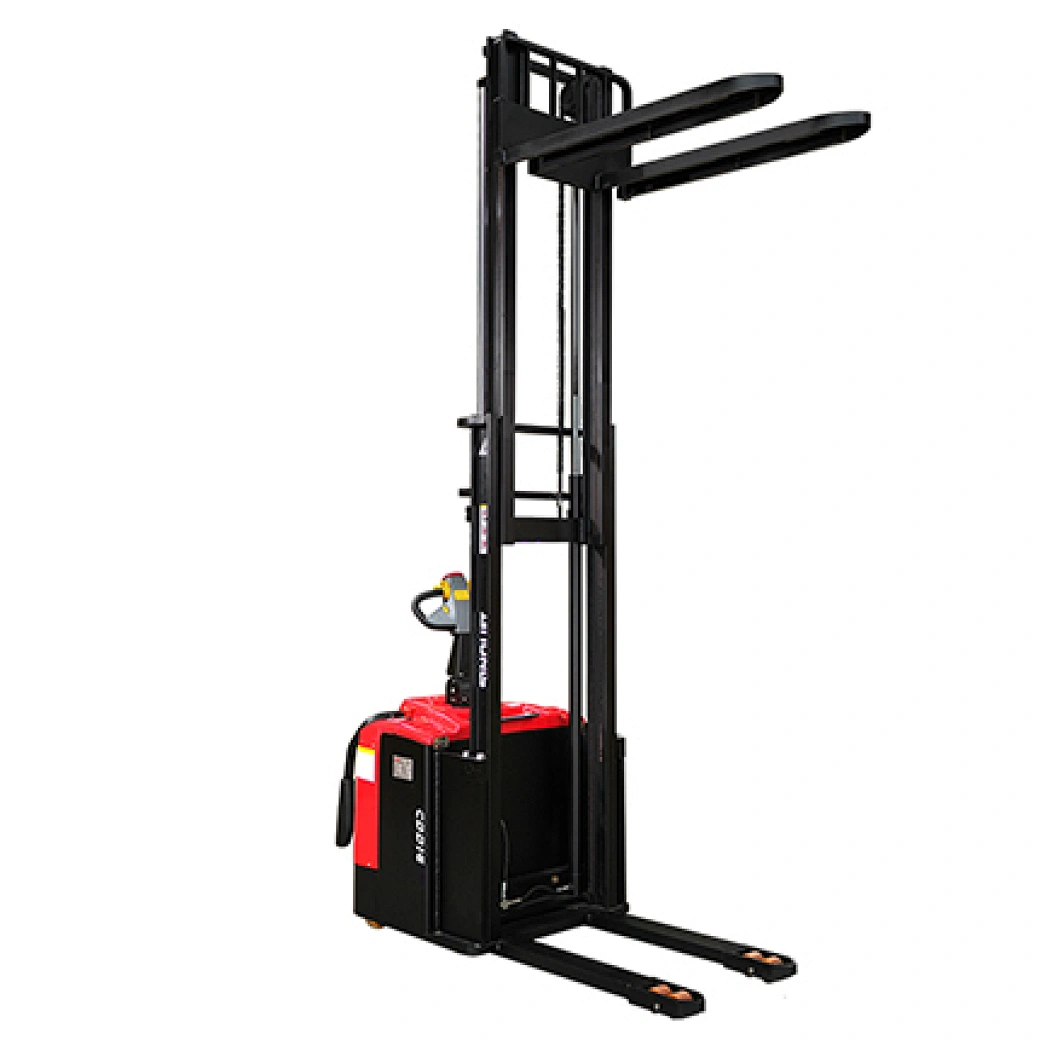

Manufacture's type designation
|
SINOLIFT
|
|
Model
|
|
|
Electric Stacker
CDD16M
|
Electric Stacker
CDD20M
|
|
Power Type
|
Electric
|
|
Type of Operation
|
Stand-on
|
|
Steering Mode
|
Electric Power Steering
|
|
Load capacity/Rated load
|
Q
|
kg
|
1600
|
2000
|
|
Load Center Distance
|
C
|
mm
|
600
|
600
|
|
Wheelbase
|
y
|
mm
|
1500
|
1500
|
|
Total Weight (with battery)
|
|
kg
|
1300
|
1350
|
|
Axle Load(laden):Drive side/Load-bearing side
|
|
kg
|
1115/1785
|
1285/2065
|
|
Axle Load(unladen):Drive Side/Load-bearing side
|
|
kg
|
947/353
|
985/365
|
|
Overall Length (Pedal Retracted/Expanded)
|
L1/L2
|
mm
|
2210/2645
|
2210/2645
|
|
Overall Width
|
W1
|
mm
|
880
|
880
|
|
Lift Height
|
h1
|
mm
|
Refer to mast parameter
|
|
Lowered Mast Height
|
h2
|
mm
|
Refer to mast parameter
|
|
Extended Mast Height
|
h4
|
mm
|
Refer to mast parameter
|
|
Free Lift Height
|
h5
|
mm
|
Refer to mast parameter
|
|
Fork Dimension
|
l/e/s
|
mm
|
1220×185×55
|
1220×185×55
|
|
Width of Fork
|
b2
|
mm
|
560/685
|
560/685
|
|
Min.Fork Height
|
h3
|
mm
|
85
|
85
|
|
Ground Clearance at Center of Wheelbase (Min)
|
m1
|
mm
|
30
|
30
|
|
Height of Operating Handle bar(Min./Max)
|
h14
|
mm
|
1000/1550
|
1000/1550
|
|
Turning Radius
|
Wa
|
mm
|
1755/2200
|
1755/2200
|
|
Min. Aisle width for pallets 1000×1200 (Pedal Retracted/Expanded)
|
|
|
2630/3085
|
2630/3085
|
|
Min. Aisle width for pallets 800×1200 (Pedal Retracted/Expanded)
|
|
|
2555/3010
|
2555/3010
|
|
Tyre Type
|
|
|
Polyurethane
|
Polyurethane
|
|
Tyre Size (Front Load Wheel)
|
|
mm
|
φ80x60
|
φ80x60
|
|
Tyre Size (Auxiliary Wheel)
|
|
mm
|
φ115x55
|
φ115x55
|
|
Tyre Size (Driving Wheel)
|
|
mm
|
φ230x75
|
φ230x75
|
|
Wheels Quantity, front/rear (x=Driving Wheels)
|
|
|
4/1x+2
|
4/1x+2
|
|
Traveling Speed (laden/unladen)
|
|
Km/h
|
5/5.5
|
5/5.5
|
|
Lifting Speed(laden/unladen)
|
|
mm/s
|
95/135
|
95/135
|
|
Lowering Speed(laden/unladen)
|
|
mm/s
|
100/130
|
100/130
|
|
Max.Gradient Performance (laden/unladen)
|
|
%
|
5/8
|
5/8
|
|
Service Brake Type
|
|
|
Electromagnetic
|
|
Parking Brake Type
|
|
|
Electromagnetic
|
|
Drive Motor Rating (AC) S2 -60min
|
|
kW
|
1.5
|
1.5
|
|
Lift Motor Rating (DC) S3-15%
|
|
kW
|
3
|
3
|
|
Battery Voltage/Capacity K5
|
|
V/Ah
|
24/210
|
24/210
|
|
Battery Weight
|
|
kg
|
188
|
188
|
|
Controller Brand
|
|
|
CURTIS
|
CURTIS
|
|
Controller Model
|
|
|
1232E
|
1232E
|
|
Sound level atdriver's ear according to EN 12 053
|
|
dB
|
70
|
70
|
Diagrams：
