Brand
|
|
SINOLIFT
|
SINOLIFT
|
|
Model
|
|
Electric Stacker

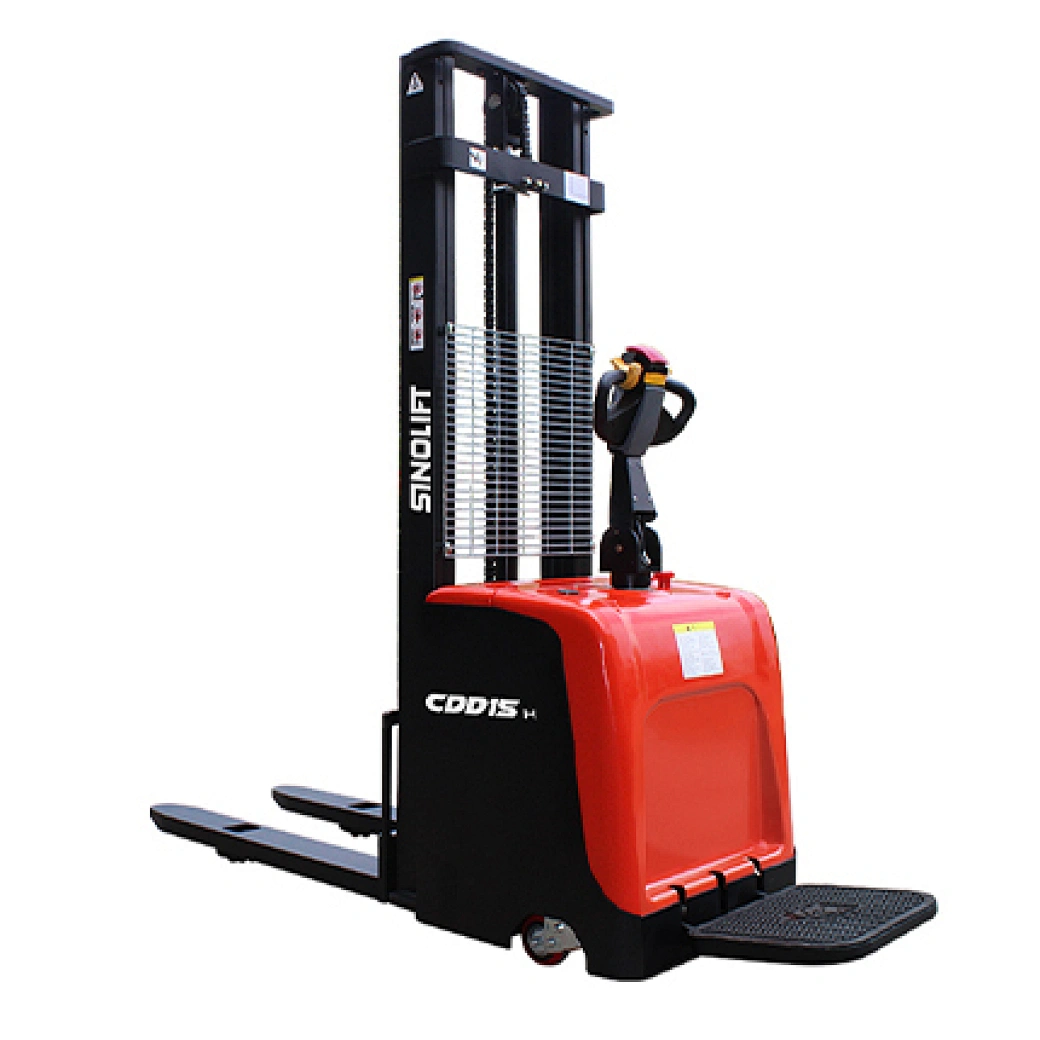

CDD15H
|
Electric Stacker

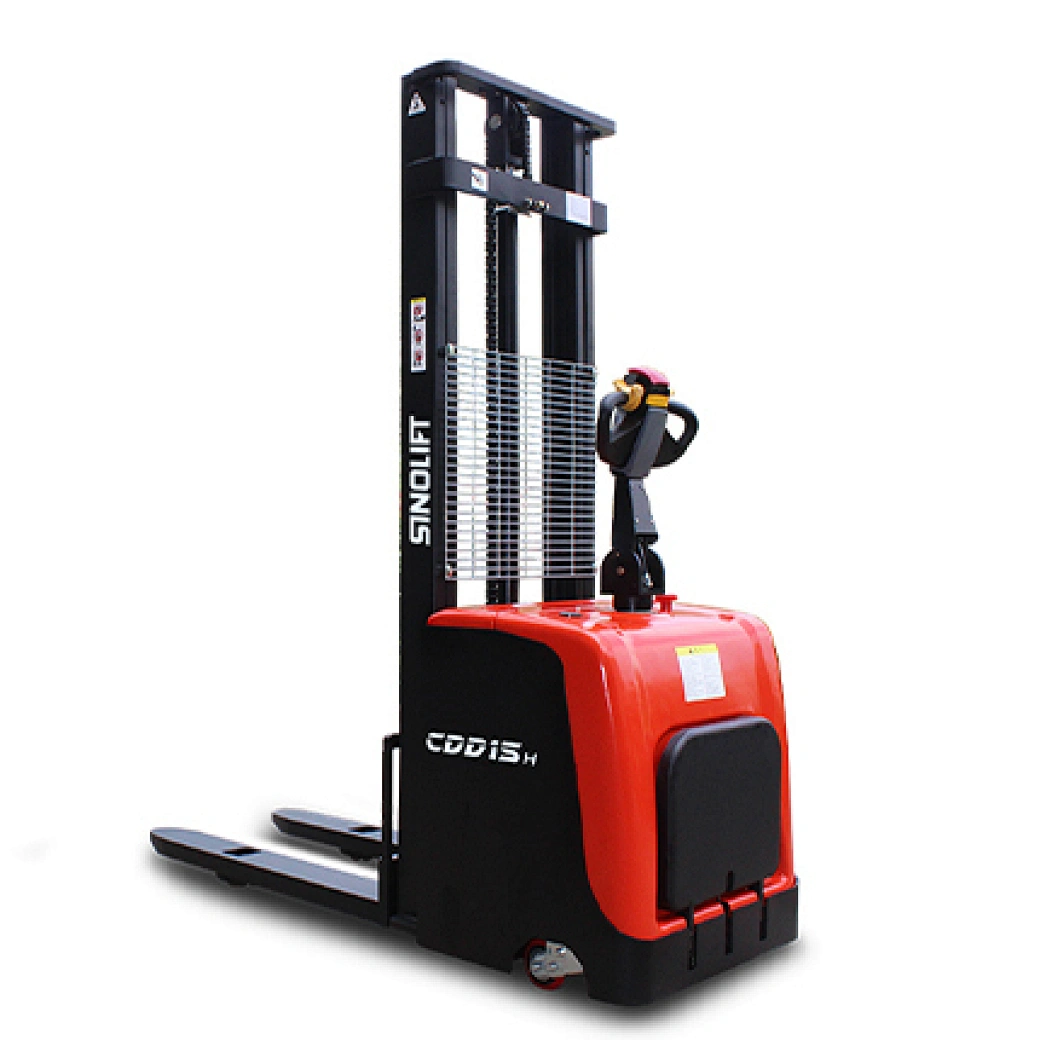

CDD15HE
|
|
Driving Model: Electric(Storage battery), Diesel, Gasoline, Fuel gas
|
|
Electric
|
Electric
|
|
Operating（Manual, Walking, Stand driving, Seat driving ,Order picking）
|
|
Standing Driving
|
Standing Driving
|
|
Rated Capacity
|
Q(kg)
|
1500
|
1500
|
|
Load Center Distance
|
C(mm)
|
500
|
500
|
|
Wheel Base
|
y(mm)
|
1235
|
1235
|
|
Service Weight(with battery)
|
kg
|
780
|
770
|
|
Load weight (laden) Drive side/Load side
|
kg
|
880/1400
|
880/1390
|
|
Load weight (unladen) Drive side/Load side
|
kg
|
570/210
|
560/2100
|
|
Wheels (Rubber, Pneumatic Tyre, Polyurethane Wheel)
|
|
polyurethane
|
polyurethane
|
|
Wheel dimension, front
|
|
Φ250×80
|
Φ250×80
|
|
Wheel dimension, rear
|
|
Φ80×70
|
Φ80×70
|
|
Additional Wheel
|
|
Φ130×50
|
Φ130×50
|
|
Wheel number, Drive wheel/Load Wheel/Balanced wheel (x=drive wheel)
|
|
1x /2/2
|
1x /2/2
|
|
Thread, front
|
b4(mm)
|
525
|
525
|
|
Thread, rear
|
b4(mm)
|
650
|
650
|
|
Retracted height
|
h2(mm)
|
2035
|
2035
|
|
Max. Lift Height
|
h1(mm)
|
3000
|
3000
|
|
Extended Mast Height
|
h4(mm)
|
3505
|
3505
|
|
Height, Fork Lowered
|
h3(mm)
|
85
|
85
|
|
Overall Length (Platform folded/unfolded)
|
L1/L2 (mm)
|
1950/2415
|
1950/2415
|
|
Overall Width
|
W1(mm)
|
790
|
790
|
|
Fork dimension
|
e(mm)
|
160
|
160
|
|
Fork width
|
b2(mm)
|
550/685
|
550/685
|
|
Ground Clearance
|
m1(mm)
|
30
|
30
|
|
Aisle Width, with pallet 1000x1200 crosswise (pedals folded/unfolded)
|
Ast(mm)
|
2445/2880
|
2445/2880
|
|
Aisle Width, with pallet 800x1200 lengthwise (pedals folded/unfolded)
|
Ast(mm)
|
2380/2810
|
2380/2810
|
|
Turning Radius (pedal folded/unfolded)
|
Wa(mm)
|
1535/1970
|
1535/1970
|
|
Traveling speed, full load/no-load
|
Km/h
|
5/5.5
|
3/4
|
|
Lifting speed, full load/no-load
|
mm/s
|
80/125
|
80/125
|
|
Descending speed, full load/no-load
|
m/s
|
150/90
|
150/90
|
|
Max. Gradient, load/unload
|
%
|
5/8
|
3/6
|
|
Traveling Brake
|
|
Electromagnetic brake
|
Electromagnetic brake
|
|
Driving Motor Power S2-60min
|
kW
|
1.5 (AC)
|
0.75 (DC)
|
|
Lifting Motor Power (DC) S3-15%
|
kW
|
2.2
|
2.2
|
|
Battery Voltage/Rated Capacity
|
V/Ah
|
24/100
|
24/100
|
|
Battery Weight
|
Kg
|
65
|
65
|
|
Turing Mode
|
|
Mechanical
|
Mechanical
|
|
Controller Brand
|
|
ZAPI
|
CURTIS
|
|
Controller Model
|
|
AC0
|
1212P
|
|
Noise Level at Operator’s Ear, according to DIN12053
|
dB(A)
|
70
|
70
|
