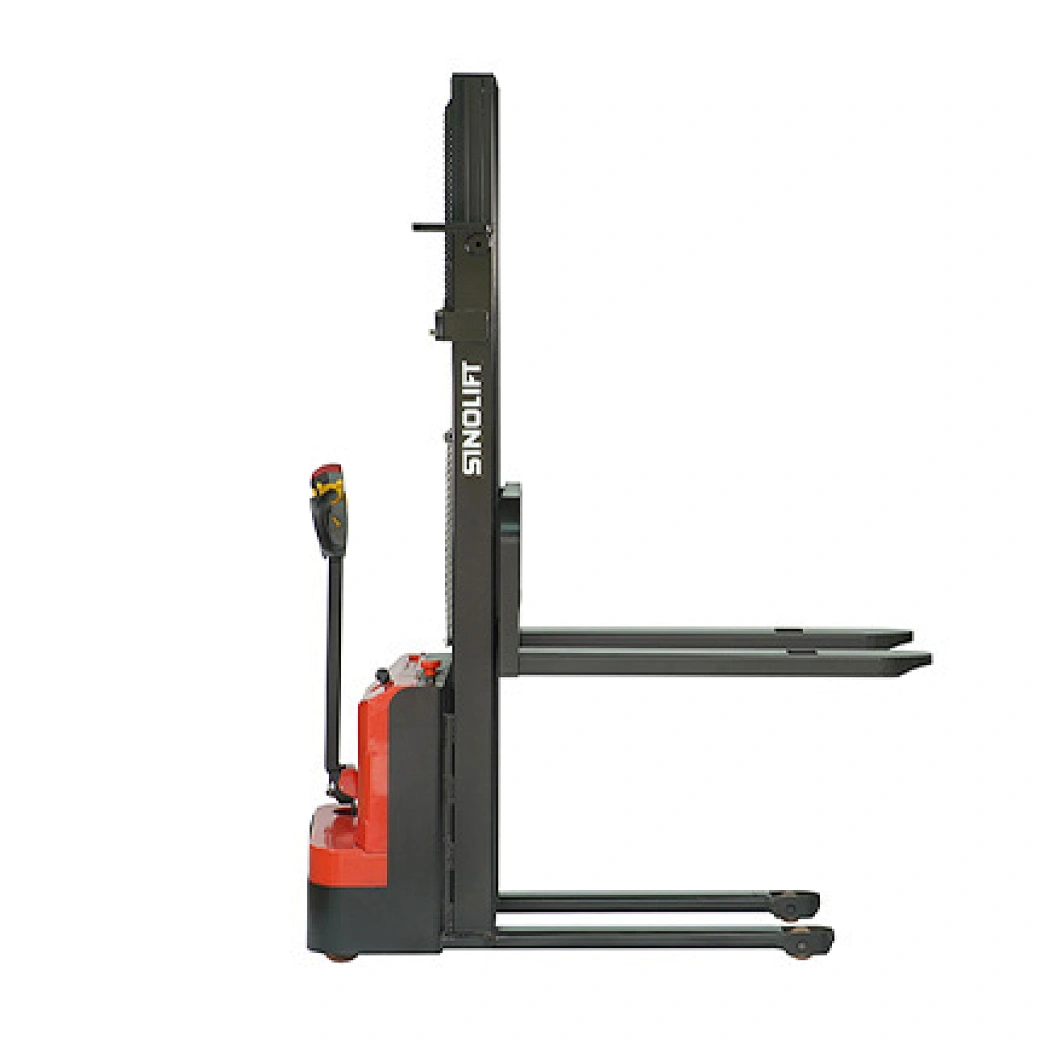

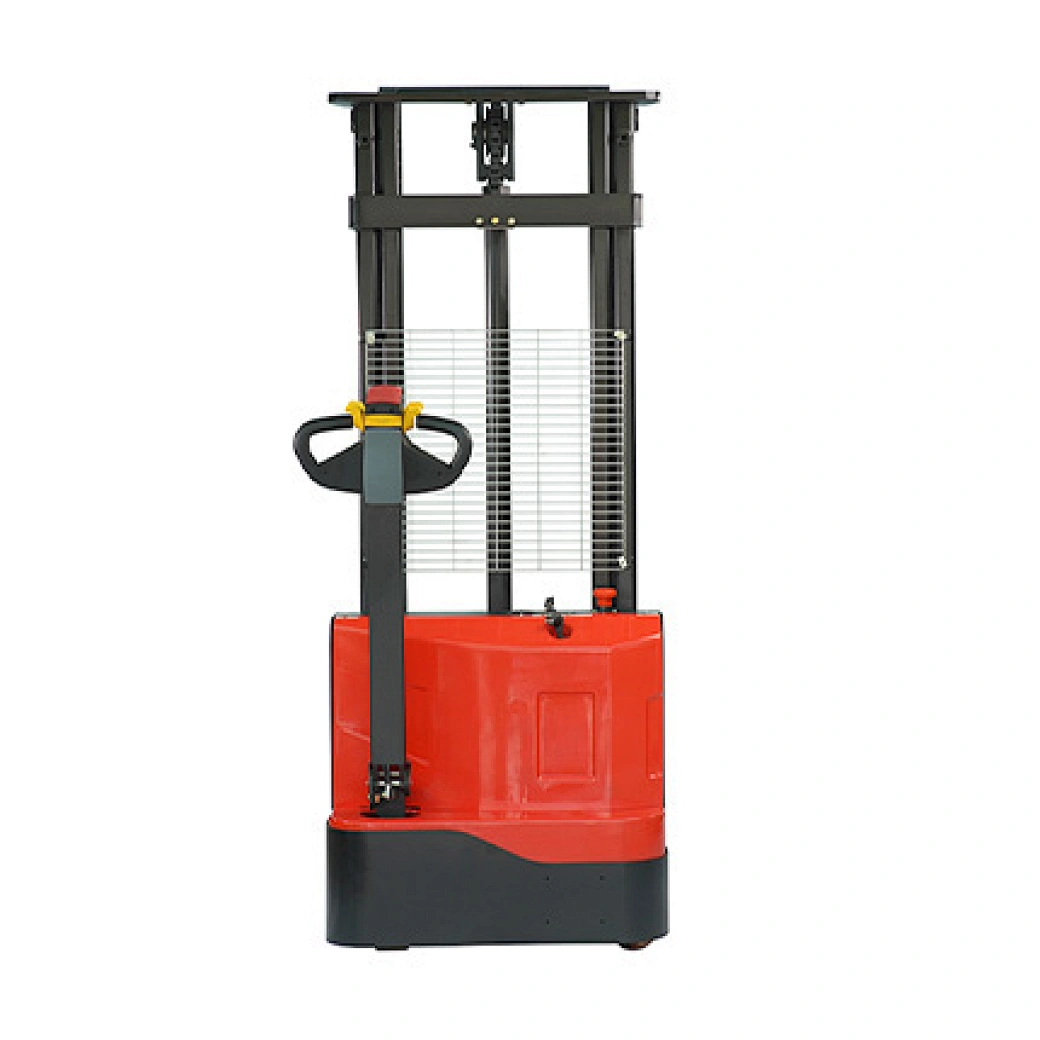

Name:CDD12M CDD15M Walkie Electric Stacker
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
 Hand Pallet Truck
 Electric Pallet Truck
 Electric Stacker
 Reach Truck
 Counter-balanced Eletric Forklift
 Electric Tow Tractor
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
Product Description of Electric Stacker
The innovative and affordable Electric Stacker is great for lifting and stacking in light and heavy warehouses.
Light and heavy duty lifting and stacking in warehouses. The quality manufacturing and clever design, the compact chassis provide a tight turning circle, dynamic handling and excellent travel speed.
Travel speed. Electric Stacker With the operator in mind, they also include a range of features that
provide a high level of comfort and safety to meet the needs of any busy warehouse.
Electric Stacker is Available in a variety of capacity cross-legged models, the M-Series Electric Stacker will increase productivity and promote efficiency in your business.

Specifications:
Model
Electric Stacker
CDD12M
Electric Stacker
CDD15M
Performance Maximum load capacity kg 1200 1500
with load center at Q mm 600 600
Weight (with battery) kg 620 620
Maximum lifting height h1 mm 3000 3000
Travel speed (without load) km/h 3.3 3.3
Travel speed (with load) km/h 3.2 3.2
Lifting speed (without load) mm/s 135 135
Lifting speed (with load) mm/s 100 100
Lowered speed (without load) mm/s 150 150
Lowered speed (with load) mm/s 155 155
Ascend slope ability (without load ) % 5 5
Ascend slope ability (with load ) % 3 3
Overall length of frame L mm 1740 1740
Dimensions Overall width of frame B mm 800 800
Wheelbase Y mm 1215 1215
Fork length mm 1150 1150
Fork outside width B1 mm 560/685 560/685
Fork inside width B2 mm 240/365 240/365
Fork thickness mm 60 60
Min frounf height mm 30 30
Min intersecting aisle width 1000*1200 mm 2265 2265
Fork lowered height S mm 85 85
Minimum turning radius                                    Wa mm 1415 1415
Tire Front wheel mm Ø80*70 Ø80*70
Drive wheel mm 210*70 210*70
Caster wheel mm 115*55 115*55
Wheel material polyurethane
Electrical components Drive motor type DC series motor
Rated output kw 0.75 0.75
Hoist motor type DC series motor
Rated output kw 2.2 2.2
battery Voltag V 24 24
Capacity AH 100 100
Weight kg 35*2 35*2
