Feature:

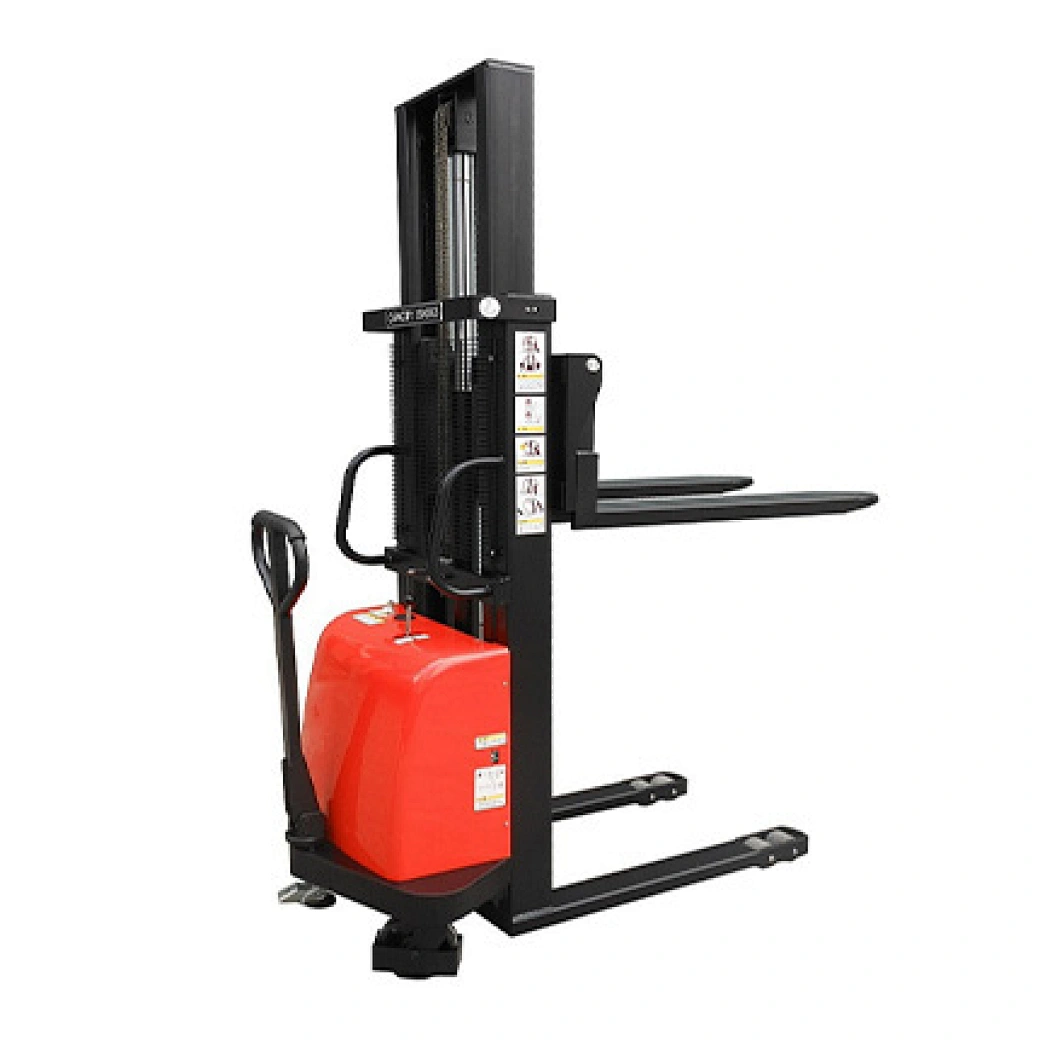

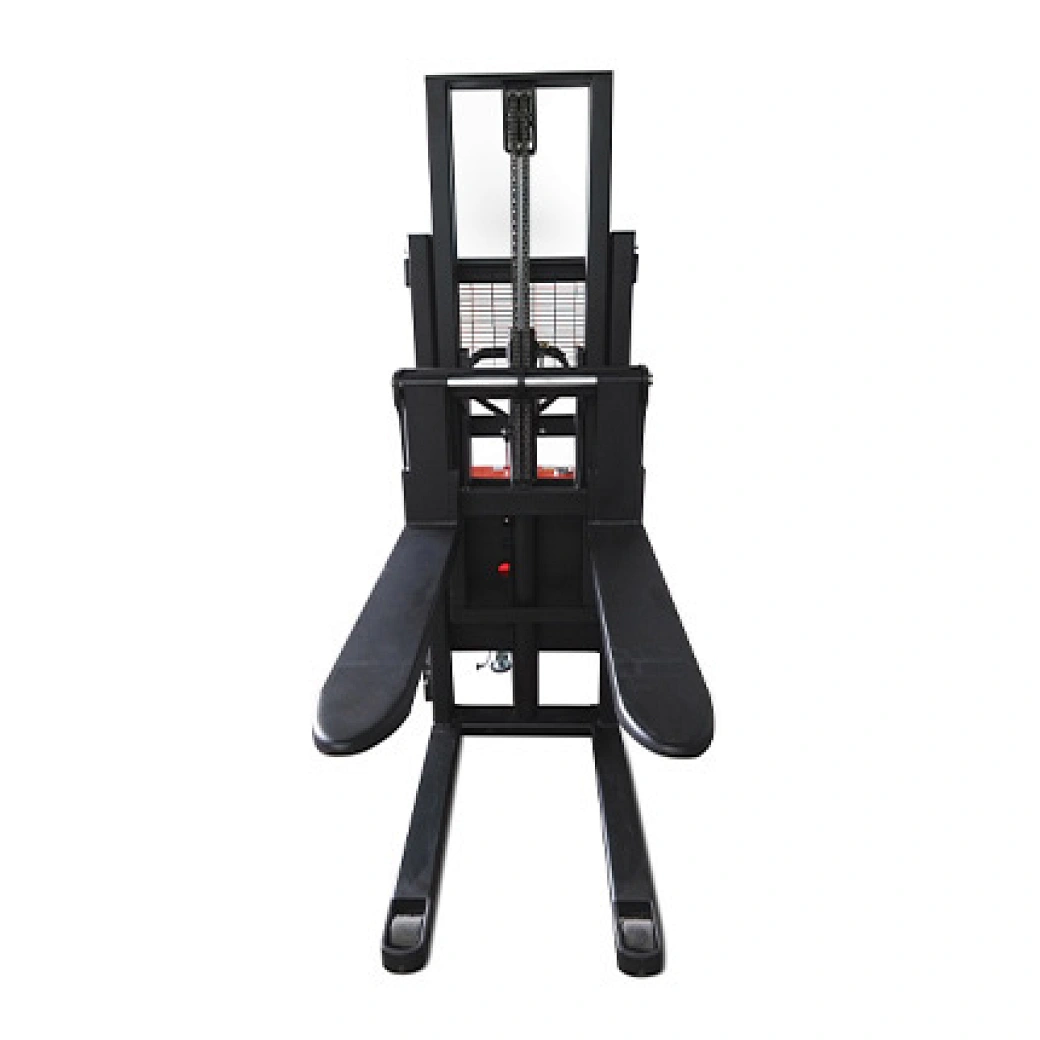

Product Name:DYC Semi-Electric Stacker

Semi-electric stackers take the hard part out of working with stacker trucks, with a fully electric lift the only non-electric function is movement done by manual push/pull. Ideal for more frequent operations where manual lifting can become strenuous and contribute towards repetitive strain injury, the semi-electric stacker takes most of the strains away.

Specifications:

Model No.
Semi-Electric Stacker
DYC10
Semi-Electric Stacker
DYC15
Semi-Electric Stacker
DYC20
Rated Capacity     Q(Kg) 1000 1500 2000
Load Center C(mm) 400 400 400
Lifting Height H(mm) 1600/2000/2500/3000/3500 1600/2000/2500/3000/3500 1600/2000/2500
Min. Fork Height H3(mm) 85 85 85
Fork Length L(mm) 1000 1000 1000
Fork Width (Adjustable) E(mm)  320-685 320-685 320-685
Turngin Radius Wa(mm) 1335 1335 1335
Max. Mast Height with Mast Extended H2(mm) 2165/2532/3032/3532/4032 2165/2532/3032/3532/4032 2165/2532/3032
Closed Height with Mast Lowered H1(mm) 2165/1565/1815/2065/2315 2165/1565/1815/2065/2315 2165/1565/1815
Overall Width  B(mm)  800/900 800/900 800/900
Overall Length  A(mm) 1685 1685 1685
Clearance H4(mm) 30 30 30
Lifting Speed (unladen/laden) mm/s  230/130 230/130 230/130
Lowering Speed (unladen/laden) mm/s  400*500 400*500 400*500
Lifting Motor v/kw   12/1.6 12/1.6 12/1.6
Battery v/ah 12V/120AH 12V/120AH 12V/120AH
Charger v/a  12V/18A 12V/18A 12V/18A
Net Weight kg 460 460 480
