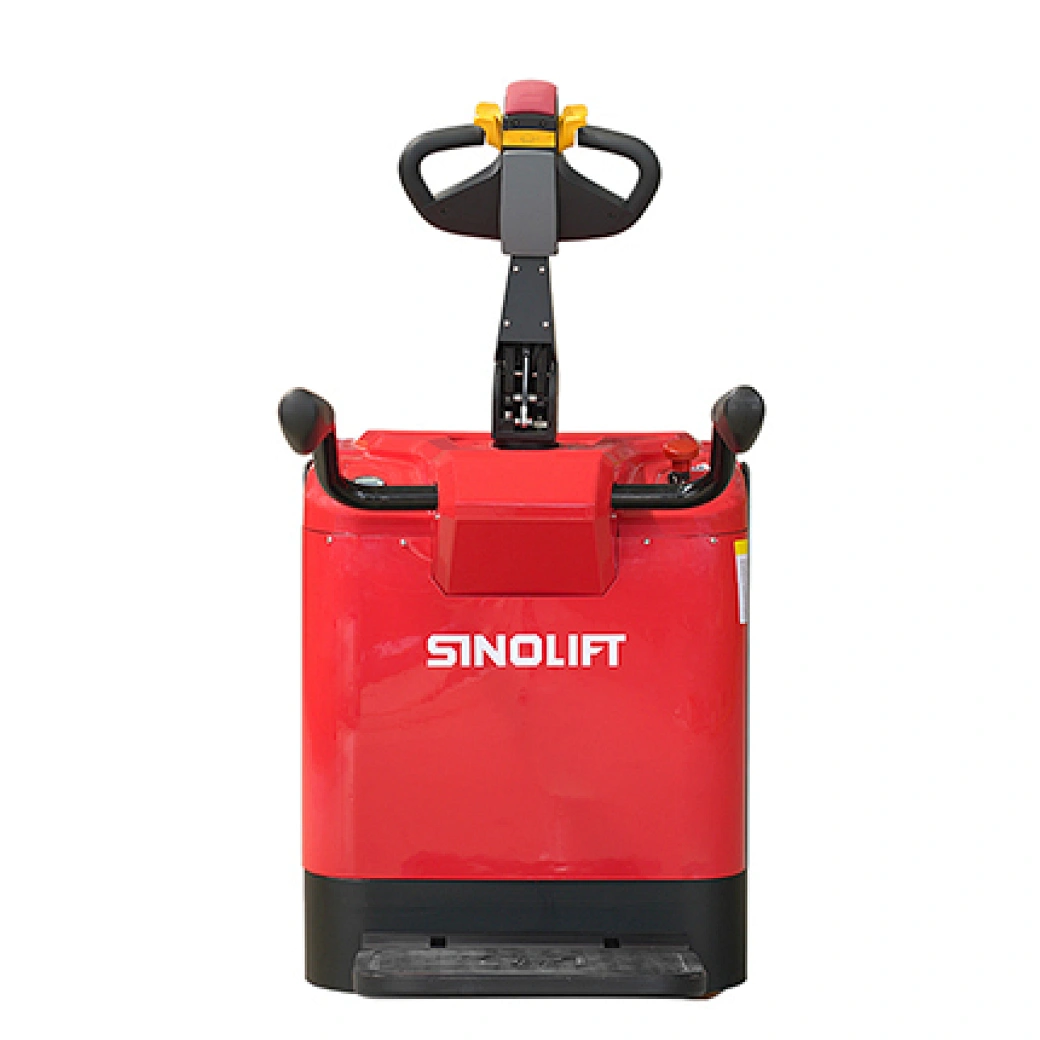

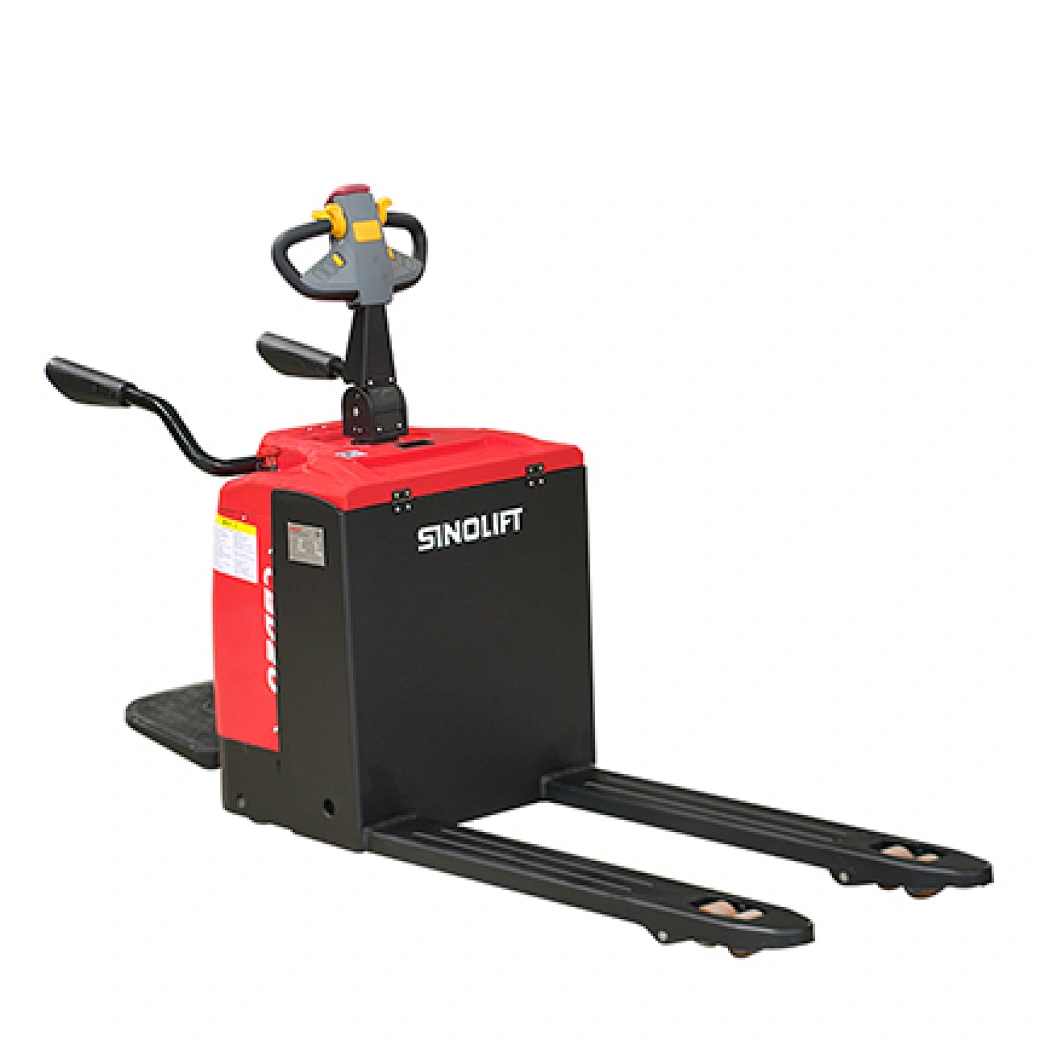

Name：CBD20E CBD25E CBD30E Electric Pallet Truck
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
 Hand Pallet Truck
 Electric Pallet Truck
 Electric Stacker
 Reach Truck
 Counter-balanced Eletric Forklift
 Electric Tow Tractor
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：
Name:Electric Pallet Truck
Features of Electric Pallet Truck:
The new SINOLIFT E-Series 2.0 to 3.0 ton electric pallet trucks are designed to bring superior efficiency to your material handling operations, no matter what the requirements are. Easy to drive, offering perfect visibility and productivity, and with the highest safety standards, these electric pallet trucks benefit from SINOLIFT's tradition of quality and reliability. Electric pallet trucks are easy to handle, extremely manoeuvrable and safe in every way.  Primarily used in warehouse and industrial settings, the Electric Pallet Truck is the most rudimentary form of a forklift. The electric pallet truck is optimally equipped for your warehouse with its lifting capacity of up to 3,300 kgs.
Specifications：
1.1 Manufacturer SINOLIFT
1.2 Model
Electric Pallet Truck
CBD20E
Electric Pallet Truck
CBD25E
Electric Pallet Truck
CBD30E
1.3 Power Type Electric Electric Electric
1.4 Type of Operation Stand-on Stand-on Stand-on
1.5 Load Capacity/Rated Load Q kg 2000 2500 3000
1.6 Load Center Distance C mm 600 600 600
1.7 Wheel base y mm 1400 1480 1480
2.1 Total Weight (with battery) kg 585 790 815
3.2 Overall Width W1 mm 720 790 790
3.3 Fork Dimension l/e/s mm 1200×160×50 1220×185×50 1220×185×50
3.4 Width of Fork b2 mm 540/685 550/685 550/685
3.5 Min. Fork Height h3 mm 85 85 85
3.6 Lift Height h2 mm 205 205 205
3.7 Ground Clearance at Center of Wheelbase m1 mm 35 45 45
3.8 Height of Operating Handlebar (Min./Max.) h14 mm 1000/1450 1000/1450 1000/1450
3.9 Turning Radius(Pedal Retracted/Expanded) Wa mm 1675/2110 1665/2150 1665/2150
4.1 Tyre Type Polyurethane Polyurethane Polyurethane
4.2 Tyre Size (Front) mm φ80x60 φ80x80 φ80x80
4.3 Tyre Size (Auxiliary Wheel) mm φ115x55 φ115x55 φ115x55
4.4 Tyre Size (Driving Wheel) mm φ230x75 φ230x75 φ230x75
5.1 Traveling Speed (Laden/Unladen) km/h 6/6 5/6 5/6
5.2 Lifting Speed (Laden/Unladen) mm/s 20/25 20/25 20/25
5.3 Lowering Speed (Laden/Unladen) mm/s 30/26 30/26 30/26
5.4 Max.Gradient Performance (Laden/Unladen) % 5/10 5/8 5/8
6.1 Drive Motor Rating (AC) S2 60min kW 1.2 1.5 1.5
6.2 Lift Motor Rating (DC) S3 -15% kW 0.8 2.2 2.2
6.3 Battery Voltage/Capacity K5 V/Ah 24/210 24/210 24/240
6.4 Battery Weight kg 188 188 210
7.1 Controller Brand ZAPI CURTIS CURTIS
7.2 Controller Model AC-0 1232E 1232E
