Feature:

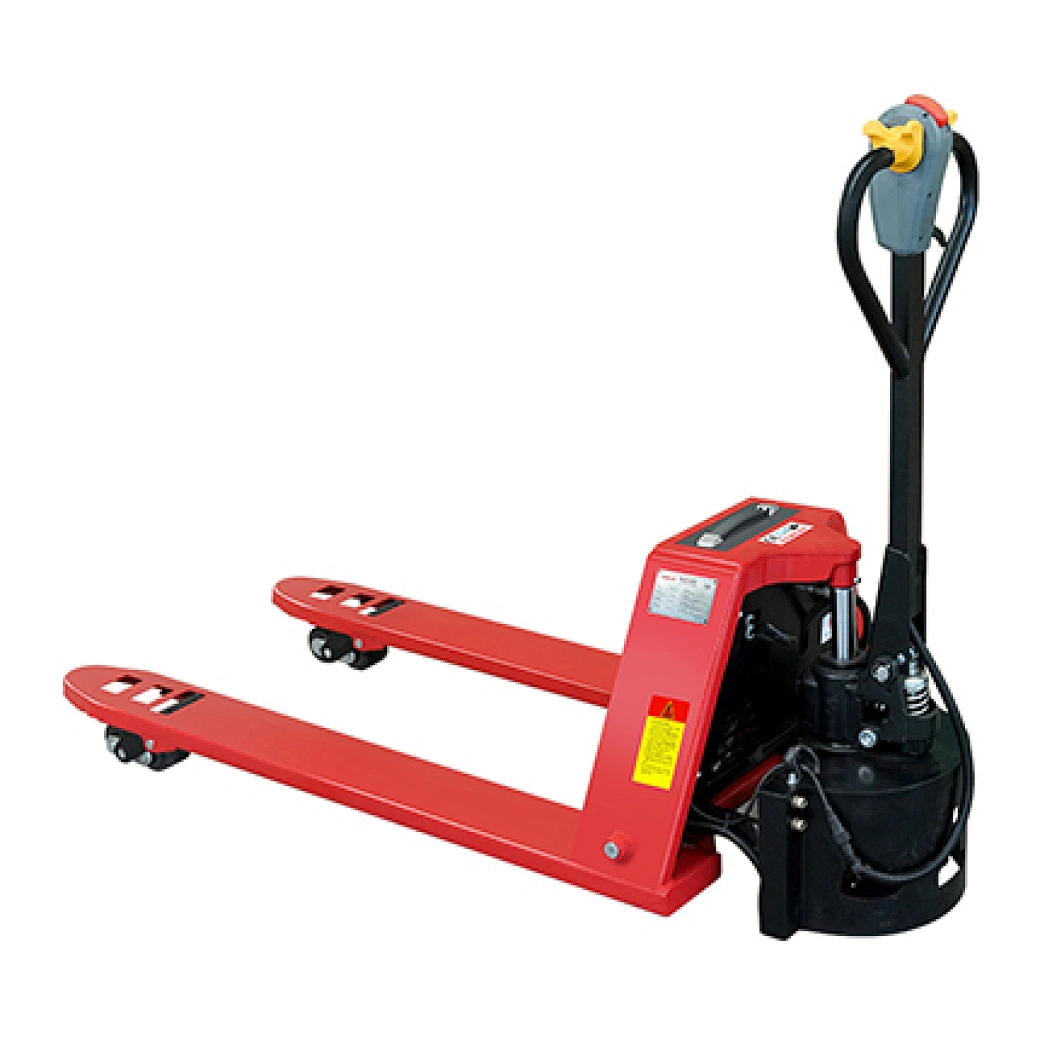

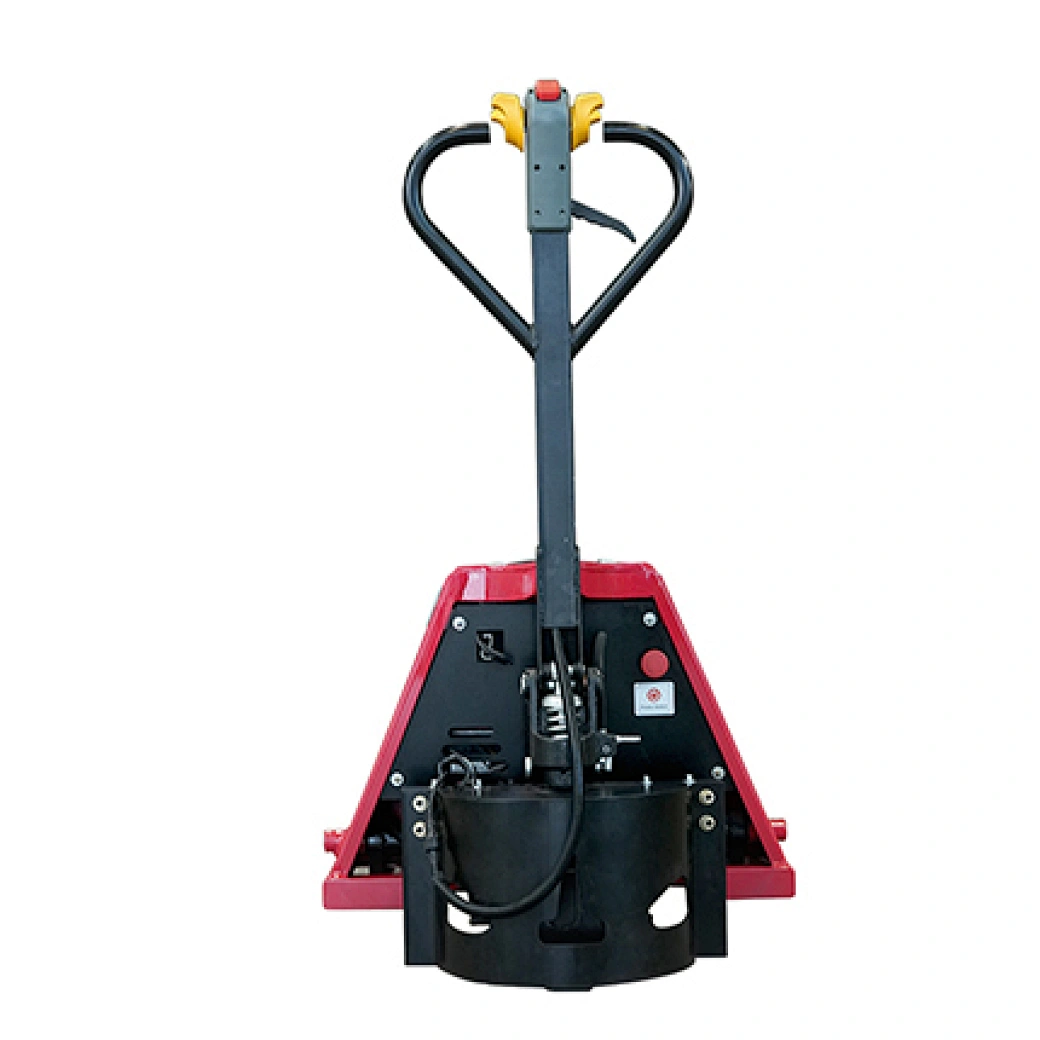

Product Name:CBD20Li 2T Lithium-ion Battery Pallet Truck

Features of CBD20Li  Electric Pallet Truck:

The CBD20Li is an electric pallet truck equipped with a lithium-ion battery. Electric Pallet Truck is ideal for transporting a variety of goods over short distances. Compared to traditional manual pallet trucks, the CBD20Li Electric Pallet Truck uses electricity to lift and move cargo. The fork-to-face length makes the CBD20Li very compact and ideal for use in tight spaces, such as stores and commercial centers.
Specifications:
Manufacturer Brand SINOLIFT SINOLIFT
Model
Electric Pallet Truck
CBD20Li-712
Electric Pallet Truck
CBD20Li-511
Power Type Electric Electric
Type of Operation Walkie Walkie
Steering Mode Mechanical Mechanical
Load Capacity / Rated Load Q kg 2000 2000
Load Center Distance C mm 600 600
Wheel Base y mm 1318 1248
Total Weight (Include Battery) kg 135 130
Overall Length L1 mm 1686 1616
Overall Width W1 mm 685 550
Fork Dimension I/e/s mm 1220 x150x45 1150x150x45
Width of Fork b2 mm 685 550
Min. Fork Height h3 mm 80 80
Lift Height h2 mm 195 195
Ground Clearance at Center of Wheelbase m1 mm 35 35
Height of Operating Handlebar (Max.) h14 mm 1245 1245
Turning Radius Wa mm 1575 1520
Aisle Width for Lengthways (Pallet Size1000*1200) Ast mm 2375 2312
Aisle Width for Lengthways (Pallet Size 800*1200) Ast mm 2205 2181
Tyre Type Polyurethane Polyurethane
Tyre Size (Front) mm p 78x70 p 78 x70
Tyre Size (Driving Wheel) mm p 160x50 p 160x50
Wheels Quantity, Front/Rear(x=Driving Wheel) 2/1x 2/1x
Drive Damping Method / /
Traveling Speed (laden/unladen) Km/h 4.3/4.8 4.3/4.8
Lifting Speed (laden/unladen) mm/s 20/25 20/25
Lowering Speed (laden/unladen) ?>1s ?>1s
Max.Gradient Performance (laden/unladen) % 5/10 5/10
Service Brake Type Electromagnetic Electromagnetic
Parking Brake Type Electromagnetic Electromagnetic
Drive Motor (DC) Kw 0.8 0.8
Lifting Motor (DC) Kw 0.8 0.8
Battery Voltage/Capacity K5 V/Ah 48/16 48/16
Battery Weight kg 6.6 6.6
