Products – Mate Series Lift Trucks

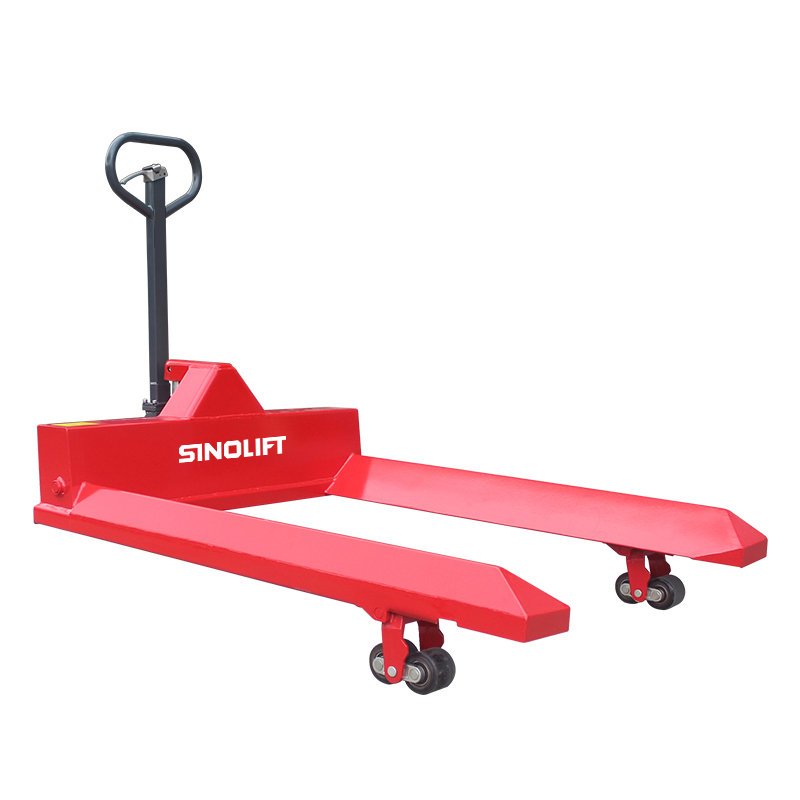

Name:NPR hydraulic roll lift pallet truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
 Hand Pallet Truck
 Electric Pallet Truck
 Electric Stacker
 Reach Truck
 Counter-balanced Eletric Forklift
 Electric Tow Tractor
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

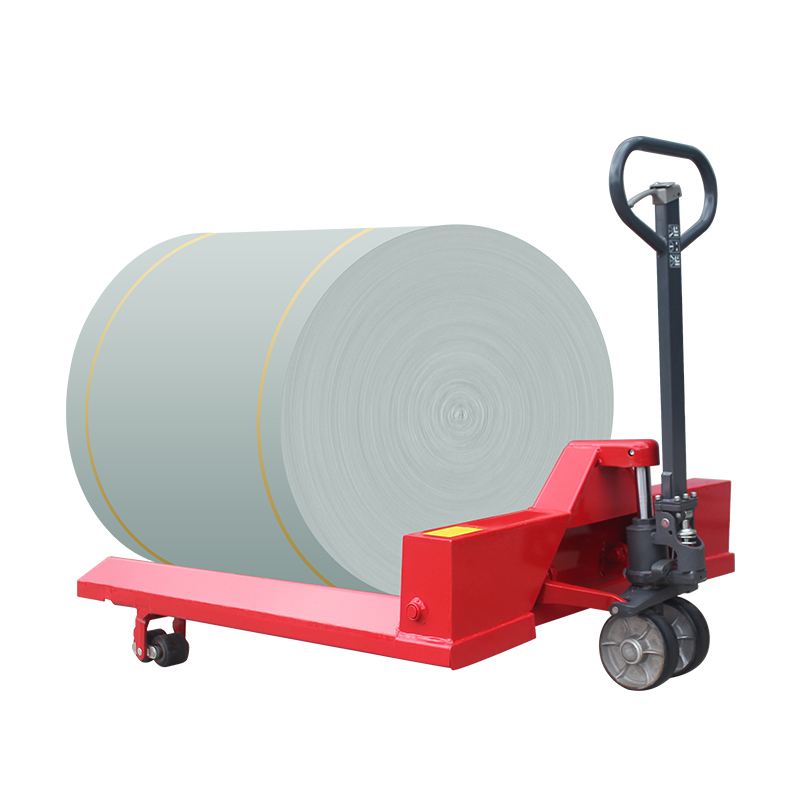

Features of NPR hydraulic roll lift pallet truck
The unique fork of SINOLIFT NPR hydraulic roll lift pallet truck  for roll or reel handing dedicated to handling tubular goods can effectively prevent goods from rolling. The length and the width of  truck can also be designed according to the diameter and the length of the drum beam. In general, triangle steel plate is added on the basis of plane fork, so that it is in line with the arc of the warp axis, so as to achieve the effect of easy handling when the warp axis is on the ground.
Specifications:
Model NPR20S NPR20M NPR20L NPR20SL NPR20SL( I ) NPR20SL( II )
Load Capacity (kg) 2000 2000 2000 2000 2000 2000
Applicable Roll Diameter (mm) Φ400-600 Φ600-800 Φ800-1200 Φ1200-1600 Φ1450-2350 Φ1900-3200
Fork Width (mm) 760 850 1000 1150 1200 1350
Steering Rear Wheel (mm) Φ200×50 or Φ180×50 Φ200×50 or Φ180×50 Φ200×50 or Φ180×50 Φ200×50 or Φ180×50 Φ200×50 or Φ180×50 Φ200×50 or Φ180×50
Load Front Wheel Single(mm) Φ78x100 Φ78x100 Φ78x100 Φ78x100 Φ78x100 Φ78x100
Load Front Wheel (Double) (mm) Φ78x70 Φ78x70 Φ78x70 Φ78x70 Φ78x70 Φ78x70
Fork Length (mm) 800/900/1000/1100/1150/1220--(up to 1500 (customizable)
Self Weight (kg) 130 150 155 150 220 240
Previous:5-ton heavy load capacity NPV50 pallet truckNext:CBD20Li Electric Pallet TruckReturn
