Feature:

Product Name

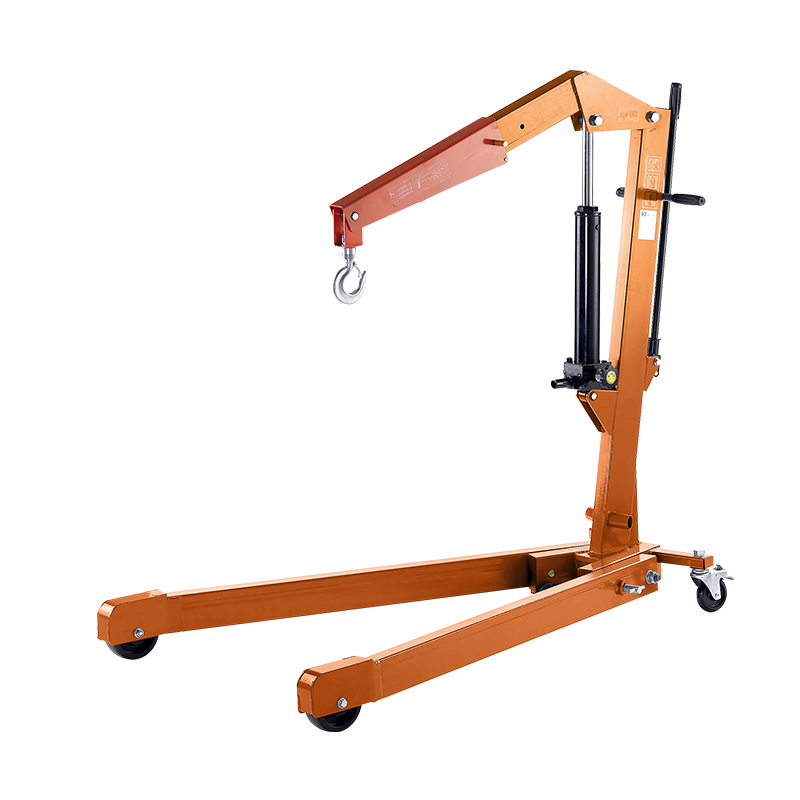

SC Series Compact Mobile Crane (foldable)

  • Wide Range of Applications

Ideal for dock loading, warehouse transport, construction projects, hydraulic engineering, factory buildings, and cargo handling.

  • Premium Quality Craftsmanship

Heavy-duty design, high-quality lifting cylinder, time-saving & effort-saving, 3-position adjustable boom, forged rotating hook, durable & foldable, space-saving.

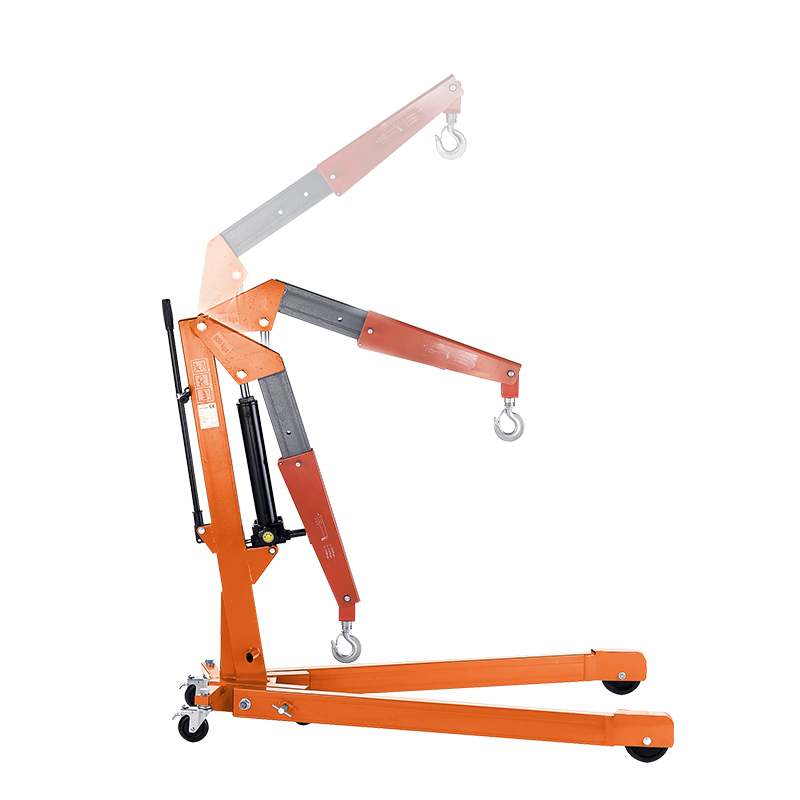

  • 3-Position Adjustable/Longer Boom

Adapt to Various Working Conditions - Adjust to Your Needs

  • Forged Heavy-Duty Hook

Forged heavy-duty hook - high load capacity, durable & deformation-resistant, equipped with safety latch for secure operation. 360° rotating design for easy load handling, compatible with multiple attachments.

  • Sturdy and Durable, Non-Foldable

Robust structure, compact design, providing stable and reliable lifting performance, suitable for scenarios requiring frequent movement and heavy-duty operations.

Specifications:


Parameter Name Unit SA500 SA1000
Rated Load Capacity Position 1 P1 (Kg) 500 1000
Rated Load Capacity Position 2 P2 (Kg) 450 900
Rated Load Capacity Position 3 P3 (Kg) 400 800
Rated Load Capacity Position 4 P4 (Kg) 350 700
Dimension L1 (Boom P4 Position Horizontal Arm Length) mm 1360 1360
Dimension L2 (Boom P1 Position Horizontal Arm Length) mm 1060 1060
Dimension L3 (Leg Length) mm 1395 1395
Dimension H1 (Leg Height) mm 155 155
Dimension H2 (Boom P4 Position Lowered Ground Clearance) mm 470 470
Dimension H3 (Boom P1 Position Lowered Ground Clearance) mm 705 705
Dimension H4 (Boom P1 Position Raised Ground Clearance) mm 2225 2225
Dimension H5 (Boom P4 Position Raised Ground Clearance) mm 2475 2475
Dimension H (Chassis Horizontal Height) mm 1595 1595
Dimension B2 (Leg Width) mm 840 840
Dimension B3 (Leg Width) mm 1000 1000
Net Weight Kg 81 103
