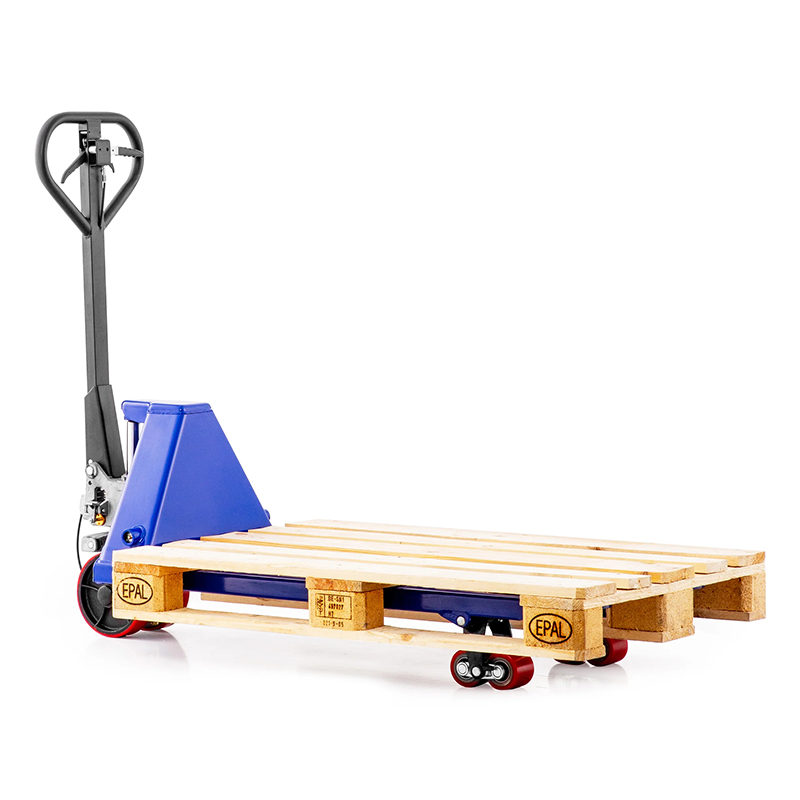

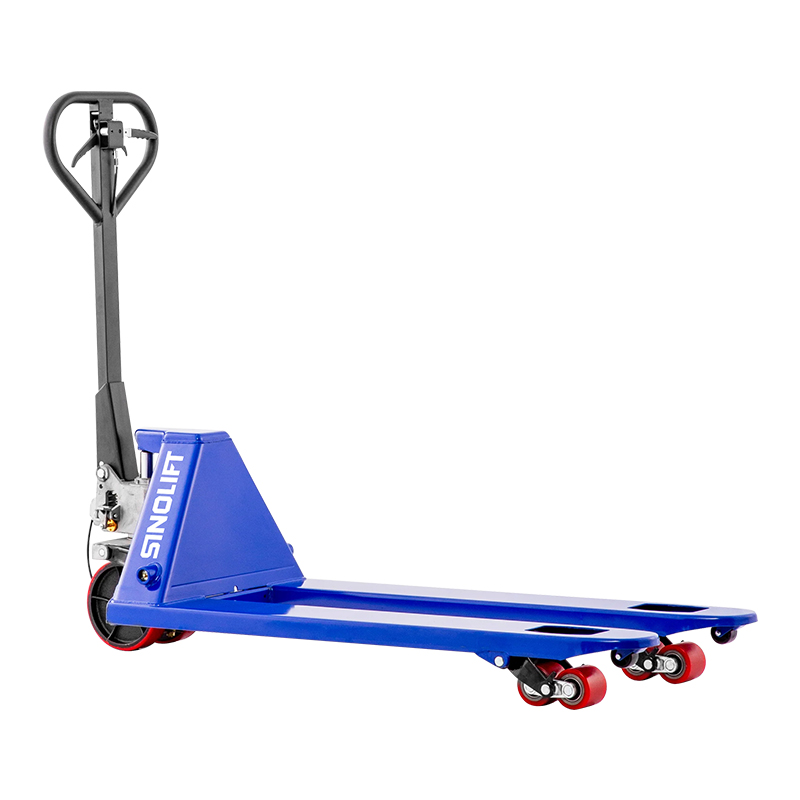

Name:CBY-P Series Hydraulic Pallet Truck with Hand Brake
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
 Hand Pallet Truck
 High Lift Scissors Pallet Truck
 Mechanical Pallet Truck
 Lithium Battery Operated Pallet Truck
 Acid Battery Operated Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Product Name: CBY-P Series Hydraulic Pallet Truck with Hand Brake

Reinforced forks that resist deformation

Forks made from high-strength alloy steel platesLightweight yet high load-bearing capacity

Hydraulic lifting saves time and effort

Ergonomically designed hydraulic lift for transporting goodsTime-saving and effectively improves work efficiency

Say goodbye to oil leaks- sealed oil cylinder

Hydraulic technology effectively prevents oi leakage anddelivers excellent performance.Compact and economical pump body- easy to maintain,stable, and reliable.

Ergonomic handle Long-lasting push-pull actionwithout hand fatigue

Enhances user comfort, reduces operating effort, boostswork efficiency, and offers controllable lowering speed forsafer use

Convenient Auxiliary Wheels Effortlessly tackle inclines and declines

Assists movement on slopes up to 30° to preventground contact or stalling, enhancing effciency andsaving effort

Specifications:
Technical Parameters/Model CBY20P CBY25P
Rated Load) (kg) 2000 2500
Fork Lowest Height (mm) 85 85
Fork Maximum Height (mm) 200 200
Height Without Handle (mm) 431.5 431.5
Guide Wheel Size (mm) Φ200×50 Φ200×50
Load Wheel Size (mm) Φ80×70 Φ80×70
Fork Width (mm) 520/550/685 520/550/685
Fork Length (mm) 1150/1220 1150/1220
Self Weight (kg) 75 85
