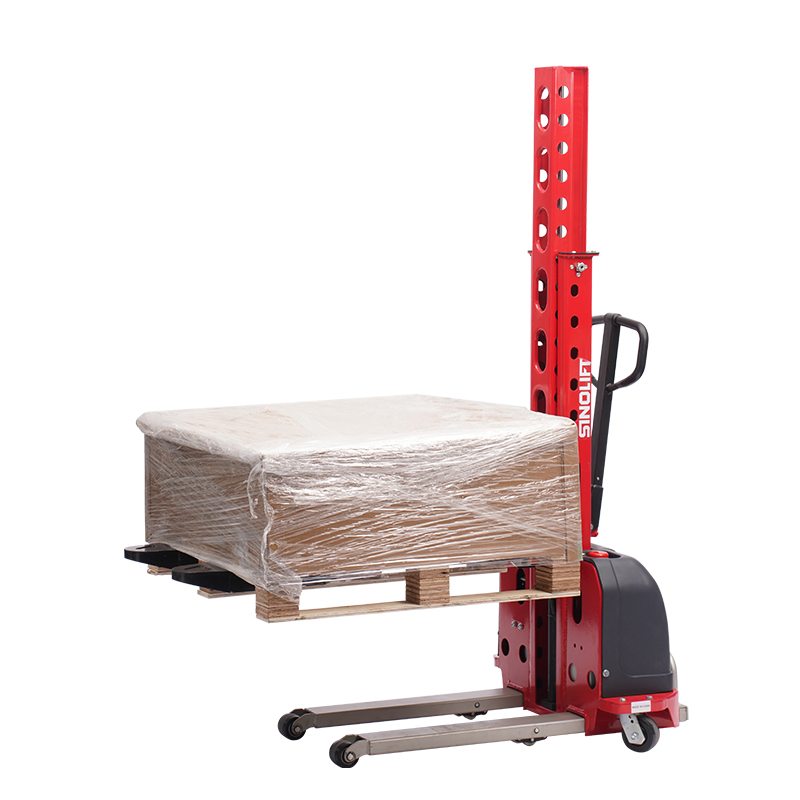

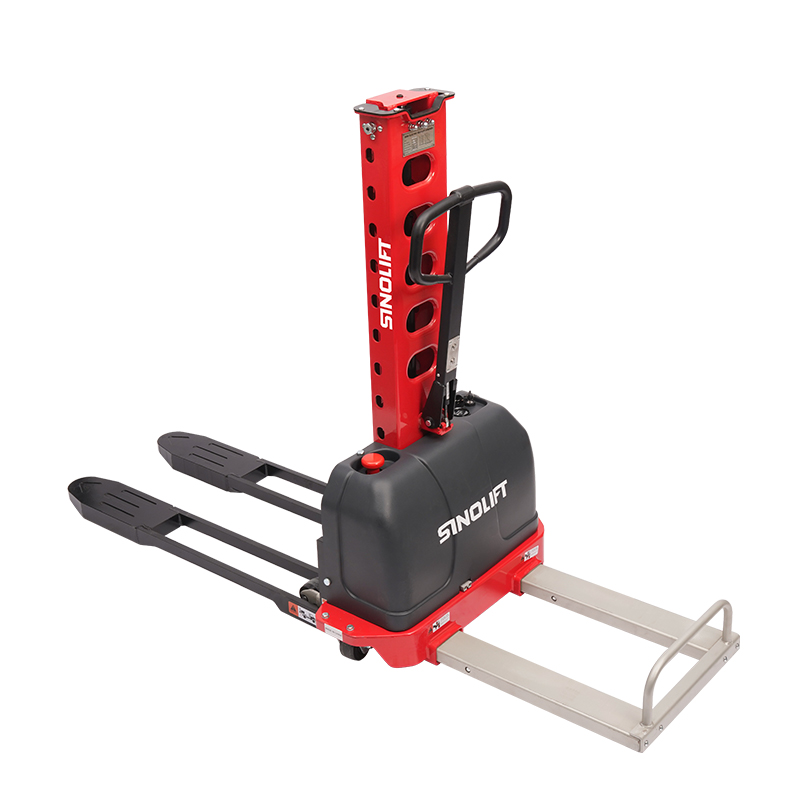

Name:SDYG series Semi-electric Self Loading Stacker
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
 Mini Manual Hydraulic Stacker
 Mini Manual Winch Stacker
 Semi-Electric Hydraulic Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

SDYG series Semi-electric Self Loading Stacker

Features of Self Loading Lifter

1. Self Loading Lifter with Steering chain auxiliary device.

2. Self Loading Lifter with The foot brake, more stable,

3. Self Loading Lifter with Sealed batteries free of maintenance safe operation and less pollution.

4. Self Loading Lifter with Explosion-proof valve design, down more stable and reliable.

Specifications:
Model
 Self Loading Lifter
SSL
Rated Capacity kg 500
Load Center mm 400
Wheel Base mm 860
Front Wheel Distance mm 380
Rear Track mm 670
Min. Fork Height mm 90
Max. Fork Height mm 1300
Height of Frame (Fork Down) mm 1400
The Lifting Height of Whole (After Tape File Shelf) mm 2900
Min. Right Angle Channel Width mm 1150
Steering Rear Wheel mm 100x50
Loading Wheel  mm 70x60
Guide Wheel  mm 40x26
Overall Length mm 1600
Overall Width mm 790
Fork Size mm 1150x155x60
Fork Width mm 535
Turning Radius mm 1120
Lifting Speed mm/s 80
Descent Speed mm/s 80
Lifting Motor Power V/Kw 12/0.8
Battery  V/Ah 12/33
Type of Driving  Pedestrain
Material of Wheel  Nylon/ PU
Net Weight kg 195
