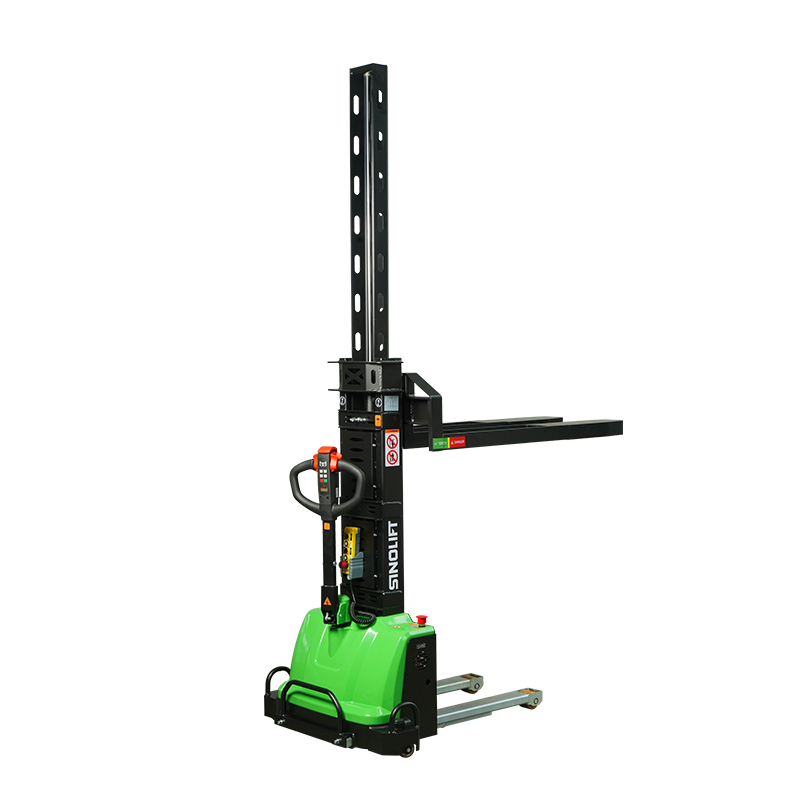

Name:SES Series (SES10 SES12 SES15) Self Load Stacker
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
 Mini Manual Hydraulic Stacker
 Mini Manual Winch Stacker
 Semi-Electric Hydraulic Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Product Features

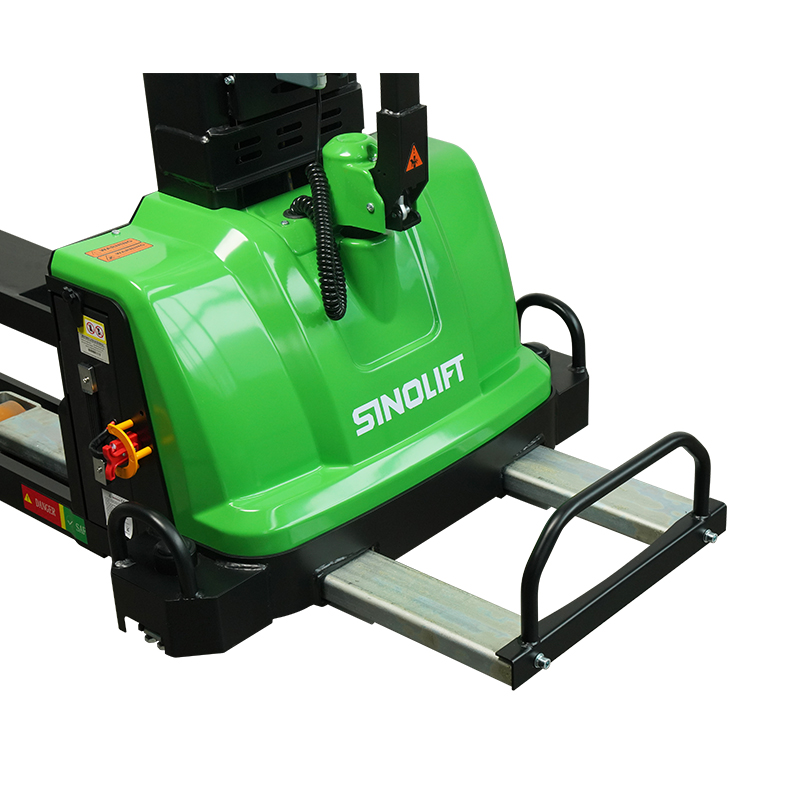

The design of the SES10/SES12/SES15 self-loading trucks is aimed at facilitating freight loading and improving warehouse operation efficiency. They make loading onto vehicles more convenient and efficient.

With load capacities of 1 ton, 1.2 tons, and 1.5 tons, and lift heights ranging from 90 cm to 160 cm, the compact and lightweight design is suitable for various application scenarios.

1. Electric Power System: The stacker is powered by a robust and environmentally friendly electric power system, reducing carbon emissions and operating costs.

2. Self-Loading Mechanism: Equipped with a self-loading mechanism, the stacker can autonomously load and unload materials, minimizing manual intervention and enhancing safety.

3. High Efficiency: Designed to handle heavy loads with precision, the stacker improves overall productivity in the warehouse by speeding up the material

4. User-Friendly Interface: The stacker includes an intuitive interface that allows operators to easily control and monitor the equipment, ensuring smooth operations.

5. Safety Features: Integrated safety features, such as automatic braking and load stability systems, ensure the safety of both the operators and the materials being handled.

6. Compact Design: The stacker’s compact design allows it to operate in confined spaces, making it ideal for use in various industrial environments.

Specifications:
Manufactuer      SINOLIFT
Model No SES12 SES15
Power Type Electric Electric
Drive Type Pedestrain Pedestrain
Capacity                                         Q kg 1200 1500
Load Centre                                   c mm 400 400
Material of Wheel Polyurethane Polyurethane
Size of Drive wheel mm Φ190x70 Φ190x70
Size of balance roller mm Φ75X35 Φ75X35
Size of load roller mm Φ80X70 Φ80X70
Track Width, Drive side b1 mm 780 780
Wheelbase y mm 980 980
Lifti height                                  h3 mm 900/1100/1300/1500/1600 900/1100/1300/1500/1600
Retracted height                    h1 mm 1250/1450/1650/1850/1950 1250/1450/1650/1850/1950
Vehicle Height during operation             h4 mm 2080/2480/2880/3280/3480 2080/2480/2880/3280/3480
Min Fork Height                             h13 mm 85 85
Overall Length                                 l1 mm 1730 1730
Overall width b1 mm 920 920
Fork Size                                          s/e/l mm 70/195/1200 70/195/1201
Fork Width                                        b5 mm 560/600 560/600
Ground Clearance                            m2 mm 10 10
Gradeability loaden/unloaden       %  3/5 3/5
Brake Electromagnetic Brake Electromagnetic Brake
Power of Drive Motor                         kw 0.75 0.75
Power of Lifting Motor                      kw 2 2
Battery capacity (Lithium)                               V/Ah 48v/25ah (30AH As Option) 48v/25ah (31AH As Option)
Weight of battery                              kg 30 30
Steering Power Mechanical Mechanical
